Extron SW2 USB 60-952-02

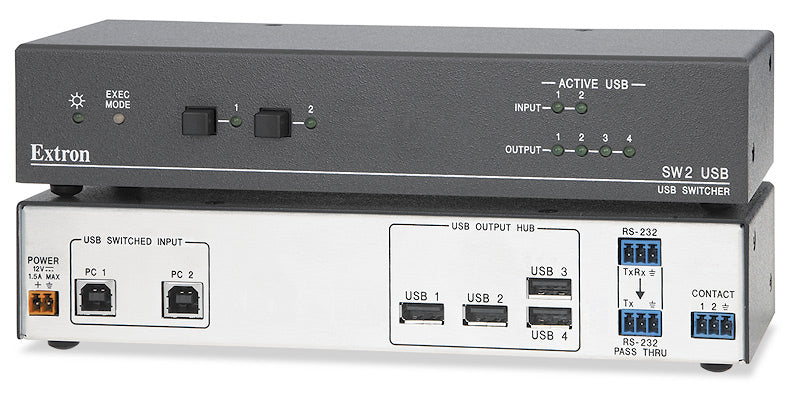

Extron SW2 USB 2-Input USB 2.0 Peripheral Switcher 60-952-02

Extron SW2 USB 2-Input USB 2.0 Peripheral Switcher 60-952-02

Manufacturer: Extron

Type: Switchers

Extron SW2 USB 2-Input USB Switcher

  • • 2-input USB 2.0 switcher sharing one 4-port hub between two hosts
  • • Handles low, full, and high speed USB 2.0 devices to 480 Mbps
  • • Front panel, RS-232, or contact closure input selection
  • • RS-232 pass-through keeps existing control systems in the loop
  • • 1U half-rack metal chassis weighs only 2.0 lbs
  • • 3-year product warranty, 7-year Everlast power supply warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-SW2USB-6095202

Details

Extron SW2 USB (part number 60-952-02) is the same 2-input USB 2.0 switching platform as the SW2 USB 60-952-01, offered under a distinct Extron part number for stock and configuration tracking.

Two host computers share one 4-port USB hub, with switching triggered from the front panel, RS-232, or a contact closure. A lockout mode blocks accidental input changes once a session is live, while RS-232 pass-through keeps the unit transparent to any AV control processor already wired into the rack.

Key Capabilities

  • 2 USB type B host inputs feeding a shared 4-port USB 2.0 hub
  • USB 2.0 speeds up to 480 Mbps (low, full, and high speed devices)
  • 500 mA of shared power delivered across the four output ports
  • Dual RS-232 ports: one for control, one for pass-through
  • Contact closure switching input for external control systems
  • Compact 1U half-rack enclosure weighing 2.0 lbs

Where It Is Used

Fits classrooms, judicial facilities, and testing centers where two workstations need controlled, momentary access to a shared USB peripheral bank such as a signature pad or scanner.

Specifications at a Glance

  • 2 USB type B inputs / 4 USB type A outputs
  • USB 2.0 compatible, up to 480 Mbps
  • External 12 VDC, 18 W power supply
  • 1.6" H x 8.6" W x 3.0" D half-rack enclosure
  • 3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron SW2USB, SW2-USB, part number 6095202.
