Part number 60-1985-01 — Two Input 8K HDMI Switcher

The 60-1985-01 routes two HDMI sources to one display and extracts two-channel analog audio from the selected signal. It accepts video up to 7680x4320 at 60 Hz or 3840x2160 at 120 Hz with data rates reaching 48 Gbps, along with 12-bit deep color, dynamic HDR, and HD lossless audio. EDID Minder Plus sustains continuous communication between connected devices while Key Minder verifies HDCP 2.3 compliance for uninterrupted switching. RS-232, front panel, and auto-input switching provide control options.

Conference rooms, boardrooms, and huddle spaces use this switcher where 5120x2880 at 60 Hz or 21:9 ultra-wide formats appear. The unit measures 9.5 in (24.1 cm) wide, runs convection cooled, and operates from +32 to +122 °F with storage to -40 to +158 °F at 10% to 90% noncondensing humidity. RS-232 communication follows 9600 baud, 8 data bits, 1 stop bit, no parity. Crosstalk stays at or below -80 dB at 1 kHz.

Specifications

Part Number: 60-1985-01

Manufacturer: Extron

Condition: New

30 Hz: 4:4:4

3840x2160: 120 Hz

5120x2880: 60 Hz

Height: 9.5" (24.1 cm)

7680x4320: 60 Hz

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Chroma sampling1: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, or 12 bits – subject to the max data rate

Color bit depth1: 8, 10, or 12 bits per color

Connectors: 2 female HDMI type A

Cooling: Convection, no vents

Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

Device and power supply: TBD watts

EDID emulation: 128 - 512 byte EDID support (1 - 4 blocks)

Enclosure dimensions: 1.0" H x 4.3" W x 6.0" D (1" high, quarter rack wide) (25 mm H x 109 mm W x 152 mm D) (Depth excludes connectors.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Formats: RGB and YCbCr digital video

Frame rate1: 24, 25, 30, 50, 60, 120, or 240 fps

Frequency response: Line out 20 Hz to 20 kHz, ±0.5 dB

Full load: TBD watts

Furniture mount: Yes, with optional under-desk mounting kit or through-desk mounting kit

Gain: Unbalanced output -6 dB, balanced output

Gain error: ± 0.5 dB channel to channel

HDR: HDR10, HDR10+, and Dolby Vision

Horizontal frequency: 15 kHz to 100 kHz

Impedance: 50 ohms unbalanced, 100 ohms balanced

Max. video data rate: 48 Gbps

Maximum data rate: 48 Gbps (12 Gbps per color)

Maximum level (Hi-Z): >+21 dBu balanced, >+15 dBu, unbalanced

Maximum pixel clock: 1.2 GHz

Number/signal type: 2 HDMI or DVI-D* (HDCP compliant)

Output volume range: 0 to -100 dB in 0.1 dB steps

Peripheral device power: 250 mA per HDMI output

Pin configuration: 1 = Tx, 2 = Rx, 3 = GND

Power for active cables: 1.25 watts total power for the HDMI port

Power save mode: TBD watts

Power supply: External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A

Product warranty: 3 years parts and labor

Product weight: 0.53 lbs (0.24 kg)

Program control: Extron Product Software Configuration (PCS) program for Windows® Extron Simple Instruction Set™ (SIS™)

Rack mount: Yes, with optional rack shelf kit

Regulatory compliance: CE, c-UL, UL, PSE, RoHs, and WEEE

Resolution: Refresh Rate

Resolution and Refresh Rate: Chroma Sampling

S/N: ≤-90 dB @ max balanced output, unweighted

SMPTE: Up to 1080p @ 240 Hz or 8K @ 60 Hz (4:2:0 chroma sampling)

Serial control connector: (1) 3.5 mm, 3 pole captive screw (rear panel)

Serial control port: 1 bidirectional RS-232

Signal Type: HDMI 2.1, HDCP 2.3

Source formats — HDMI: LPCM up to 8 Ch, Dolby Atmos®, Dolby TrueHD®, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital, DTS-HD Master AudioTM, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, Analog stereo

Standards: DVI 1.0, HDMI 2.1, HDCP 1.x and 2.3

Stereo channel separation: >80 dB @ 1 kHz

THD + Noise: <0.1%, 20 Hz to 20 kHz at nominal level

Thermal dissipation: TBD BTU/hr

USB control port: 1 front panel USB-C

USB standards: USB 2.0, high speed

Ultra Wide & 5K: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x1600 5120x1080, 5120x1440, 5120x2160, 5120x2560, 5120x2880

VESA: 640x480 to 7680x4320

Vertical frequency: 24 Hz to 75 Hz

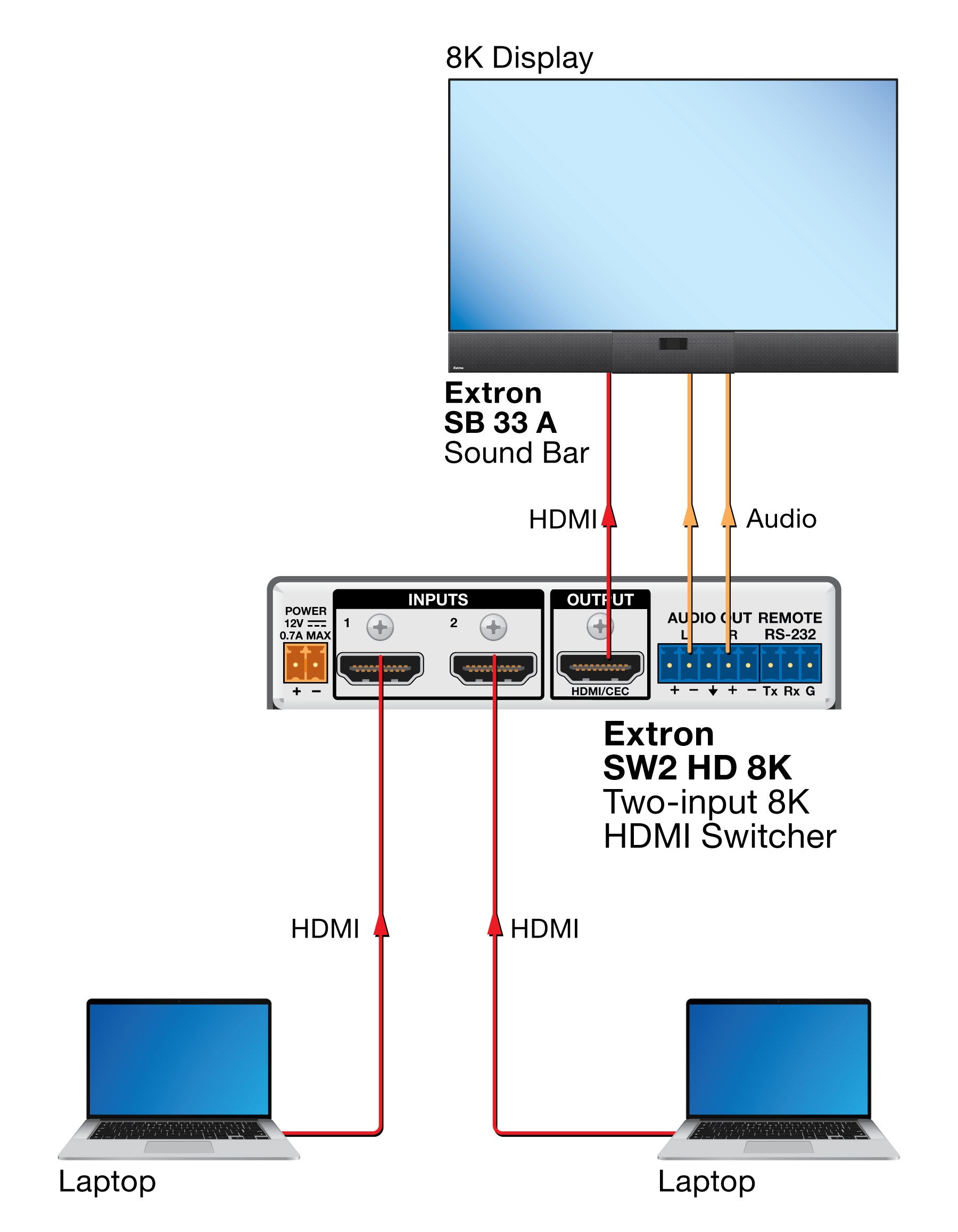

Diagram

Resources

Brochure | SW2 HD 8K 60-1985-01 | SW2 HD 8K

Manual | SW2 HD 8K 60-1985-01 | SW2 HD 8K Setup Guide

Manual | SW2 HD 8K 60-1985-01 | SW2 HD 8K User Guide

Specifications | SW2 HD 8K 60-1985-01 | SW2 HD 8K

Panel Drawing | SW2 HD 8K 60-1985-01 | SW2 HD 8K

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

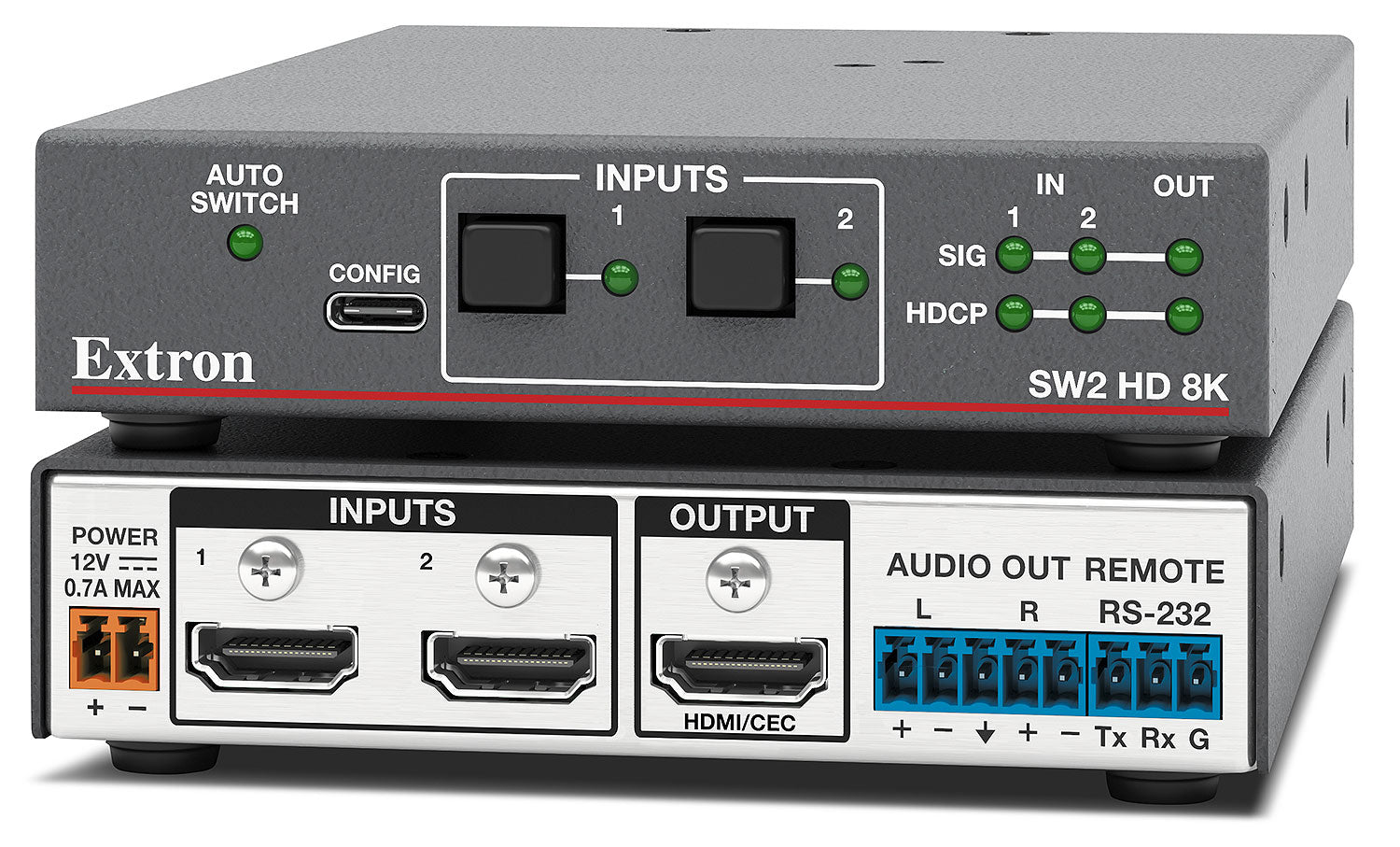

Extron SW2 HD 8K 60-1985-01
