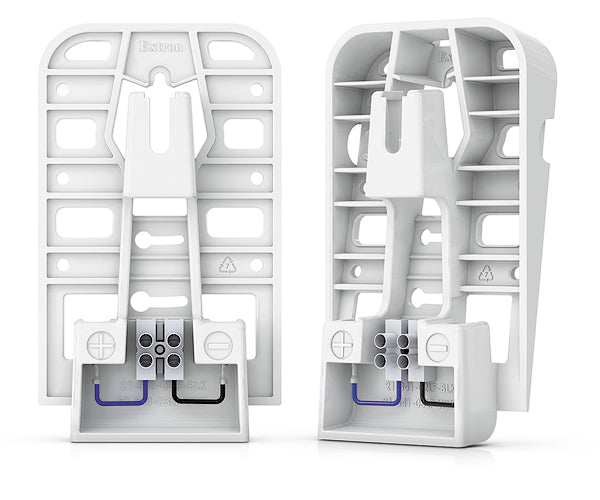

Extron Surface Mount Kit (part number 70-977-03) — white replacement SpeedMount kit, supplied as a pair, for the Extron SM 26 and SM 28 surface mount speakers.

The white-finish counterpart to 70-977-02, matched to white SM 26 and SM 28 cabinets. Two components make up the aiming strategy. The 0° mounting plate is the baseline: it fixes to studs or wall board and holds the speaker flush, in either a vertical or a horizontal cabinet orientation. Where the mounting height is above or off to one side of the listening area, the 10° mounting adapter is added between plate and speaker, giving a 10° tilt that can be indexed downward, upward, left or right. Neither change affects the underlying benefit of the SpeedMount design, which is that speaker cable is terminated on the plate at rough-in and the speaker itself connects and locks in a single later step — with a hidden, lockable release for service access.

Key Capabilities

• Ships with 0° mounting plates and 10° mounting adapters.
• Fixes to wall studs or wall board.
• Flush, vertical or horizontal speaker orientation on the 0° plate.
• 10° adapter angles the speaker down, up, left or right.
• Integrated wiring contacts mate automatically as the speaker locks on.
• Concealed lockable release on the speaker baffle for removal.
• Hidden contacts and release provide theft deterrence.

Where It Is Used

Light-finished sports halls, classrooms, dining and assembly spaces, houses of worship and clinical areas running SM 26 or SM 28 speakers — usually specified as spares for an existing estate, or after building work has damaged or removed the original mounting plates.

Specifications at a Glance

• Compatible speakers: SM 26 and SM 28 SpeedMount surface mount speakers
• Included: 0° mounting plates and 10° mounting adapters
• Tilt with adapter: 10° down, up, left or right
• Fixing surfaces: wall studs or wall boards
• Sold as: pair, white

Also referenced as Extron SurfaceMountKit, Surface-Mount-Kit, part number 7097703.
