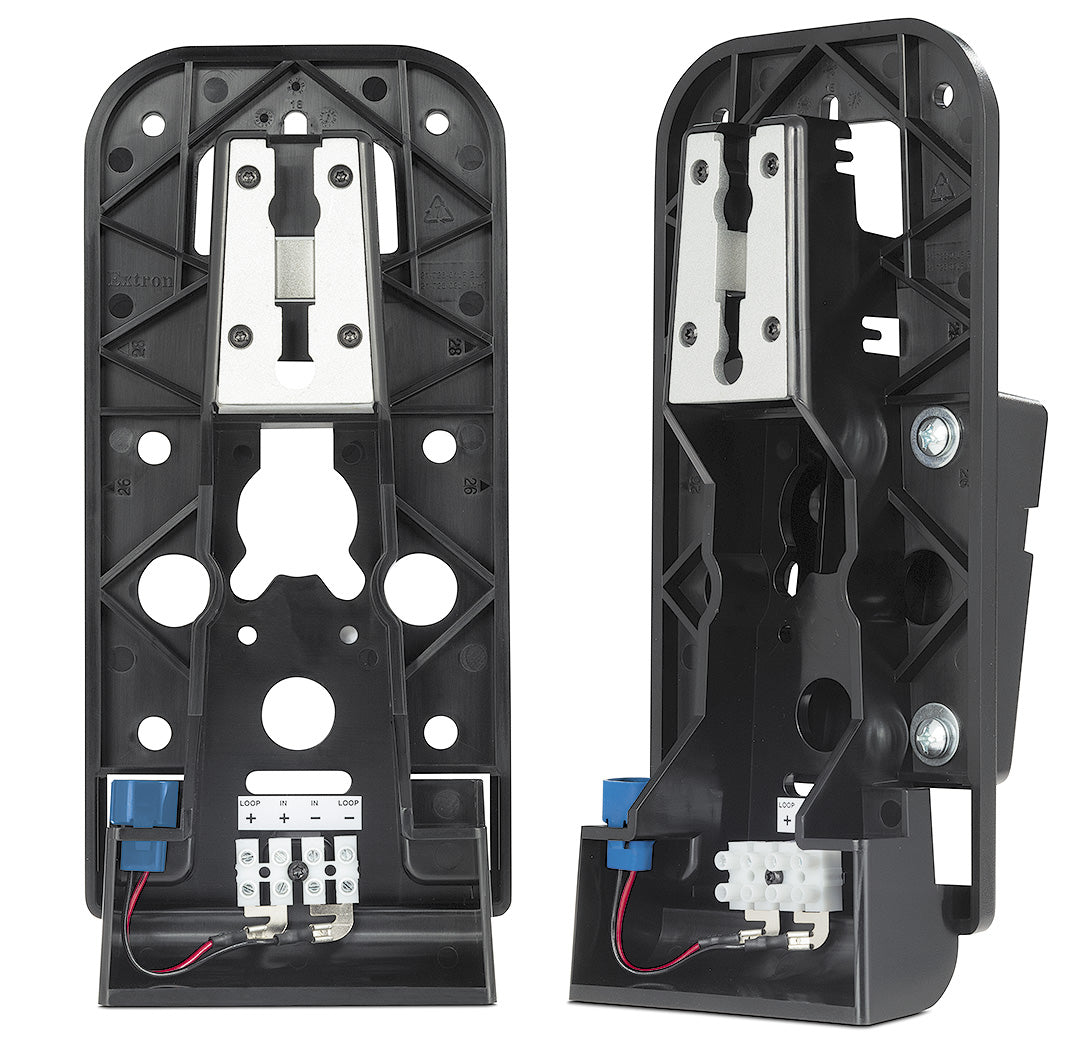

Extron Surface Mount Kit (part number 70-977-02) — black replacement SpeedMount kit, sold as a pair, for the Extron SM 26 and SM 28 surface mount speakers.

This kit replaces the concealed mounting system supplied with the SM 26 and SM 28. Contents differ from the SM 3 version: here you get 0° mounting plates plus 10° mounting adapters, and the plates are designed to be fixed to wall studs or wall board. On the 0° plate alone the speaker sits flush with the wall and can be oriented vertically or horizontally, which matters when a cabinet has to work with a soffit line or a run of ceiling. Adding the 10° adapter to that plate introduces a 10° tilt, and the adapter can be indexed so the tilt goes down, up, left or right. The operational advantage is unchanged: the plate is wired at rough-in, and when the speaker is slid on it locks and connects simultaneously, with a lockable hidden release for later removal.

Key Capabilities

• Includes 0° mounting plates and 10° mounting adapters.
• Plates attach to wall studs or wall boards.
• 0° plate mounts the speaker flush, vertically or horizontally.
• 10° adapter tilts the speaker downward, upward, left or right.
• Speaker slides on, locks, and mates with the pre-wired contacts in one step.
• Hidden, lockable baffle release allows quick authorised removal.
• Concealed wiring and release together deter theft.

Where It Is Used

Gymnasiums, lecture rooms, cafeterias, worship spaces and industrial or warehouse areas fitted with SM 26 or SM 28 speakers — typically bought as replacement stock when a plate is damaged during building work, or when a room is reconfigured and speakers move to new positions.

Specifications at a Glance

• Compatible speakers: SM 26 and SM 28 SpeedMount surface mount speakers
• Included: 0° mounting plates and 10° mounting adapters
• Tilt with adapter: 10° down, up, left or right
• Fixing surfaces: wall studs or wall boards
• Sold as: pair, black

Also referenced as Extron SurfaceMountKit, Surface-Mount-Kit, part number 7097702.
