Extron Surface Mount Kit SM 3 Speaker Mounting Pair White 70-930-03
Extron Surface Mount Kit SM 3 Speaker Mounting Pair White 70-930-03
Extron Surface Mount Kit for SM 3 Speakers
- • Extron SM 3 speaker surface mount kit pair, white
- • 0 degree plate keeps protrusion under 4 in (10.2 cm)
- • Mounts to US or EU junction boxes, studs or wall board
- • Sales, replacement and exchange
- • Part# 70-930-03 / 7093003
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

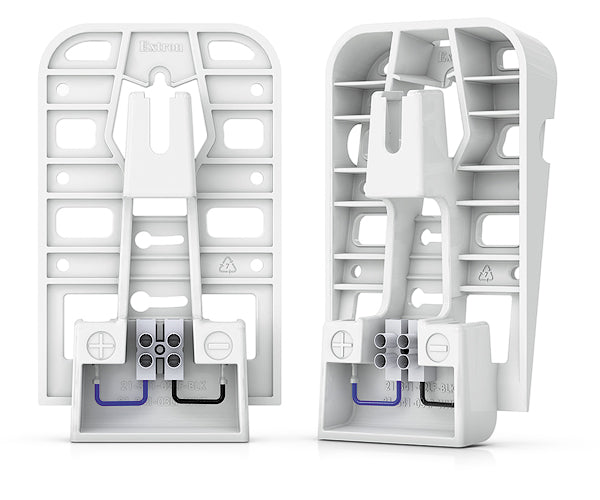

Extron Surface Mount Kit (part number 70-930-03) - white replacement SpeedMount kit, supplied as a pair, for the Extron SM 3 surface mount speaker.
Functionally identical to the black 70-930-02, finished white to match white SM 3 cabinets. What is being replaced here is the plate that stays on the wall and the patented contact system built into it. Two plate angles are supplied. The 0° plate holds the speaker flat and keeps the whole assembly under 4 in (10.2 cm) off the wall, which is what brings an SM 3 inside ADA protruding-object limits in a corridor or circulation route. The 10° plate tips the speaker for rooms where the listening plane sits below the mounting height. Either plate can be fixed to a US or European junction box, or driven straight into studs or wall board where no box exists. The speaker itself locks on and connects electrically in the same movement, with no separate terminal to reach behind the cabinet.
Key Capabilities
- Supplied with 0° and 10° mounting plates.
- Mounts to US or European electrical junction boxes, wall studs or wall boards.
- 0° plate keeps SM 3 protrusion under 4 in (10.2 cm) for ADA compliance.
- One installation step both connects and secures the speaker.
- Lockable, concealed release on the speaker baffle for removal.
- Hidden contacts and release act as theft deterrence.
Where It Is Used
White-finished corridors, teaching spaces, clinical areas and public buildings running SM 3 speakers - ordered as maintenance stock, when a plate is damaged during redecoration, or when speakers are relocated and the original plates cannot be reused.
Specifications at a Glance
- Compatible speaker: SM 3 SpeedMount surface mount speaker
- Plates supplied: 0° and 10°
- ADA protrusion: under 4 in (10.2 cm) with the 0° plate
- Fixing options: US or European junction boxes, studs, wall board
- Sold as: pair, white
Also referenced as Extron SurfaceMountKit, Surface-Mount-Kit, part number 7093003.
Frequently asked questions about the Extron Surface Mount Kit SM 3 Speaker Mounting Pair White
Does Ampronix sell the Extron Surface Mount Kit SM 3 Speaker Mounting Pair White?
Yes. Ampronix is an authorized Extron distributor and sells the Extron Surface Mount Kit SM 3 Speaker Mounting Pair White (70-930-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron Surface Mount Kit SM 3 Speaker Mounting Pair White?
Yes. Ampronix provides sales, replacement and exchange for the Extron Surface Mount Kit SM 3 Speaker Mounting Pair White. Call Ampronix for a quote.
What are the key features of the Extron Surface Mount Kit SM 3 Speaker Mounting Pair White?
Key points: Supplied with 0° and 10° mounting plates; Mounts to US or European electrical junction boxes, wall studs or wall boards; 0° plate keeps SM 3 protrusion under 4 in (10.2 cm) for ADA compliance; One installation step both connects and secures the speaker. Call Ampronix to confirm details for your application.
Related: Extron products, Video Solutions.
