Extron Surface Mount Kit for SM 3 Speakers
- • Replacement SpeedMount system for the Extron SM 3 speaker
- • Includes both 0 degree and 10 degree mounting plates
- • Under 4 in (10.2 cm) protrusion with the 0 degree plate - meets ADA limits
- • Fixes to US or European junction boxes, studs or wall board
- • Speaker locks on and connects to the wiring contacts in one step
- • Hidden, lockable baffle release for authorised removal
- • Sold in pairs, black to match SM 3 cabinets
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

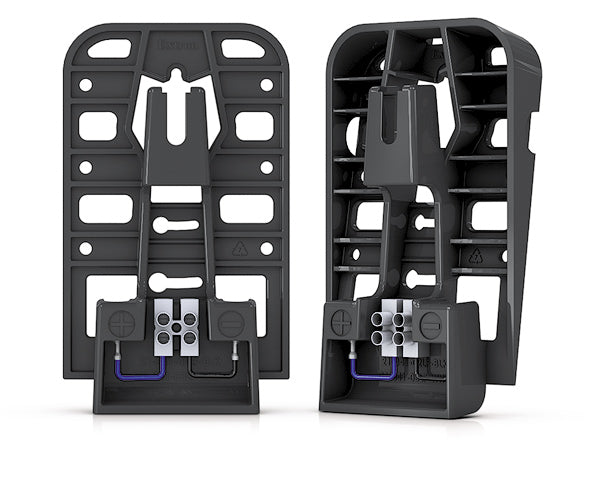

Extron Surface Mount Kit (part number 70-930-02) — black replacement SpeedMount kit, sold as a pair, for the Extron SM 3 surface mount speaker.
This is the concealed mounting system that ships with the SM 3, offered separately as a spare or replacement. Its purpose is to split speaker installation cleanly between two trades. At rough-in the electrical contractor fixes the mounting plate and terminates speaker cable to the integrated wiring contacts on it — no speaker present, no AV technician required. Later the SM 3 slides onto the plate and locks, and in that same motion the contacts on the speaker mate with the pre-wired contacts on the plate. There is no separate connection step and no visible hardware afterwards. Removal is by a release on the speaker baffle, which is both hidden and lockable; combined with the concealed wiring contacts, it makes the speaker awkward to take off a wall without the right knowledge.
Key Capabilities
- Includes both 0° and 10° mounting plates for the SM 3.
- Plates fix to US or European electrical junction boxes, or directly to studs or wall board.
- With the 0° plate the SM 3 protrudes less than 4 in (10.2 cm) from the wall, meeting ADA protruding-object limits.
- Speaker locks on and connects to the wiring contacts in one installation step.
- Hidden, lockable release on the speaker baffle for quick authorised removal.
- Concealed contacts and release together deter theft.
Where It Is Used
Corridors, classrooms, waiting rooms and circulation spaces where accessibility rules govern how far anything may project from a wall, and larger estates where SM 3 speakers are installed in volume and spare mounting plates are held on site for churn and damage.
Specifications at a Glance
- Compatible speaker: SM 3 SpeedMount surface mount speaker
- Plates supplied: 0° and 10°
- ADA protrusion: under 4 in (10.2 cm) with the 0° plate
- Fixing options: US or European junction boxes, studs, wall board
- Sold as: pair, black
Also referenced as Extron SurfaceMountKit, Surface-Mount-Kit, part number 7093002.
