Extron STK 1 (part number 70-1255-01) is an 18 in. (457 mm) security tether that deters theft of a wall-mounted TouchLink Pro touchpanel.

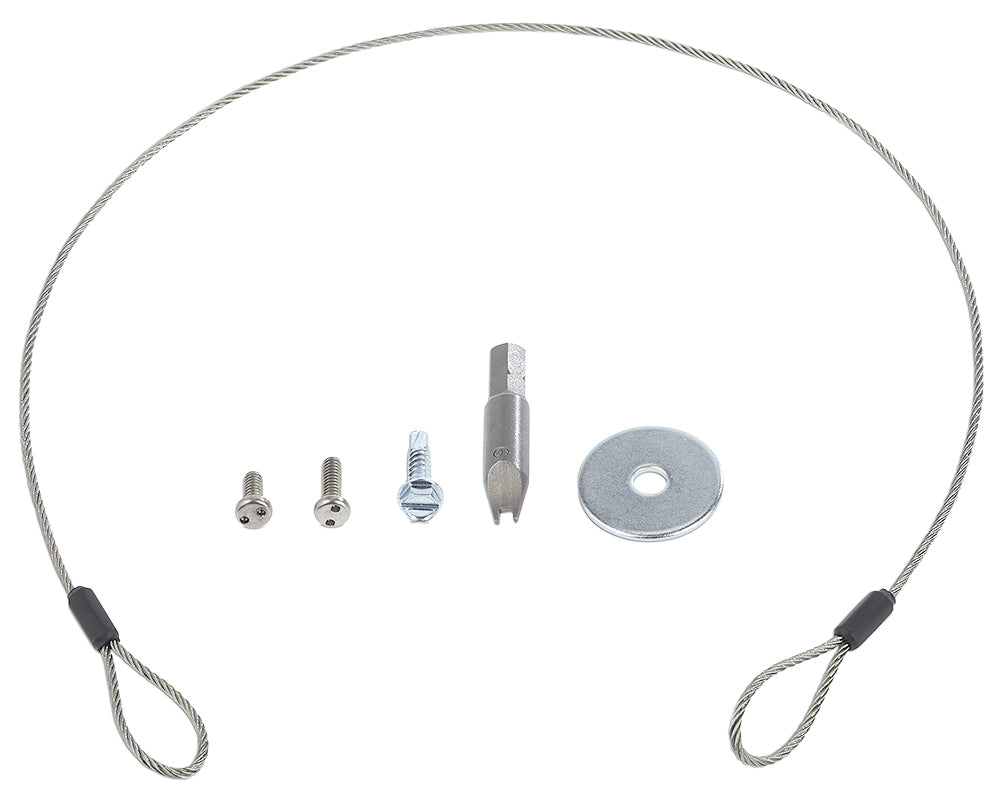

The STK 1 is a length of wire with pre-crimped loops at each end. One loop anchors to an internal wall stud with a self-drilling screw and washer; the tether then passes through an Extron RWM 1 or RWM 2 recessed wall mount before the touchpanel is installed. The other loop hooks over a set screw at the bottom of the touchpanel, tightened with the included spanner-head bit. Beyond deterring theft, the tether relieves strain on the Ethernet cable during install and service, and can help prevent damage if the panel is dropped while being serviced.

Key Capabilities

• 18 in. (457 mm) pre-crimped tether with loop ends
• Anchors to an internal wall stud with the included self-drilling screw and washer
• Pairs with an Extron RWM 1 (5 in. panels) or RWM 2 (7 in. and 10 in. panels) recessed wall mount
• Includes a 3/8 in. set screw for 5 in. touchpanels and a 1/2 in. set screw for 7 in. and 10 in. touchpanels
• Relieves Ethernet cable strain during installation and service

Where It Is Used

Integrators fit the STK 1 on public-facing TouchLink Pro installs, such as lobbies, classrooms, and transit hubs, where a recessed wall-mounted touchpanel would otherwise be easy to pry loose.

Specifications at a Glance

• Tether length: 18 in. (457 mm)
• Compatible mounts: Extron RWM 1 and RWM 2
• Set screw sizes: 3/8 in. (RWM 1) and 1/2 in. (RWM 2)
• Installation: Self-drilling wall-stud screw, spanner-head-driven touchpanel set screw

Also referenced as Extron STK1, STK-1, part number 70125501.
