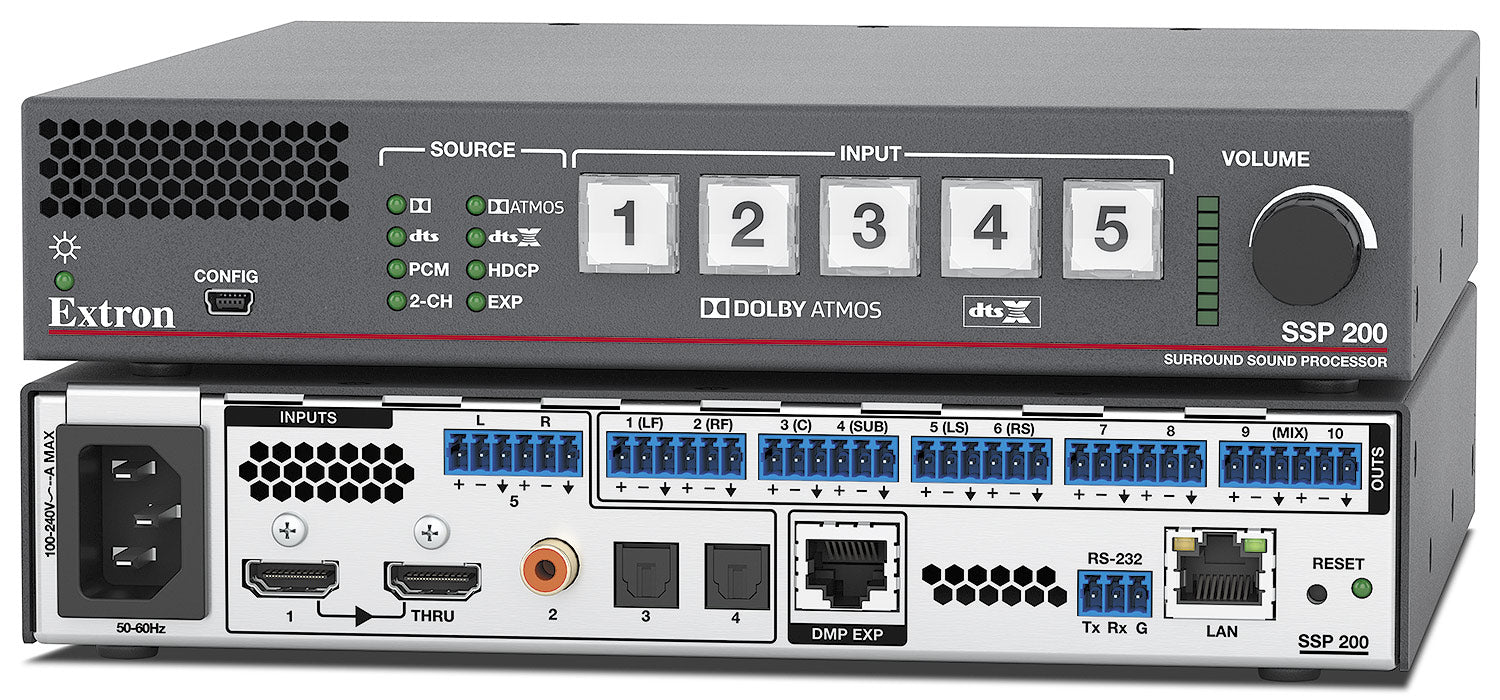

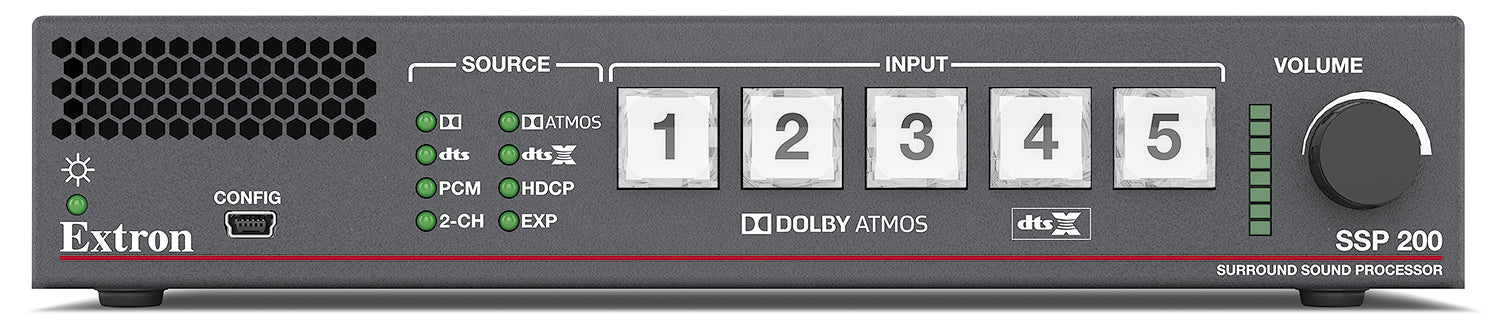

Extron SSP 200 (part number 60-1658-01) — a surround sound processor built for pro AV, decoding Dolby and DTS soundtracks from HDMI to discrete balanced outputs.

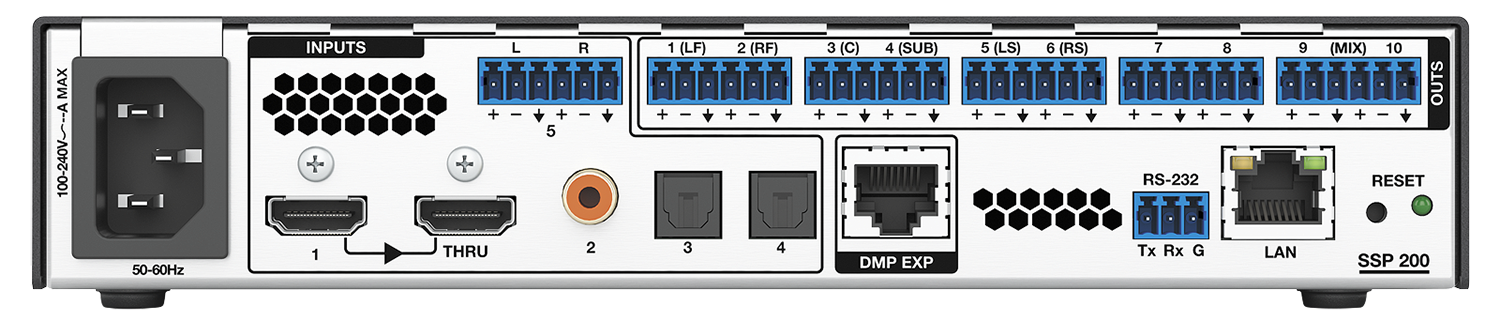

Consumer receivers are a poor fit for an equipment rack: wrong connectors, wrong control, wrong form factor. The SSP 200 solves that. An HDMI input with loop-through passes 4K video straight to the display while the audio is decoded to ten balanced or unbalanced outputs on 6-pole captive screw connectors — left and right front, left and right surround, center and subwoofer, plus four assignable outputs for back channels, height pairs or a downmix. Coaxial and optical S/PDIF inputs and an analog stereo input cover the rest of the sources, and RS-232 or LAN control puts the processor under the room's control system.

Key Capabilities

Decodes Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, DTS Master Audio and related formats.
Ten balanced/unbalanced outputs, six fixed and four assignable, at 24-bit/96 kHz D/A conversion.
HDMI input plus loop-through supporting up to 4096x2160 at 60 Hz, 4:4:4, and an 18 Gbps data rate.
Digital inputs: one HDMI and three S/PDIF (one coaxial, two optical TOSLINK).
Bass management crossover adjustable from 40 Hz to 250 Hz; subwoofer response 4 Hz to 250 Hz.
Listening modes include Dolby Surround Upmixer and DTS Neural:X Upmixer alongside stereo and mono modes.

Where It Is Used

Screening rooms, boardrooms with cinema-grade playback, higher-education media labs, simulation and training environments, museum theaters and executive briefing centers. The half-rack metal enclosure fits an optional rack shelf or an under-desk or through-desk mounting kit and runs on an internal universal supply.

Specifications at a Glance

10 balanced/unbalanced audio outputs, 24-bit/96 kHz D/A conversion
Video up to 4096x2160 at 60 Hz, HDCP 1.4 and 2.3, 18 Gbps
Frequency response 20 Hz to 20 kHz, ±0.2 dB; S/N better than 100 dB
Power 100-240 VAC, 12 watts internal; 34.4 BTU/hr
Enclosure 1.7 in H x 8.75 in W x 8.5 in D, 2.2 lbs (1.0 kg)

Also referenced as Extron SSP200, SSP-200, part number 60165801.

Specifications

Part Number: 60-1658-01

Manufacturer: Extron

Model: SSP 200

Condition: New

Video Signal Type: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3

Maximum Video Data Rate: 18 Gbps (6 Gbps per color)

Resolution Range: Up to 4K (4096x2160 at 60 Hz)

Frame Rate: 24, 25, 30, 50 or 60 fps

Chroma Sampling: 4:4:4 or 4:2:0

Color Bit Depth: 8 or 10 bits per color

Video Input and Loop Through: 1 HDMI/DVI (HDCP compliant) input; 1 HDMI/DVI (HDCP compliant) loop through

Video Connectors: 2 female HDMI type A: 1 for input, 1 for loop through

Input Cable Equalization: Automatic

Input Cable Length: HDMI Ultra/DisplayPort Ultra up to 12 feet (3.6 meters); HDMI Pro 25 feet (7.6 meters)

Output Cable Length: At 4096x2160 @ 60 Hz, 4:4:4, 8 color bits: HDMI Ultra up to 9 feet (2.7 meters); HDMI Pro up to 25 feet (7.6 meters)

Gain: Unbalanced output: -6 dB; balanced output: 0 dB, when volume is set to 100%

Frequency Response: 20 Hz to 20 kHz, ±0.2 dB

Subwoofer Frequency Response: 4 Hz to 250 Hz, ±3 dB

THD + Noise: <0.03% @ 1 kHz, at maximum output level

S/N: >100 dB, 20 Hz to 20 kHz, unweighted

Stereo Channel Separation: Analog input only: >90 dB @ 1 kHz

CMRR: Analog input only: >75 dB (typical) @ 1 kHz

Volume Control: -100 dB to 0 dB

Bass Management Crossover Frequencies: 40 Hz to 250 Hz

Digital Audio Inputs: 1 HDMI, 3 S/PDIF (1 coaxial, 2 optical)

Digital Audio Input Connectors: 1 HDMI connector; 1 RCA connector; 2 TOSLINK fiber optic connectors

Source Formats: LPCM up to 7.1/24-bit/192 kHz (HDMI), LPCM up to 2.0/24-bit/96 kHz (S/PDIF), Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, Dolby Digital Plus, Dolby True HD, Dolby Atmos; DTS 2-channel, DTS Digital Surround, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1, DTS 96/24, DTS 96/24 ES Matrix 6.1, DTS Master Audio, DTS Express, DTS:X

Listening Modes: Auto, Stereo, Stereo to all, Mono, Mono to all, Dolby Surround Upmixer, DTS Neural:X Upmixer

Analog Audio Input: 1 analog stereo/mono, balanced/unbalanced

Analog Audio Input Connector: (1) 3.5 mm captive screw connector, 6 pole

Analog Input Impedance: >10k ohms balanced/unbalanced, DC coupled

Analog Input Nominal Level: +4 dBu (1.23 Vrms) balanced or -10 dBV (316 mVrms) unbalanced

Analog Input Maximum Level: +21 dBu (balanced/unbalanced)

Input Gain Adjustment: -18 dB to +24 dB (default 0 dB), adjustable via RS-232 or front panel

Audio Outputs: 10 balanced/unbalanced for left and right front, left and right surround, center and subwoofer, plus four assignable outputs for left and right back, front and back height pairs, and downmix

Audio Output Connectors: (5) 3.5 mm captive screw connectors, 6 pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Gain Error: ±0.2 dB channel to channel

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced or >+15 dBu unbalanced at 0.03% THD+N

Output Level Range per Channel: -24 dB to 0 dB

D/A Conversion: 24 bit, 96 kHz

Serial Control Port: 1 bidirectional RS-232 rear panel 3.5 mm captive screw connector, 3 pole; 9600, 19200, 38400 (default) or 115200 baud, 8 data bits, 1 stop bit, no parity

USB Configuration Port: 1 front panel USB mini-B, USB 2.0 low speed

Ethernet Host Port: 1 RJ-45 female, 10/100/1000Base-T, half/full duplex with autodetect

Ethernet Protocols: ARP, DHCP, HTTPS, ICMP, IEEE 802.1X, IP, SSH, TCP, Telnet

Program Control: Extron Product Configuration Software (PCS) for Windows, Extron Simple Instruction Set (SIS)

Power: 100 VAC to 240 VAC, 50-60 Hz, 12 watts, internal

Thermal Dissipation: 34.4 BTU/hr

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C), 10% to 90% noncondensing; Operating +32 to +122 °F (0 to +50 °C), 10% to 90% noncondensing

Cooling: Convection, vents

Rack Mount: Yes, with optional rack shelf

Furniture Mount: Yes, with optional under-desk or through-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.7 in H x 8.75 in W x 8.5 in D (1U high, half rack wide); 43 mm H x 222 mm W x 216 mm D; depth excludes connectors and knob

Product Weight: 2.2 lbs (1.0 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class B, ICES, VCCI; complies with the appropriate requirements of RoHS and WEEE

Product Warranty: 3 years parts and labor

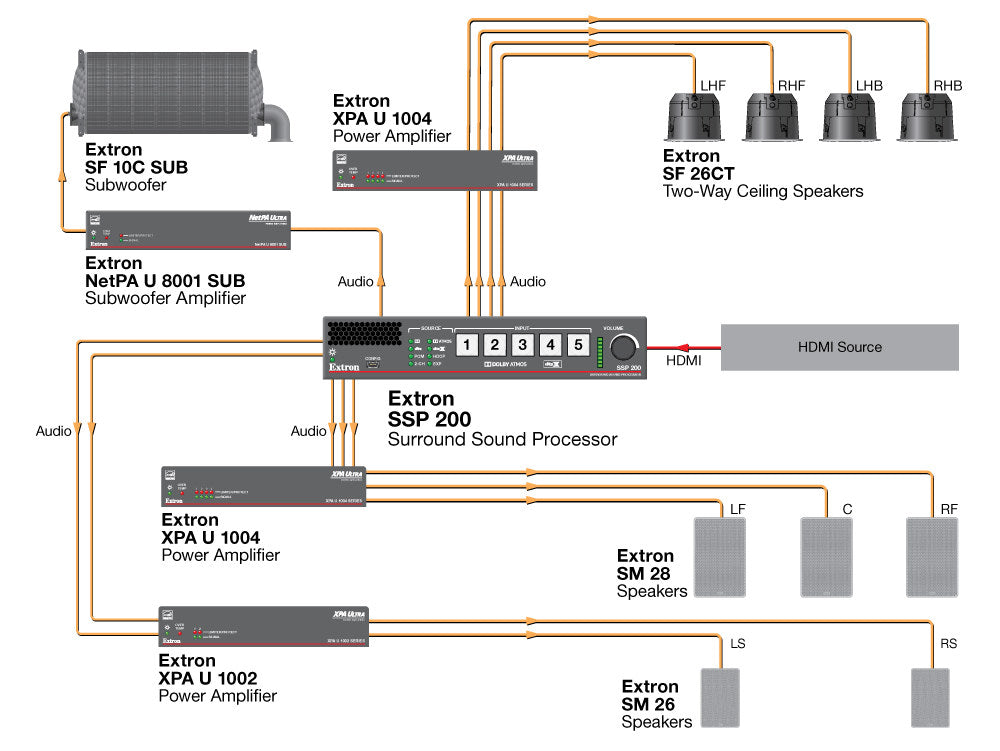

Diagram

Resources

Brochure | SSP 200 60-1658-01 | SSP 200 (ssp_200_revA.pdf)

Brochure | SSP 200 60-1658-01 | SSP 200 (SSP-200_BR_A4_IT_RevA.pdf)

Brochure | SSP 200 60-1658-01 | SSP 200 (SSP-200_BR_A4_FR_RevA.pdf)

Brochure | SSP 200 60-1658-01 | SSP 200 (SSP-200_BR_A4_EN_RevA_Japanese.pdf)

Brochure | SSP 200 60-1658-01 | SSP 200 (SSP_200_Rev_A_CN_Online.pdf)

Manual | SSP 200 60-1658-01 | Cleaning Instruction Card

Manual | SSP 200 60-1658-01 | SSP 200 Setup Guide

Manual | SSP 200 60-1658-01 | SSP 200 User Guide

Specifications | SSP 200 60-1658-01 | SSP 200

Panel Drawing | SSP 200 60-1658-01 | SSP 200
