Details

Manufacturer: Extron; Model: SSI 100W Lens; Part number: 70-1348-01 (also written 70134801)

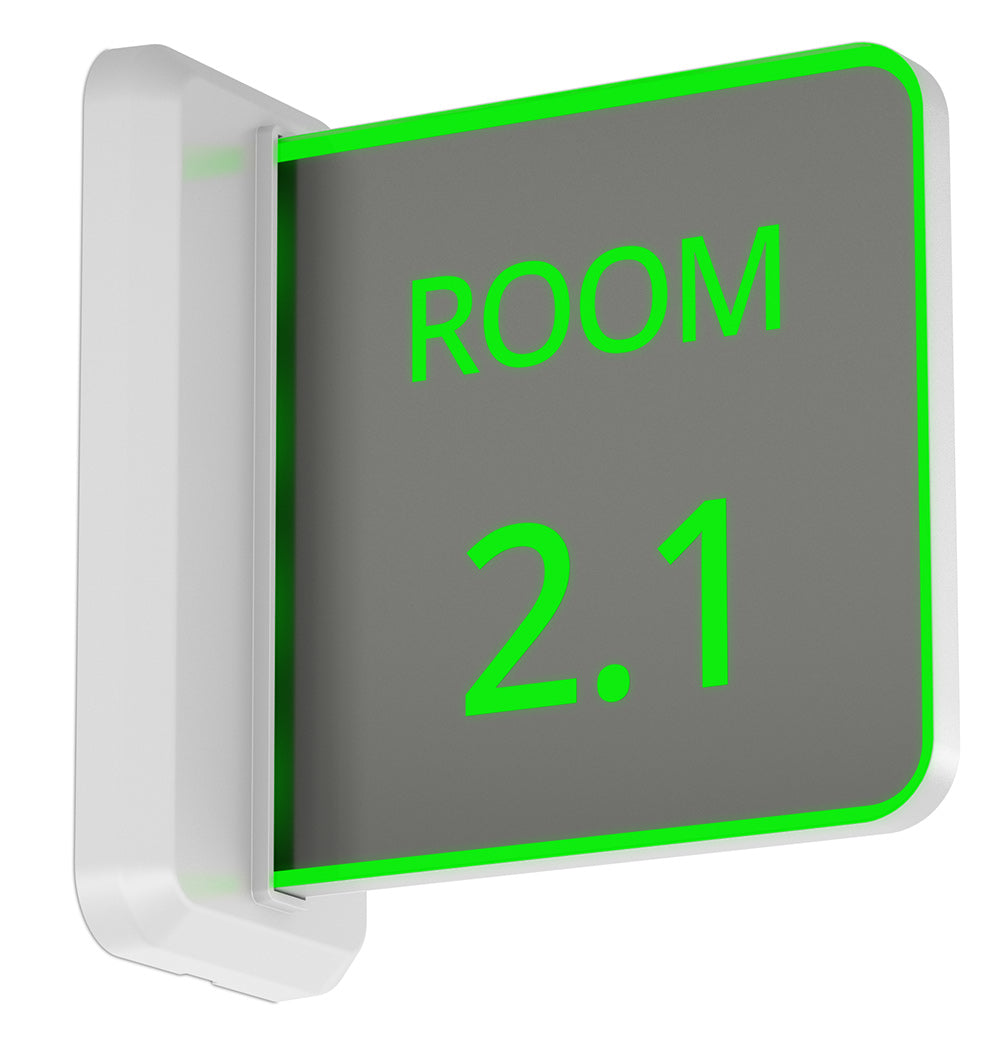

The Extron SSI 100W Lens (70-1348-01) is the replacement two-sided acrylic lens for the SSI 100W wall-mount system status indicator. The lens clips into the SSI 100W body without tools and can be ordered in a blank or engraved version for custom room labeling. This part number is the wall-mount lens; the ceiling-mount SSI 100C uses a different lens (70-1349-01).

Key capabilities

Replacement lens specifically for the SSI 100W (60-1960-01) wall-mount unit
Two-sided acrylic diffuses LED illumination for a polished architectural finish
Tool-free snap-in installation for quick field replacement

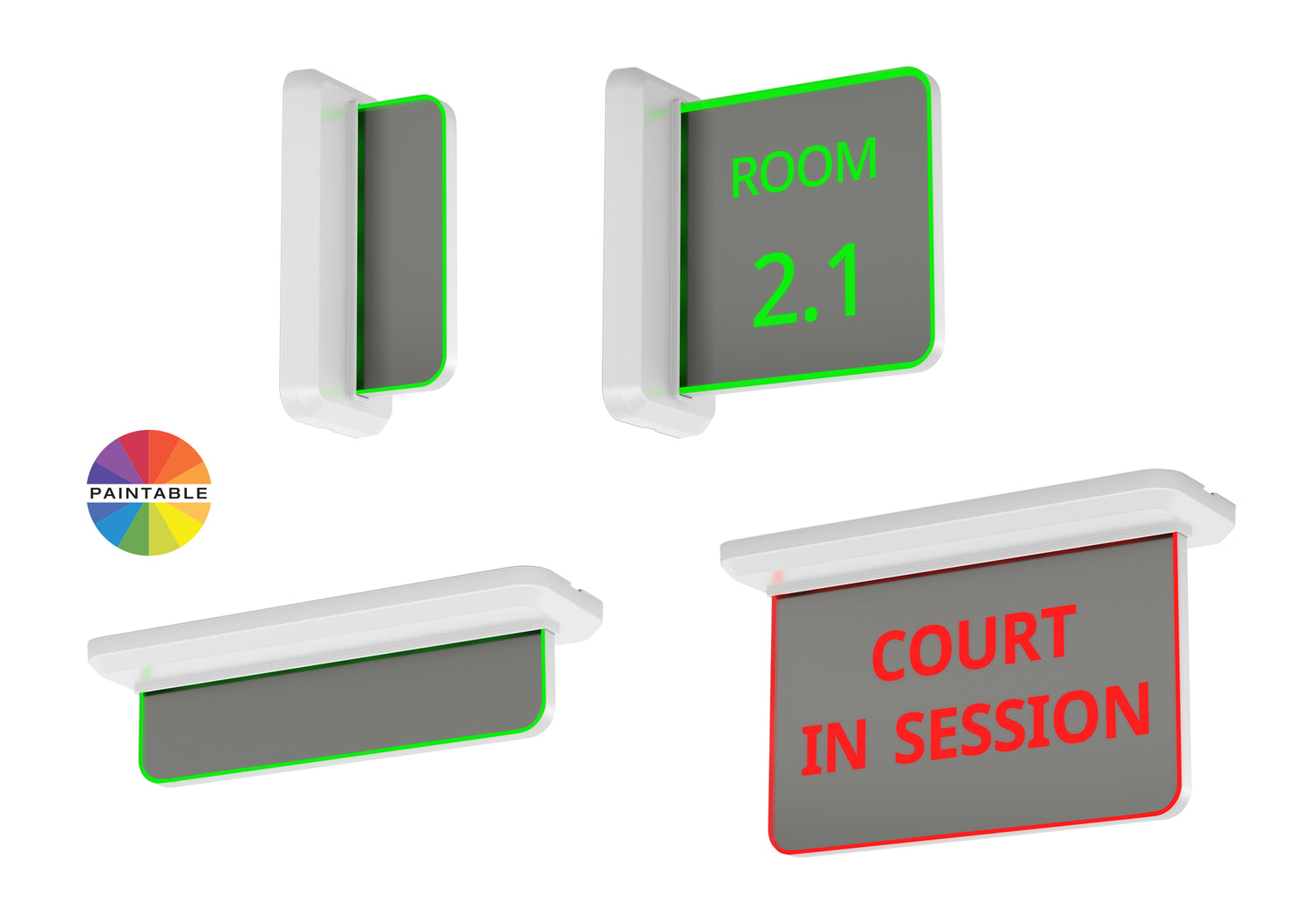

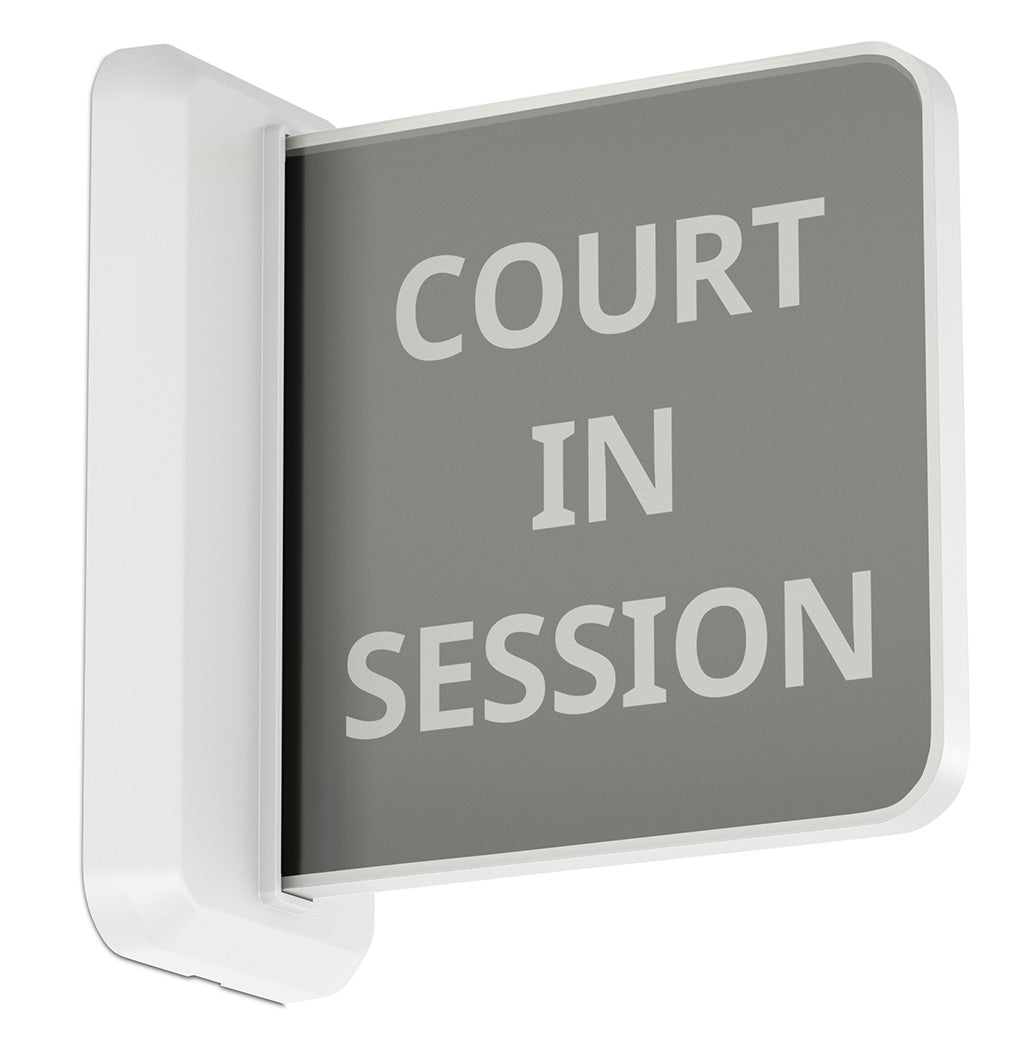

Available in blank or custom-engraved versions for room identification
Do not confuse with the SSI 100C ceiling lens (70-1349-01)

Where it is used

Field replacement when an SSI 100W lens is scratched, cracked, or when switching from a blank lens to an engraved version for improved room labeling.

Specifications at a glance

Compatible indicator: Extron SSI 100W (60-1960-01) only
Lens material: two-sided acrylic
Warranty: 3-year Extron parts and labor

Frequently asked questions about the Extron SSI 100W Lens

Does Ampronix sell the Extron SSI 100W Lens?

Yes. Ampronix is an authorized Extron distributor and sells the Extron SSI 100W Lens (70-1348-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron SSI 100W Lens?

Yes. Ampronix provides sales, replacement and exchange for the Extron SSI 100W Lens. Call Ampronix for a quote.

Is the Extron SSI 100W Lens listed under other names?

Yes. The Extron SSI 100W Lens is also referenced as Extron SSI100WLens, SSI-100W-Lens, part number 70134801.

What are the key features of the Extron SSI 100W Lens?

Key points: Replacement lens specifically for the SSI 100W (60-1960-01) wall-mount unit; Two-sided acrylic diffuses LED illumination for a polished architectural finish; Tool-free snap-in installation for quick field replacement; Available in blank or custom-engraved versions for room identification. Call Ampronix to confirm details for your application.

Also referenced as Extron SSI100WLens, SSI-100W-Lens, part number 70134801.

Specifications

Part Number: 70-1348-01

Manufacturer: Extron

Condition: New

+24 V output port: (1) 3.5 mm captive screw connector, 2 pole

Height: 2.75" (7.0 cm)

Calendar mode: 2 colors (green and red)

Ceiling tile mount: US 4S J-Box with 1 gang reducer cover plate or included 1-gang plastic mud ring, T Grid hanger with 2 screws and a magnetic faceplate

Configuration software: Global Configurator Plus and Professional

Connector: (2) 3.5 mm captive screw connector, 2-pole

Cooling: Convection

DHCP: off

DNS: 127.0.0.1

Default gateway: 0.0.0.0

Device: 9.6 watts

Device and power supply: 12.6 watts

Digital input mode: (using 1 digital input port) 2 colors (green and red)

Enclosure dimensions: See the SSI 100C and SSI 100W dimensions diagrams below:

Enclosure type: Plastic faceplate and metal rear enclosure

Ethernet data rate: 10/100Base-T, half/full duplex with autodetect

Ethernet protocol: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Flash: 512 MB

IP address: 192.168.254.254

Input: 100-240 VAC, 50-60 Hz

Input impedance: >10k ohms

Input voltage range: 0-24 VDC

Link speed and duplex level: autodetected

Number/type: (2) digital inputs (configurable)

Open Ceiling Pendant mount: US 4S J-box, ½” down tube to US 4S J-Box (1 gang reducer cover plate) with 2 screws and magnetic faceplate

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Output: +24 VDC, 50 mA, fixed, non-switchable

PoE Ethernet host port: (1) female RJ-45

Power input: Power over Ethernet (PoE) (complies with PoE 802.3af, class 3) or 12 VDC from external power supply (sold separately)

Power supply (sold separately): External, not included

Product warranty: 3 years parts and labor

Product weight: SSI 100W – 0.7 lbs (0.3 kg) device with blank lens SSI 100W – 0.9 lbs (0.4 kg) device with engraved lens SSI 100W – 0.4 lbs (0.2 kg) engraved lens only SSI 100C – 1.0 lb (0.45 kg) device with blank lens SSI 100C – 1.3 lbs (0.6 kg) device with engraved lens SSI 100C – 0.7 lbs (0.3 kg) engraved lens only

Programmable pullup: 2k ohms to +5 VDC

Programming software: ControlScript Programming

Regulatory compliance: CE, CUL, UL, C-tick, FCC Class A, ICES, VCCI, Complies with the appropriate requirements of RoHS, WEEE

Resource management software: GlobalViewer Enterprise

SDRAM: 512 MB

SPD mode: up to 16 million colors defined in hex code (example: FF0000)

SSI 100C Custom Sign: 9.01” (229 mm) W x 2.91” (74 mm) D x 6.07" (154 mm) H

SSI 100W Custom Sign: 6.01" (153 mm) H x 2.91" (74 mm) D x 5.79" (147 mm) W

Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Subnet mask: 255.255.255.0

Threshold high to low: >2.0 VDC

Threshold low to high: >2.8 VDC

Utilities: Toolbelt, Room Agent

Wall mount: US 1 gang J-Box or included plastic mud ring with 2 screws and faceplate

Diagram

Resources

Brochure | SSI 100W Lens 70-1348-01 | SSI 100 (ssi_100_revA2.pdf)

Brochure | SSI 100W Lens 70-1348-01 | SSI 100 (ssi_100_revA2_IT.pdf)

Brochure | SSI 100W Lens 70-1348-01 | SSI 100 (ssi_100_revA2_SP.pdf)

Brochure | SSI 100W Lens 70-1348-01 | SSI 100 (ssi_100_revA2_FR.pdf)

Brochure | SSI 100W Lens 70-1348-01 | SSI 100 (ssi_100_revA1_GE.pdf)

Manual | SSI 100W Lens 70-1348-01 | Room Agent User Guide

Manual | SSI 100W Lens 70-1348-01 | SSI 100 Series Custom Engraved Acrylic Lens • Setup Guide

Manual | SSI 100W Lens 70-1348-01 | SSI 100 Series User Guide

Manual | SSI 100W Lens 70-1348-01 | SSI 100C Setup Guide

Manual | SSI 100W Lens 70-1348-01 | SSI 100W Setup Guide

Specifications | SSI 100W Lens 70-1348-01 | SSI 100 Series

Panel Drawing | SSI 100W Lens 70-1348-01 | SSI 100
