Details

Manufacturer: Extron | Model: SSI 100W | Part number: 60-1960-01 (also written 60196001)

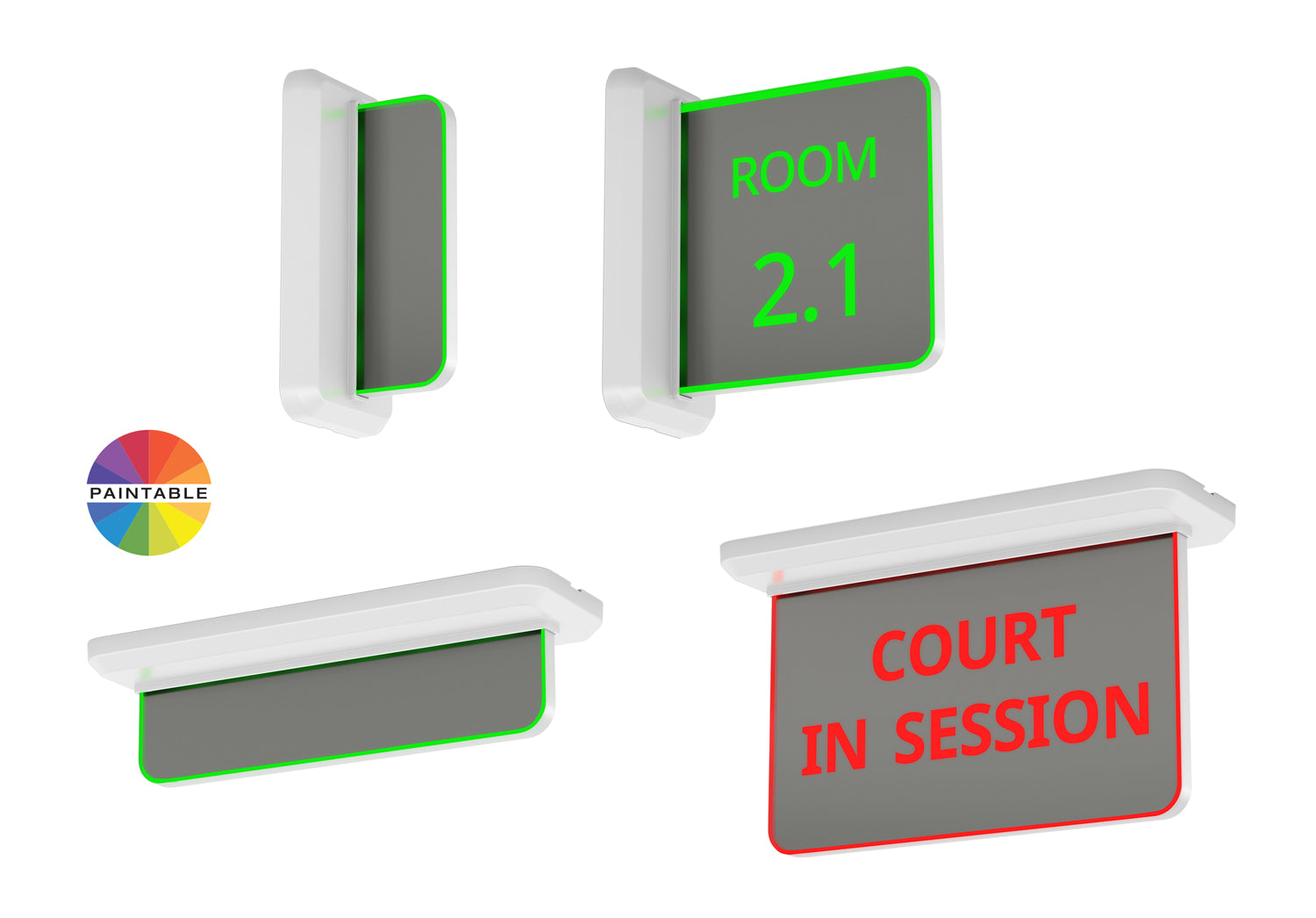

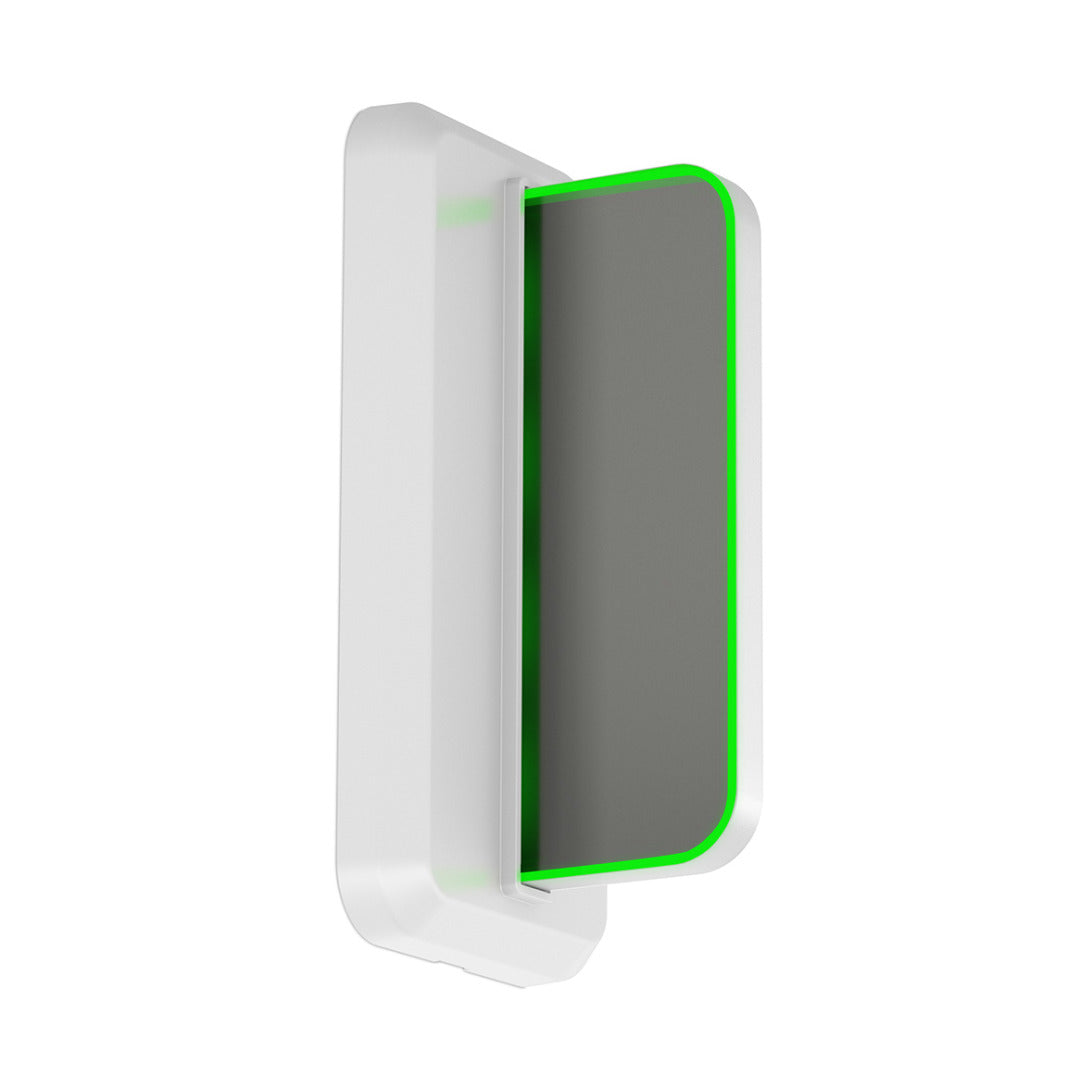

The Extron SSI 100W (60-1960-01) is a wall-mount system status indicator that shows room availability in real time from outside the room. A single PoE Ethernet cable supplies both power and control. The illuminated two-sided acrylic lens displays configurable LED colors — typically green for available and red for occupied — that are visible from corridors and reception areas without requiring occupants to open a door. No licensing fee is required and it integrates directly with Extron control systems and scheduling platforms.

Key capabilities

Wall-mount installation, single RJ-45 PoE connection for power and control
Configurable multi-color LED display visible from hallways and reception areas
Integrates with Extron control systems, scheduling platforms, and GlobalViewer Enterprise
Two-sided acrylic lens for an architectural finish; blank lens on this model
No software licensing required

Where it is used

Conference rooms, collaboration spaces, and classrooms where building occupants need to see room availability from the corridor without opening the door or checking a scheduling app.

Specifications at a glance

Power: PoE 802.3af, Class 3, via single RJ-45
Device power draw: 9.6 W; convection cooled
Calendar mode colors: green (available) and red (occupied)
Configuration: Global Configurator Plus and Professional
Warranty: 3-year Extron parts and labor

Also referenced as Extron SSI100W, SSI-100W, part number 60196001.

Specifications

Part Number: 60-1960-01

Manufacturer: Extron

Condition: New

+24 V output port: (1) 3.5 mm captive screw connector, 2 pole

Height: 3.88" (9.9 cm)

Calendar mode: 2 colors (green and red)

Ceiling tile mount: US 4S J-Box with 1 gang reducer cover plate or included 1-gang plastic mud ring, T Grid hanger with 2 screws and a magnetic faceplate

Configuration software: Global Configurator Plus and Professional

Connector: (2) 3.5 mm captive screw connector, 2-pole

Cooling: Convection

DHCP: off

DNS: 127.0.0.1

Default gateway: 0.0.0.0

Device: 9.6 watts

Device and power supply: 12.6 watts

Digital input mode: (using 1 digital input port) 2 colors (green and red)

Enclosure dimensions: See the SSI 100C and SSI 100W dimensions diagrams below:

Enclosure type: Plastic faceplate and metal rear enclosure

Ethernet data rate: 10/100Base-T, half/full duplex with autodetect

Ethernet protocol: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Flash: 512 MB

IP address: 192.168.254.254

Input: 100-240 VAC, 50-60 Hz

Input impedance: >10k ohms

Input voltage range: 0-24 VDC

Link speed and duplex level: autodetected

Number/type: (2) digital inputs (configurable)

Open Ceiling Pendant mount: US 4S J-box, ½” down tube to US 4S J-Box (1 gang reducer cover plate) with 2 screws and magnetic faceplate

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Output: +24 VDC, 50 mA, fixed, non-switchable

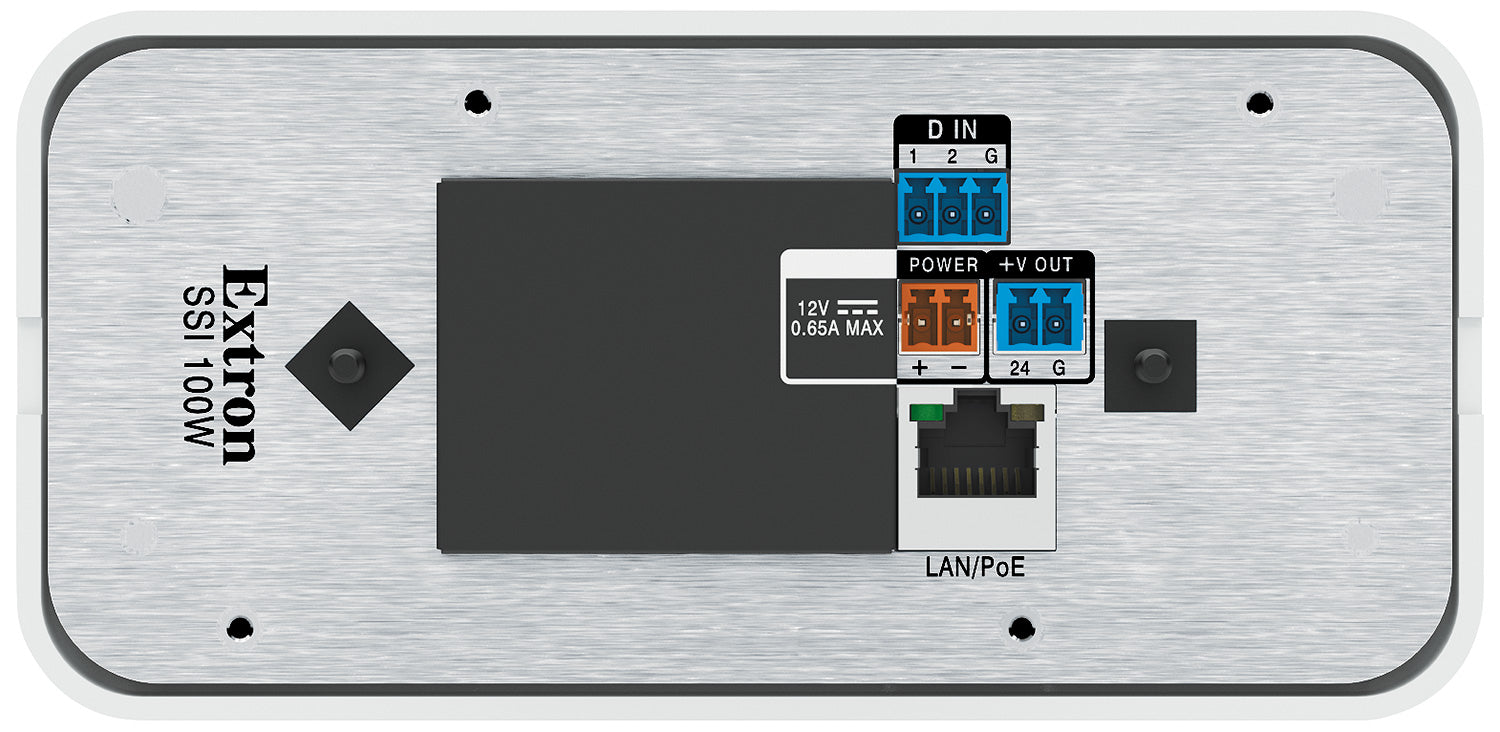

PoE Ethernet host port: (1) female RJ-45

Power input: Power over Ethernet (PoE) (complies with PoE 802.3af, class 3) or 12 VDC from external power supply (sold separately)

Power supply (sold separately): External, not included

Product warranty: 3 years parts and labor

Product weight: SSI 100W – 0.7 lbs (0.3 kg) device with blank lens SSI 100W – 0.9 lbs (0.4 kg) device with engraved lens SSI 100W – 0.4 lbs (0.2 kg) engraved lens only SSI 100C – 1.0 lb (0.45 kg) device with blank lens SSI 100C – 1.3 lbs (0.6 kg) device with engraved lens SSI 100C – 0.7 lbs (0.3 kg) engraved lens only

Programmable pullup: 2k ohms to +5 VDC

Programming software: ControlScript Programming

Regulatory compliance: CE, CUL, UL, C-tick, FCC Class A, ICES, VCCI, Complies with the appropriate requirements of RoHS, WEEE

Resource management software: GlobalViewer Enterprise

SDRAM: 512 MB

SPD mode: up to 16 million colors defined in hex code (example: FF0000)

SSI 100C Custom Sign: 9.01” (229 mm) W x 2.91” (74 mm) D x 6.07" (154 mm) H

SSI 100W Custom Sign: 6.01" (153 mm) H x 2.91" (74 mm) D x 5.79" (147 mm) W

SSi 100W: 6.01" (153 mm) H x 2.91" (74 mm) D x 2.79" (71 mm) W

Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Subnet mask: 255.255.255.0

Threshold high to low: >2.0 VDC

Threshold low to high: >2.8 VDC

Utilities: Toolbelt, Room Agent

Wall mount: US 1 gang J-Box or included plastic mud ring with 2 screws and faceplate

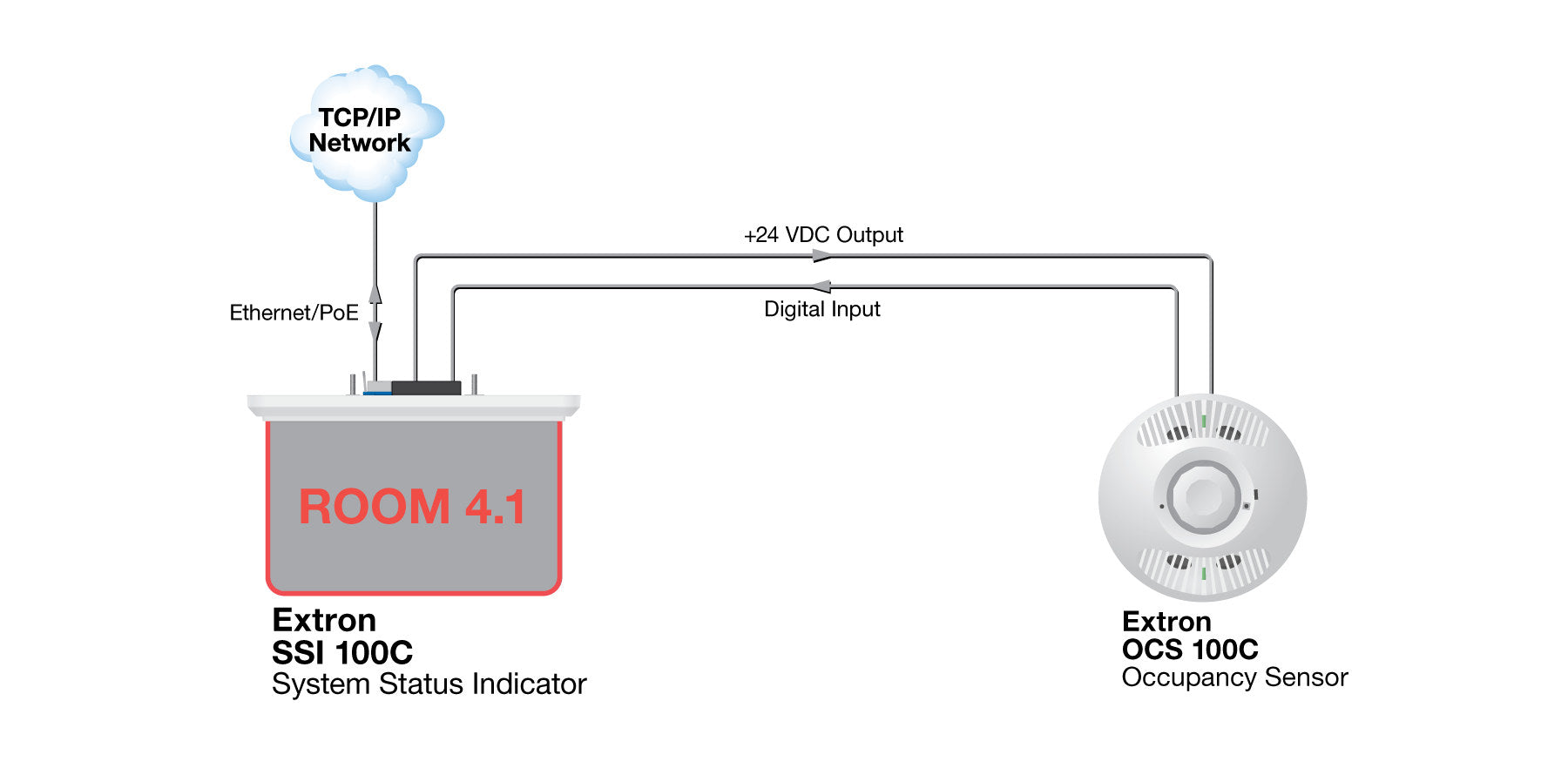

Diagram

Resources

Brochure | SSI 100W 60-1960-01 | SSI 100 (ssi_100_revA2.pdf)

Brochure | SSI 100W 60-1960-01 | SSI 100 (ssi_100_revA2_IT.pdf)

Brochure | SSI 100W 60-1960-01 | SSI 100 (ssi_100_revA2_SP.pdf)

Brochure | SSI 100W 60-1960-01 | SSI 100 (ssi_100_revA2_FR.pdf)

Brochure | SSI 100W 60-1960-01 | SSI 100 (ssi_100_revA1_GE.pdf)

Manual | SSI 100W 60-1960-01 | Room Agent User Guide

Manual | SSI 100W 60-1960-01 | SSI 100 Series Custom Engraved Acrylic Lens • Setup Guide

Manual | SSI 100W 60-1960-01 | SSI 100 Series User Guide

Manual | SSI 100W 60-1960-01 | SSI 100C Setup Guide

Manual | SSI 100W 60-1960-01 | SSI 100W Setup Guide

Specifications | SSI 100W 60-1960-01 | SSI 100 Series

Panel Drawing | SSI 100W 60-1960-01 | SSI 100
