Details

Manufacturer: Extron; Model: SSI 100C; Part number: 60-1961-01 (also written 60196101)

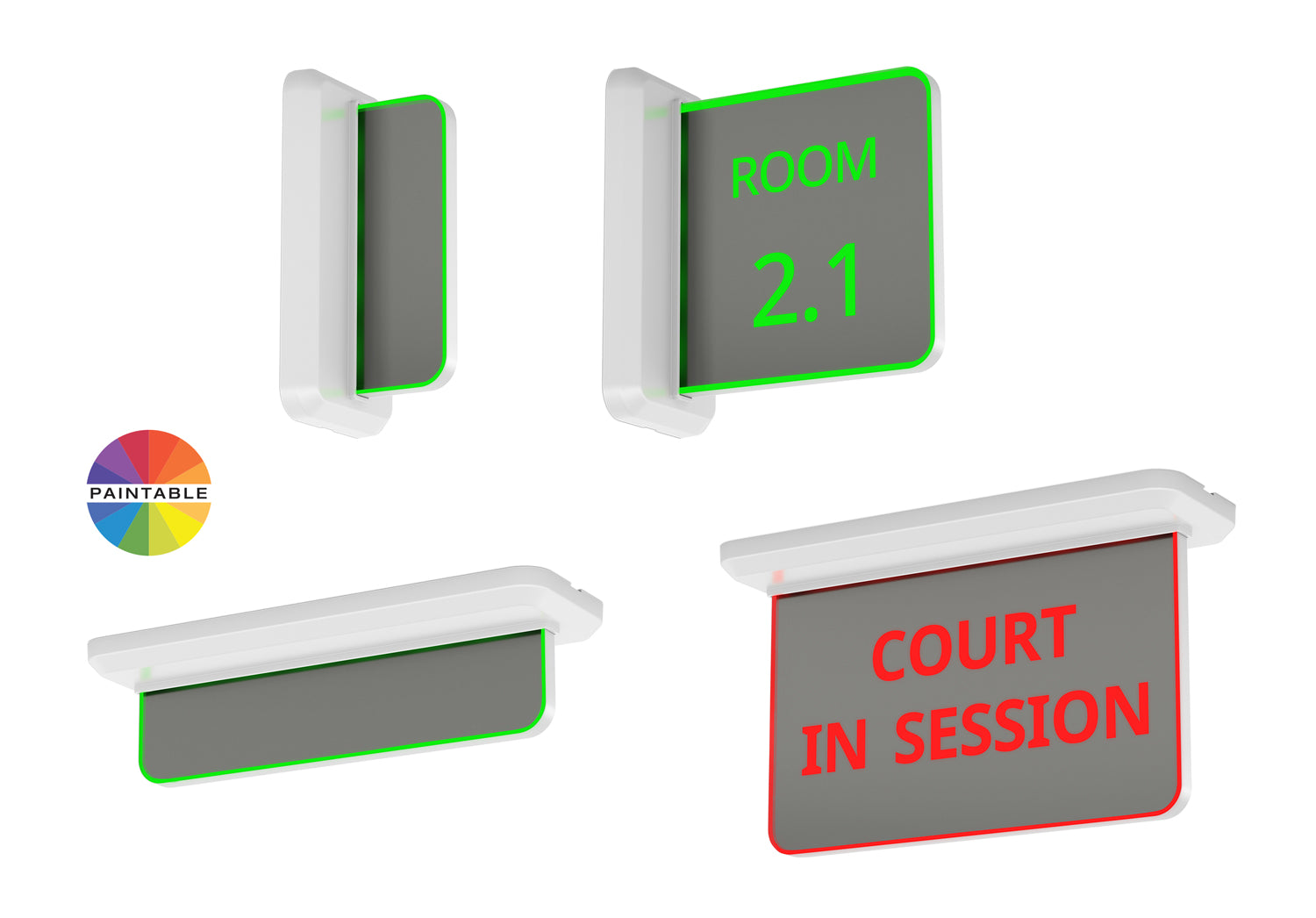

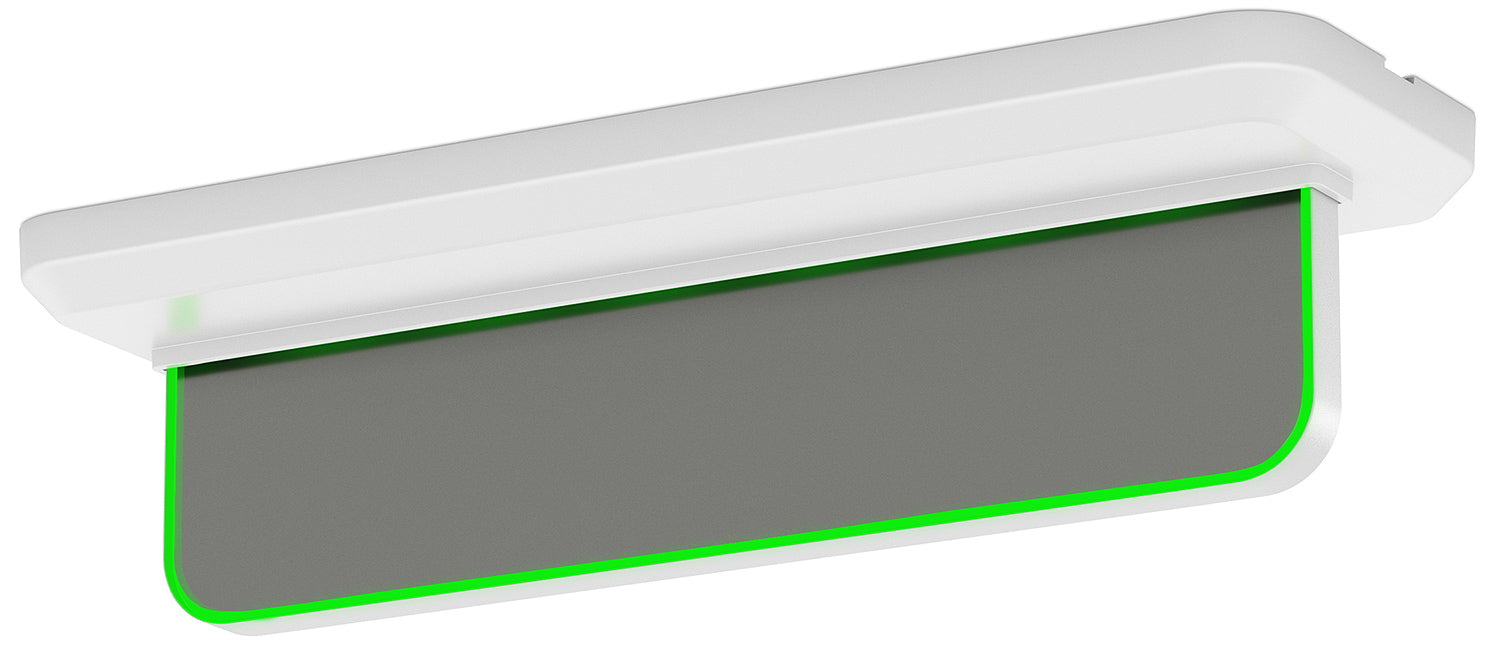

The Extron SSI 100C (60-1961-01) is a ceiling-mount system status indicator that shows room availability in real time from above. A single PoE Ethernet cable supplies both power and control. The illuminated two-sided acrylic lens displays configurable LED colors visible from open-plan offices and corridors with sightlines to the ceiling. No licensing fee is required and the unit integrates directly with Extron control systems and scheduling platforms.

Key capabilities

Ceiling-mount installation for open-plan spaces with ceiling sightlines
Single RJ-45 PoE connection for power and control
Configurable multi-color LED display - green for available, red for occupied
Integrates with Extron control systems, scheduling platforms, and GlobalViewer Enterprise
No software licensing required

Where it is used

Open-plan offices, atriums, and large lobbies where room status needs to be visible from a distance and wall mounting is not practical, or where the ceiling provides a better sightline than a corridor wall.

Specifications at a glance

Power: PoE 802.3af, Class 3, via single RJ-45
Device power draw: 9.6 W; convection cooled
Calendar mode colors: green and red
Mounting: US 4S J-Box with 1-gang reducer or included 1-gang mud ring for T-grid
Warranty: 3-year Extron parts and labor

Frequently asked questions about the Extron SSI 100C

Does Ampronix sell the Extron SSI 100C?

Yes. Ampronix is an authorized Extron distributor and sells the Extron SSI 100C (60-1961-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron SSI 100C?

Yes. Ampronix provides sales, replacement and exchange for the Extron SSI 100C. Call Ampronix for a quote.

Is the Extron SSI 100C listed under other names?

Yes. The Extron SSI 100C is also referenced as Extron SSI100C, SSI-100C, part number 60196101.

What are the key features of the Extron SSI 100C?

Key points: Ceiling-mount installation for open-plan spaces with ceiling sightlines; Single RJ-45 PoE connection for power and control; Configurable multi-color LED display - green for available, red for occupied; Integrates with Extron control systems, scheduling platforms, and GlobalViewer Enterprise. Call Ampronix to confirm details for your application.

Also referenced as Extron SSI100C, SSI-100C, part number 60196101.

Specifications

Part Number: 60-1961-01

Manufacturer: Extron

Condition: New

+24 V output port: (1) 3.5 mm captive screw connector, 2 pole

Height: 3.88" (9.9 cm)

Calendar mode: 2 colors (green and red)

Ceiling tile mount: US 4S J-Box with 1 gang reducer cover plate or included 1-gang plastic mud ring, T Grid hanger with 2 screws and a magnetic faceplate

Configuration software: Global Configurator Plus and Professional

Connector: (2) 3.5 mm captive screw connector, 2-pole

Cooling: Convection

DHCP: off

DNS: 127.0.0.1

Default gateway: 0.0.0.0

Device: 9.6 watts

Device and power supply: 12.6 watts

Digital input mode: (using 1 digital input port) 2 colors (green and red)

Enclosure dimensions: See the SSI 100C and SSI 100W dimensions diagrams below:

Enclosure type: Plastic faceplate and metal rear enclosure

Ethernet data rate: 10/100Base-T, half/full duplex with autodetect

Ethernet protocol: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Flash: 512 MB

IP address: 192.168.254.254

Input: 100-240 VAC, 50-60 Hz

Input impedance: >10k ohms

Input voltage range: 0-24 VDC

Link speed and duplex level: autodetected

Number/type: (2) digital inputs (configurable)

Open Ceiling Pendant mount: US 4S J-box, ½” down tube to US 4S J-Box (1 gang reducer cover plate) with 2 screws and magnetic faceplate

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Output: +24 VDC, 50 mA, fixed, non-switchable

PoE Ethernet host port: (1) female RJ-45

Power input: Power over Ethernet (PoE) (complies with PoE 802.3af, class 3) or 12 VDC from external power supply (sold separately)

Power supply (sold separately): External, not included

Product warranty: 3 years parts and labor

Product weight: SSI 100W – 0.7 lbs (0.3 kg) device with blank lens SSI 100W – 0.9 lbs (0.4 kg) device with engraved lens SSI 100W – 0.4 lbs (0.2 kg) engraved lens only SSI 100C – 1.0 lb (0.45 kg) device with blank lens SSI 100C – 1.3 lbs (0.6 kg) device with engraved lens SSI 100C – 0.7 lbs (0.3 kg) engraved lens only

Programmable pullup: 2k ohms to +5 VDC

Programming software: ControlScript Programming

Regulatory compliance: CE, CUL, UL, C-tick, FCC Class A, ICES, VCCI, Complies with the appropriate requirements of RoHS, WEEE

Resource management software: GlobalViewer Enterprise

SDRAM: 512 MB

SPD mode: up to 16 million colors defined in hex code (example: FF0000)

SSI 100C: 9.01” (229 mm) W x 2.91” (74 mm) D x 3.06" (78 mm) H

SSI 100C Custom Sign: 9.01” (229 mm) W x 2.91” (74 mm) D x 6.07" (154 mm) H

SSI 100W Custom Sign: 6.01" (153 mm) H x 2.91" (74 mm) D x 5.79" (147 mm) W

Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Subnet mask: 255.255.255.0

Threshold high to low: >2.0 VDC

Threshold low to high: >2.8 VDC

Utilities: Toolbelt, Room Agent

Wall mount: US 1 gang J-Box or included plastic mud ring with 2 screws and faceplate

Diagram

Resources

Brochure | SSI 100C 60-1961-01 | SSI 100 (ssi_100_revA2.pdf)

Brochure | SSI 100C 60-1961-01 | SSI 100 (ssi_100_revA2_IT.pdf)

Brochure | SSI 100C 60-1961-01 | SSI 100 (ssi_100_revA2_SP.pdf)

Brochure | SSI 100C 60-1961-01 | SSI 100 (ssi_100_revA2_FR.pdf)

Brochure | SSI 100C 60-1961-01 | SSI 100 (ssi_100_revA1_GE.pdf)

Manual | SSI 100C 60-1961-01 | Room Agent User Guide

Manual | SSI 100C 60-1961-01 | SSI 100 Series Custom Engraved Acrylic Lens • Setup Guide

Manual | SSI 100C 60-1961-01 | SSI 100 Series User Guide

Manual | SSI 100C 60-1961-01 | SSI 100C Setup Guide

Manual | SSI 100C 60-1961-01 | SSI 100W Setup Guide

Specifications | SSI 100C 60-1961-01 | SSI 100 Series

Panel Drawing | SSI 100C 60-1961-01 | SSI 100
