Extron SPK16P/1000 16 AWG Plenum Speaker Cable
- • Extron SPK16P/1000 plenum speaker cable, 1000 ft
- • Two 16 AWG bare copper conductors, one pair
- • SuperFlex plenum jacket, 1,000 ft self-dispensing box
- • Sales, replacement and exchange
- • Part# 22-154-03 / 2215403
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

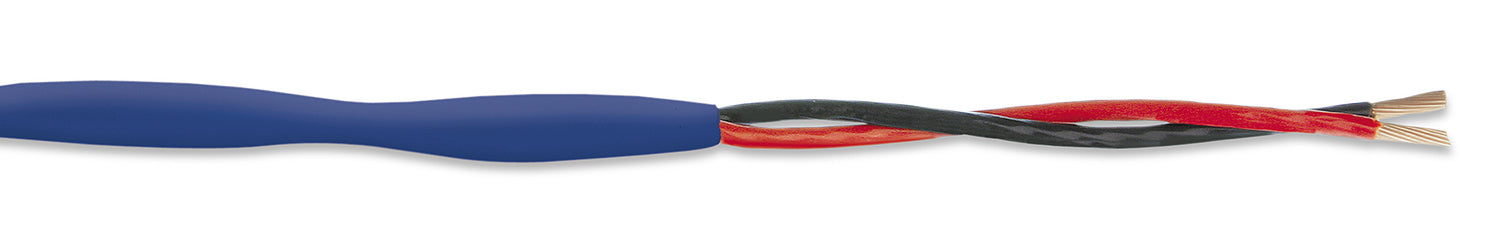

Extron SPK16P/1000 (part number 22-154-03) - plenum-rated 16 AWG Extron speaker cable, 1,000 feet per spool.
Take the standard SPK 16 conductor set - one pair, bare copper, 16 AWG - and put it inside a plenum-rated SuperFlex jacket, and this is the result. It is the part to order when a loudspeaker run passes through a return-air plenum and the inspector will be reading the jacket print. The strand count Extron uses is higher than typical cable of this gauge, which matters more than it sounds when the pull goes through a ceiling grid with limited access. Note Extron's own caution: its plenum bulk cable is rated for North America and is not certified across most of Europe.
Key Capabilities
- Plenum-rated SuperFlex jacket, sequentially numbered
- Two 16 AWG bare copper conductors supplied as one pair
- 1,000 ft (305 m) per spool, in a self-dispensing box
- Elevated strand count for flexibility in confined ceiling work
- Direct non-plenum alternative: Extron SPK16/1000, part 22-151-03
- Listed by Extron under Audio, Speaker & Control Cables
Where It Is Used
Ceiling-speaker distribution in offices and schools, plenum-space runs in healthcare corridors and laboratories, hotel and conference-centre paging, and government or corporate fit-outs where code calls for plenum cable in every air-handling void. Choose it whenever the pathway is a plenum, and use the non-plenum version everywhere else.
Specifications at a Glance
- Conductor gauge: 16 AWG
- Conductors: two, bare copper, one pair
- Jacket: SuperFlex, plenum rated, sequentially numbered
- Spool: 1,000 ft (305 m), self-dispensing box
- Extron part number: 22-154-03
Also referenced as Extron SPK16P/1000, SPK16P-1000, SPK16P1000, SPK 16 Plenum, part number 2215403. Extron's plenum bulk cable is rated for North America and is not certified for use in most European countries.
Frequently asked questions about the Extron SPK16P/1000 16 AWG Plenum Speaker Cable 1000 ft Spool
Does Ampronix sell the Extron SPK16P/1000 16 AWG Plenum Speaker Cable 1000 ft Spool?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SPK16P/1000 16 AWG Plenum Speaker Cable 1000 ft Spool (22-154-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SPK16P/1000 16 AWG Plenum Speaker Cable 1000 ft Spool?
Yes. Ampronix provides sales, replacement and exchange for the Extron SPK16P/1000 16 AWG Plenum Speaker Cable 1000 ft Spool. Call Ampronix for a quote.
What are the key features of the Extron SPK16P/1000 16 AWG Plenum Speaker Cable 1000 ft Spool?
Key points: Plenum-rated SuperFlex jacket, sequentially numbered; Two 16 AWG bare copper conductors supplied as one pair; 1,000 ft (305 m) per spool, in a self-dispensing box; Elevated strand count for flexibility in confined ceiling work. Call Ampronix to confirm details for your application.
Related: Extron products, Video Solutions.
