Extron SPK 18 18 AWG Non-Plenum Speaker Cable 500 ft 22-150-02
Extron SPK 18 18 AWG Non-Plenum Speaker Cable 500 ft 22-150-02
Extron SPK 18 18 AWG Non-Plenum Speaker Cable
- • One pair of 18 AWG bare copper conductors - Extron part 22-150-02
- • Non-plenum SuperFlex jacket with sequential foot numbering
- • Lightest gauge in the Extron SPK range, quickest to route and dress
- • Higher strand count than comparable 18 AWG cable for flexibility
- • Listed as a 500 ft (152 m) spool for smaller distributed audio jobs
- • Current Extron equivalent is SPK18/1000, part 22-150-03
- • Legacy configuration - confirm availability with Ampronix
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

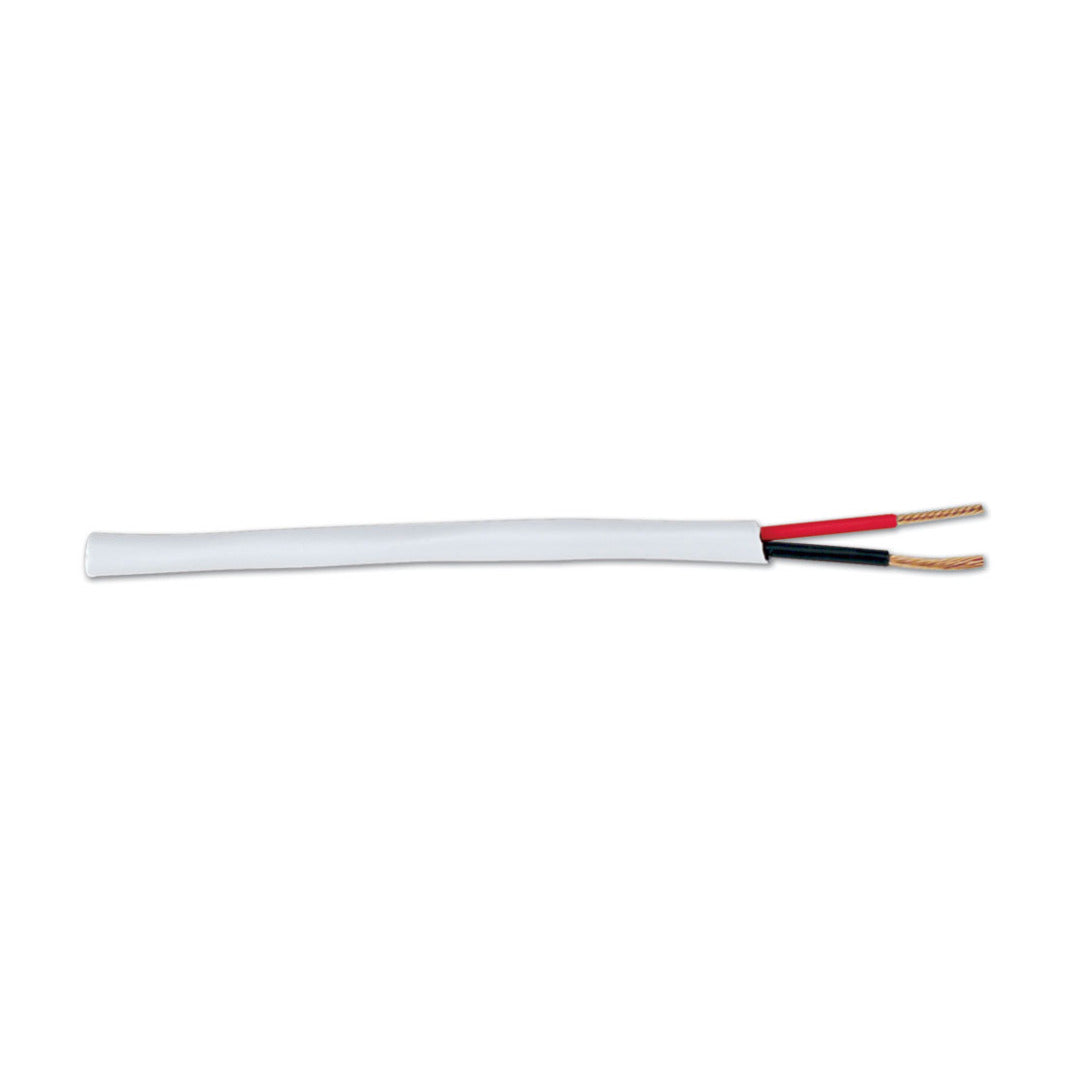

Extron SPK 18 (part number 22-150-02) — 18 AWG non-plenum Extron speaker cable, listed here as a 500 foot (152 m) spool.
Eighteen gauge is the lightest of the three Extron bulk speaker cables, which makes it the fastest to pull, dress and terminate when a job involves a lot of short loudspeaker drops rather than a few long ones. The build is the same across the SPK line: one pair of bare copper conductors under a SuperFlex jacket, with a strand count Extron sets higher than comparable cable so a thin cable does not turn brittle in the hand. This part carries the non-plenum jacket.
Key Capabilities
- One pair of bare copper conductors at 18 AWG
- Non-plenum SuperFlex jacket with sequential numbering
- Smallest diameter in the SPK bulk range, quickest to route
- Listed as a 500 ft (152 m) spool for smaller distributed audio jobs
- Extron's current SPK 18 listings are SPK18/1000 (22-150-03) and SPK18P/1000 (22-153-03)
Where It Is Used
Distributed background music and paging in offices, retail and restaurants, classroom ceiling speakers, meeting-room wall loudspeakers, and control-room monitoring. Extron lists the SPK cables beside its STP20 and STP22 serial control and audio cable families.
Specifications at a Glance
- Conductor gauge: 18 AWG
- Conductors: two, bare copper, one pair
- Jacket: SuperFlex, non-plenum, sequentially numbered
- Spool length as listed: 500 ft (152 m)
- Extron part number: 22-150-02
Availability note: Extron's current SPK 18 part number table lists only the 1,000 foot spools, so treat this 500 foot put-up as a legacy configuration and confirm with Ampronix before ordering. Also referenced as Extron SPK18, SPK-18, part number 2215002.
