Extron SPK 16 16 AWG Non-Plenum Speaker Cable 500 ft 22-151-02
Extron SPK 16 16 AWG Non-Plenum Speaker Cable 500 ft 22-151-02
Extron SPK 16 16 AWG Non-Plenum Speaker Cable
- • One pair of 16 AWG bare copper conductors - Extron part 22-151-02
- • Non-plenum SuperFlex jacket, numbered sequentially along its length
- • Mid-gauge choice between Extron SPK 18 and SPK 14 bulk cable
- • Strand count above comparable 16 AWG cable for flexible routing
- • Listed as a 500 ft (152 m) spool for smaller-scale installs
- • Current Extron equivalent is SPK16/1000, part 22-151-03
- • Legacy configuration - confirm availability with Ampronix
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

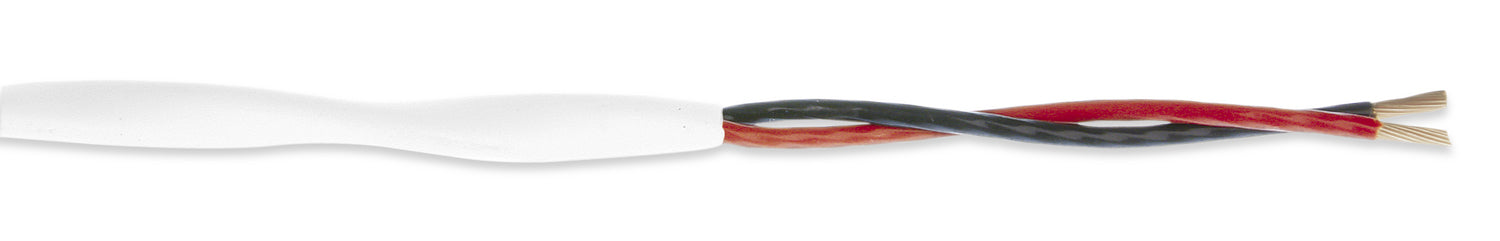

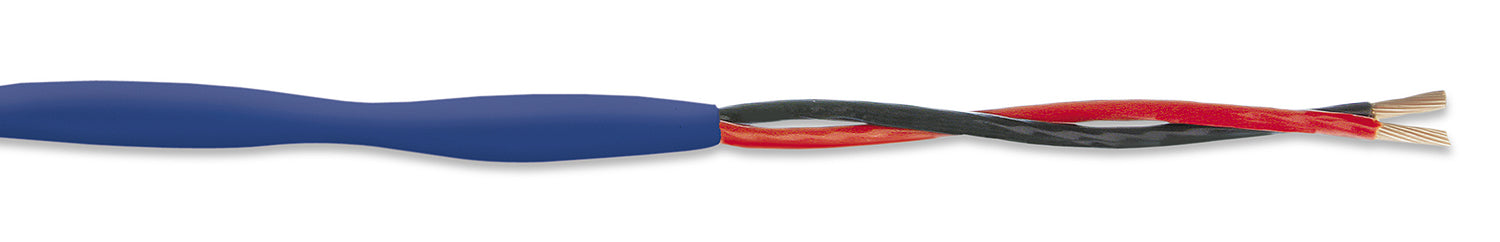

Extron SPK 16 (part number 22-151-02) — 16 AWG non-plenum Extron speaker cable, listed here as a 500 foot (152 m) spool.
Sixteen gauge is the middle option among Extron's three bulk speaker cables, and for most commercial loudspeaker wiring it is the pragmatic pick: more copper than SPK 18, less bulk than SPK 14. Construction follows the family pattern — a single pair of bare copper conductors, wrapped in a SuperFlex jacket, with a strand count Extron sets above comparable cable of the same size. The practical result is a cable that follows a bend instead of springing back at you. This part number carries the non-plenum jacket.
Key Capabilities
- One pair of 16 AWG bare copper conductors
- Non-plenum SuperFlex jacket, sequentially numbered along its length
- Raised strand count for flexible routing through conduit and trays
- Listed as a 500 ft (152 m) spool for smaller-scale installs
- Extron's current SPK 16 listings are SPK16/1000 (22-151-03) and SPK16P/1000 (22-154-03)
Where It Is Used
Training rooms, huddle spaces and divisible meeting rooms, retail and restaurant background audio, auditorium delay loudspeakers, and rack-to-speaker runs in control rooms. Extron files the SPK range under Audio, Speaker & Control Cables in its bulk cables and connectors catalogue.
Specifications at a Glance
- Conductor gauge: 16 AWG
- Conductors: two, bare copper, one pair
- Jacket: SuperFlex, non-plenum, sequentially numbered
- Spool length as listed: 500 ft (152 m)
- Extron part number: 22-151-02
Availability note: Extron's live SPK 16 part number table lists only the 1,000 foot spools, so treat this 500 foot put-up as a legacy configuration and confirm with Ampronix before ordering. Also referenced as Extron SPK16, SPK-16, part number 2215102.
