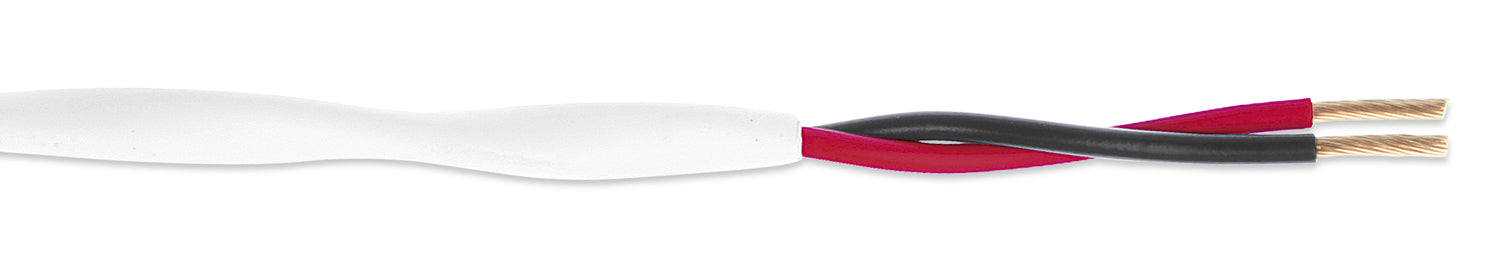

Extron SPK 14 (part number 22-152-02) — 14 AWG non-plenum Extron speaker cable, listed here as a 500 foot (152 m) spool.

SPK 14 is the heaviest conductor gauge in Extron's bulk speaker cable line. Every length is one pair of bare copper conductors, and Extron builds them with more strands per conductor than comparable cable of the same size, so the finished product bends and routes with noticeably less effort. The jacket on this part is the non-plenum SuperFlex construction and carries sequential numbering, which lets an installer read off remaining footage rather than measure it. A half-length put-up suits smaller jobs that would otherwise leave most of a 1,000 foot reel unused.

Key Capabilities

• Two 14 AWG bare copper conductors supplied as one pair
• Non-plenum SuperFlex jacket with sequential foot numbering
• Higher strand count than comparable 14 AWG cable, for easier pulls
• Listed as a 500 ft (152 m) spool, a half put-up for smaller installs
• Extron currently catalogues the SPK 14 family as SPK14/1000 (22-152-03) and SPK14P/1000 (22-155-03)

Where It Is Used

Amplifier-to-loudspeaker wiring in classrooms, meeting rooms, worship spaces, retail and hospitality audio, and control rooms. The 14 AWG gauge is the one designers reach for when a run is long enough that conductor size starts to matter to the loudspeaker design.

Specifications at a Glance

• Conductor gauge: 14 AWG
• Conductors: two, bare copper, one pair
• Jacket: SuperFlex, non-plenum, sequentially numbered
• Spool length as listed: 500 ft (152 m)
• Extron part number: 22-152-02

Availability note: Extron's current SPK 14 part number table shows only the 1,000 foot spools — 22-152-03 non-plenum and 22-155-03 plenum. The 500 foot put-up shown here is a legacy configuration; contact Ampronix to confirm before ordering. Also referenced as Extron SPK14, SPK-14, part number 2215202.
