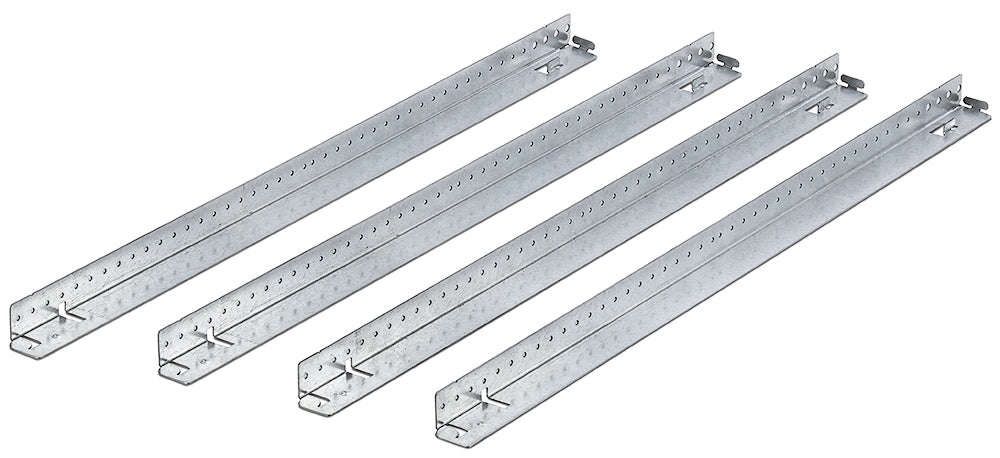

Extron SMK VRE 48 (part number 70-1267-48) — V-rail extension kit, supplied four to a pack, that lengthens the rails shipped with SoundField XD ceiling speakers.

Ceiling grids are not standardised. The V-rails packed with a SoundField XD ceiling speaker are cut for a 2 ft module, so the moment a project turns up with 4 ft (1.2 m) tile spacing the standard rails no longer reach the grid members and the speaker has nothing to bear on. The SMK VRE 48 closes that gap: each extension lengthens a supplied V-rail far enough to span the wider grid, restoring the intended load path. The same extensions also let an SMK C TB tile bridge assembly reach across 4 ft tiles. Four extensions come in a pack, which covers two speaker positions — two rails per speaker.

Key Capabilities

• Extends the V-rails supplied with SoundField XD series ceiling speakers.
• Provides mounting compatibility with 4 ft (1.2 m) ceiling tile grids.

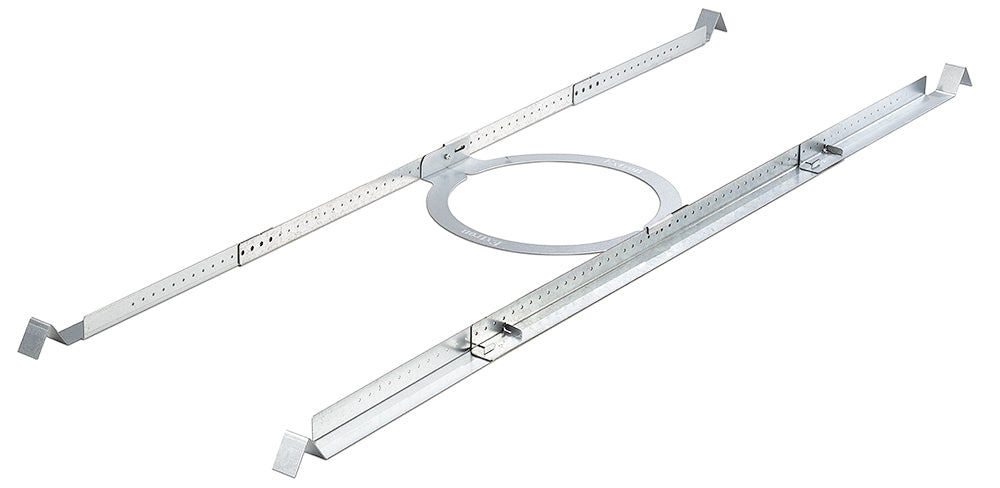

• Also allows an SMK C TB tile bridge ceiling mount to span 4 ft (1.2 m) grids.
• Sold in packs of four, which supports two speakers.
• Straightforward installation, no special tooling.
• Works with NF 4C LP, SF 26CT, SF 26CT LP, SF 3CT LP and SF 3C LP ceiling speakers.

Where It Is Used

Retrofits and refurbishments in buildings with 4 ft ceiling modules — older school and university blocks, hospital and clinic corridors, warehouse offices, and civic buildings — where the ceiling grid was set long before the audio system was specified and the speaker mounting has to adapt to what is already overhead.

Specifications at a Glance

• Pack quantity: four extensions
• Speakers supported per pack: two
• Grid span enabled: 4 ft (1.2 m)
• Compatible speakers: NF 4C LP, SF 26CT, SF 26CT LP, SF 3CT LP, SF 3C LP
• Also extends: SMK C TB Series tile bridge mounts

Also referenced as Extron SMKVRE48, SMK-VRE-48, part number 70126748.
