Extron SMK V SB 33 82-100 (part number 70-1192-03) — VESA mounting kit for large-format installations, carrying the SB 33 A 82-90 and SB 33 A 90-100 sound bars on the display's own VESA mount.

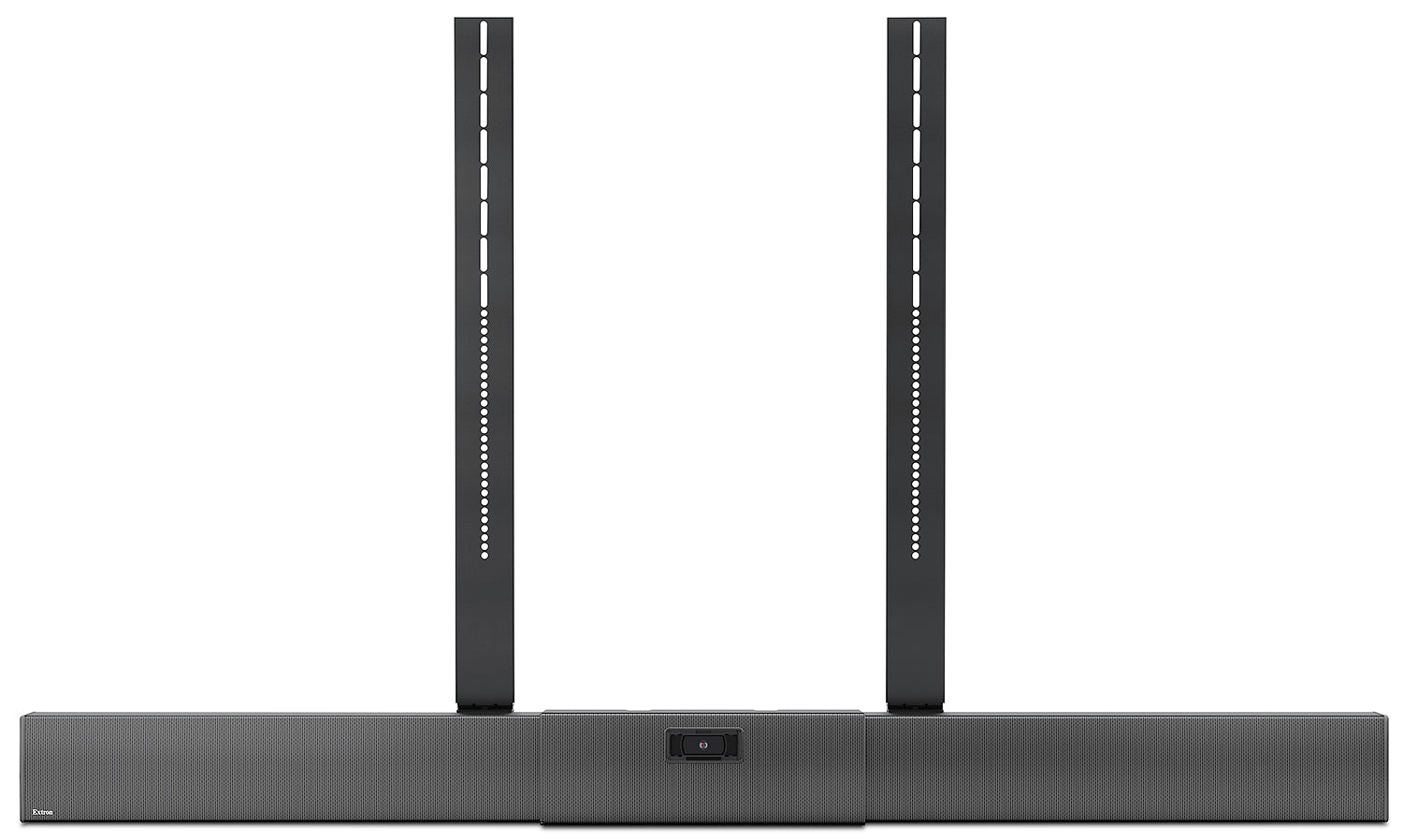

This is the large-screen member of the SMK V SB 33 Series. Where the Plus version covers 46 to 80 inch panels, 70-1192-03 is dimensioned for 82 to 100 inch displays and the wider SB 33 A assemblies that partner them. The structural difference is the metal reinforcing plate: on a sound bar of this span the two halves of the wall plate benefit from being tied together before the speaker assemblies are hooked on, and the plate is supplied for exactly that. Otherwise the method is familiar — long L-brackets sandwich between the display and its VESA mount, short L-brackets carry the wall plate, and the slotted joint between them lets the sound bar face be aligned with the display front, then adjusted up, down or side to side.

Key Capabilities

• Built for the SB 33 A 82-90 and SB 33 A 90-100 sound bars on 82 to 100 inch displays.
• Attaches to the VESA holes on the rear of the display; patterns from 200 mm to 800 mm in 100 mm steps.
• Maximum load limit of 85 lb (38 kg).
• Metal reinforcing plate stiffens the joint between the two wall plate halves.
• Depth, height and lateral adjustment for a flush, aligned finish.
• Accepts display mounting screws up to M8.

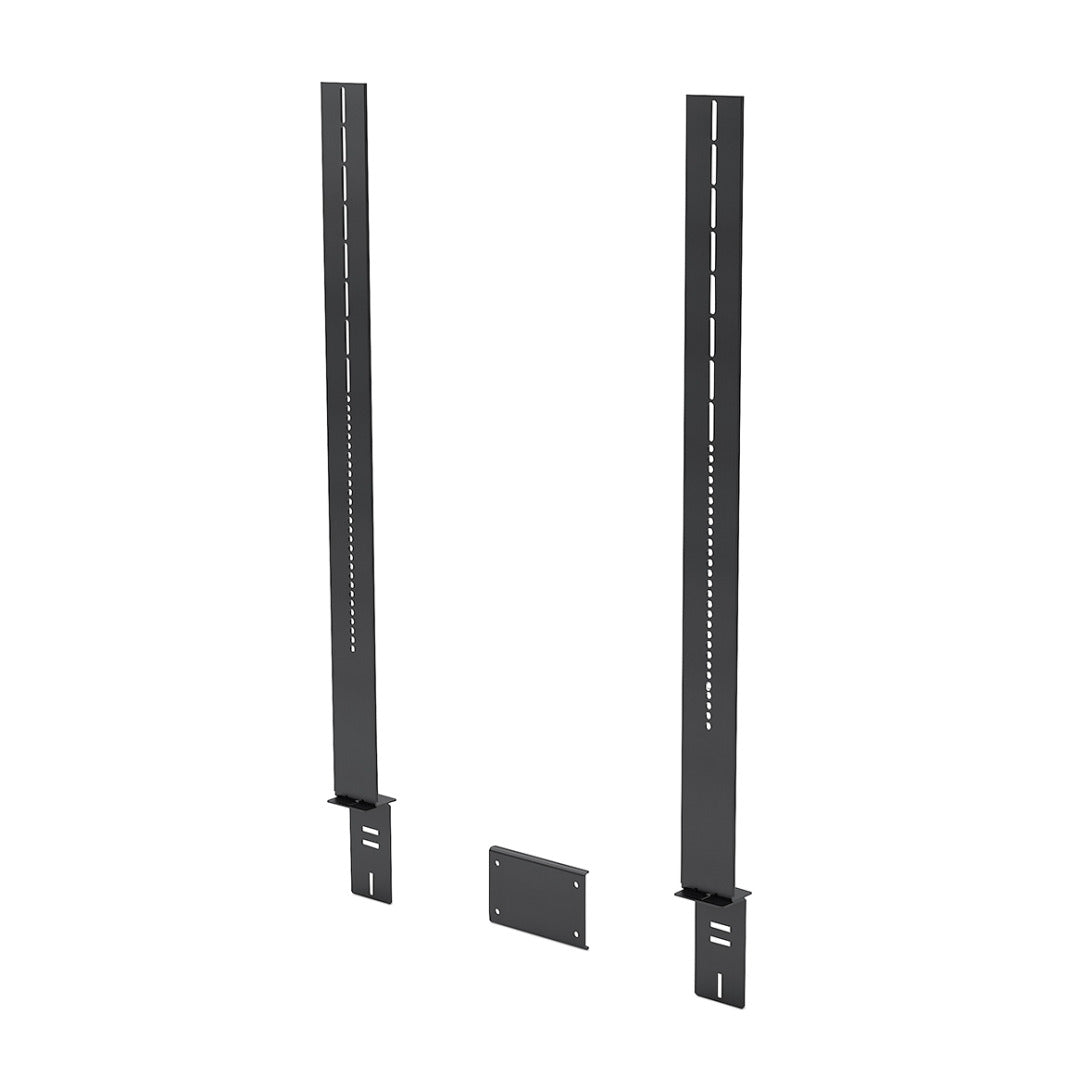

• Hardware pack: 2 long and 2 short L-brackets, reinforcing plate, 4 plastic spacers, 10 bolts, 10 lock washers, 10 washers, 10 wingnuts.

Where It Is Used

Large boardrooms and executive briefing centres, divisible training rooms, broadcast and production review suites, command and operations centres, and premium retail display walls — rooms specified around a 82 to 100 inch panel where the sound bar has to read as part of the display, not as a separate piece of hardware bolted near it.

Specifications at a Glance

• Display size range: 82 in to 100 in
• Maximum load: 85 lb (38 kg)
• VESA pattern range: 200 mm to 800 mm, 100 mm increments
• Compatible speakers: SB 33 A 82-90, SB 33 A 90-100
• Includes metal reinforcing plate

Also referenced as Extron SMKVSB3382100, SMK-V-SB-33-82-100, part number 70119203.
