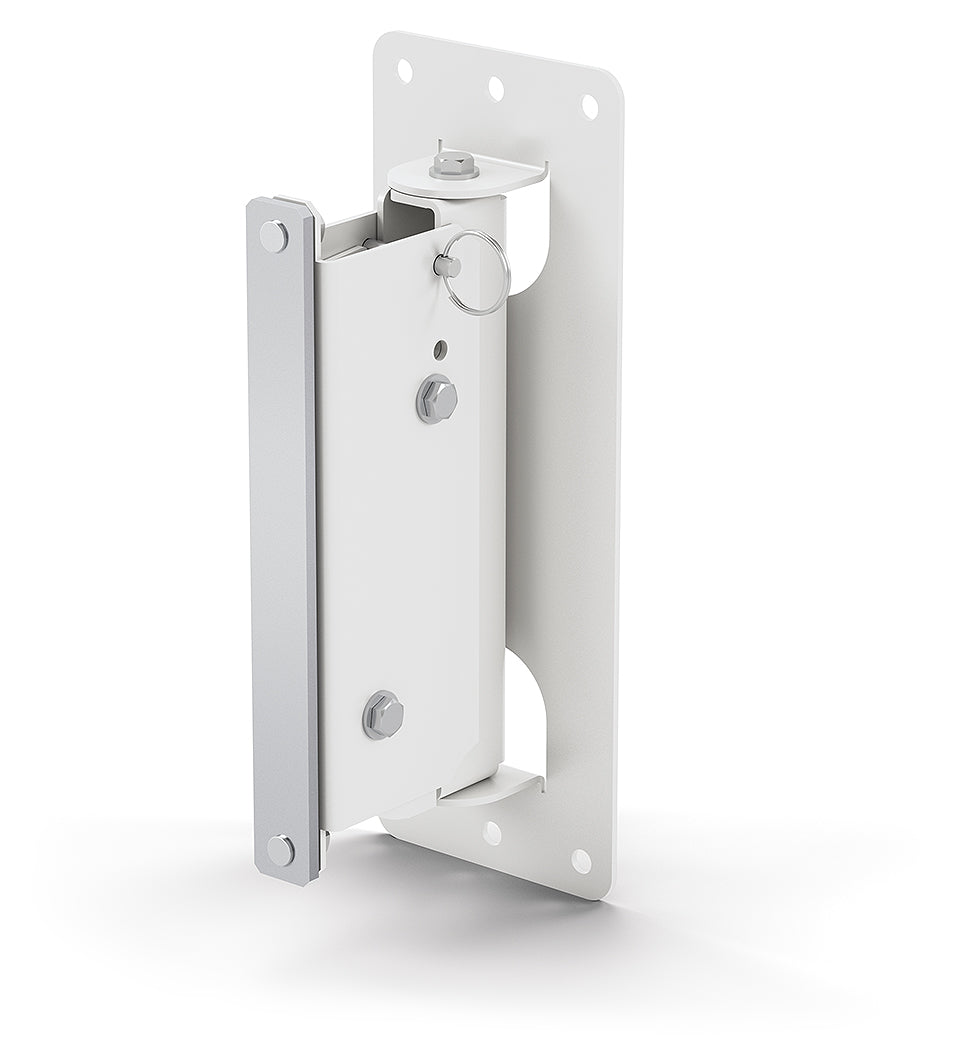

Extron SMK PT CA Pan and Tilt Column Array Wall Mount
- • Extron SMK PT CA white pan and tilt column array mount
- • 130 degrees of pan and 15 degrees of tilt
- • One mount per kit for one CA Series speaker
- • Sales, replacement and exchange
- • Part# 70-1361-03 / 70136103
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron SMK PT CA (part number 70-1361-03) - white single pan and tilt wall mount from the SwiftMount system, for the Extron CA Series column array speaker.
Specify this part when the CA Series array needs real aiming authority and the room is finished light. The head carries two axes: pan through 130°, which rotates the array away from the wall it is bolted to, and tilt through 15°, which brings the vertical pattern down onto the audience. Compare that with the low-profile SMK LP CA, which offers 5° of tilt and no pan at all - the LP is the choice when the array can face straight out and the visual brief wants it flat to the wall. The SMK PT CA arrives as one mount, the quantity a single CA Series speaker takes, and it is steel throughout. Rigging is a one-person operation, and the speaker's T-slot allows height to be trimmed after the wall plate is fixed.
Key Capabilities
- 130° of pan travel to point the array where the seating actually is.
- 15° of tilt for vertical coverage control.
- Ships as a single mount - the quantity one CA Series speaker needs.
- Rigged by one technician, no lifting crew required.
- T-slot on the speaker permits post-anchor height trimming.
- Steel construction sized for CA 43T, CA 83T and CA 163 arrays.
- White finish and paintable to any wall colour.
Where It Is Used
Light-finished worship spaces, university lecture theatres, civic and council chambers, airport and station concourses, and gallery or atrium installations - projects where the array must be aimed off-axis from its mounting wall and the hardware is expected to blend into a pale architectural surface.
Specifications at a Glance
- Pan range: up to 130°
- Tilt range: up to 15°
- Mounts per kit: one, for one speaker
- Construction: all steel, white, paintable
- Compatible speakers: CA 43T, CA 83T, CA 163
Also referenced as Extron SMKPTCA, SMK-PT-CA, part number 70136103.
Frequently asked questions about the Extron SMK PT CA Pan and Tilt Column Array Wall Mount White
Does Ampronix sell the Extron SMK PT CA Pan and Tilt Column Array Wall Mount White?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SMK PT CA Pan and Tilt Column Array Wall Mount White (70-1361-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SMK PT CA Pan and Tilt Column Array Wall Mount White?
Yes. Ampronix provides sales, replacement and exchange for the Extron SMK PT CA Pan and Tilt Column Array Wall Mount White. Call Ampronix for a quote.
What are the key features of the Extron SMK PT CA Pan and Tilt Column Array Wall Mount White?
Key points: 130° of pan travel to point the array where the seating actually is; 15° of tilt for vertical coverage control; Ships as a single mount - the quantity one CA Series speaker needs; Rigged by one technician, no lifting crew required. Call Ampronix to confirm details for your application.
