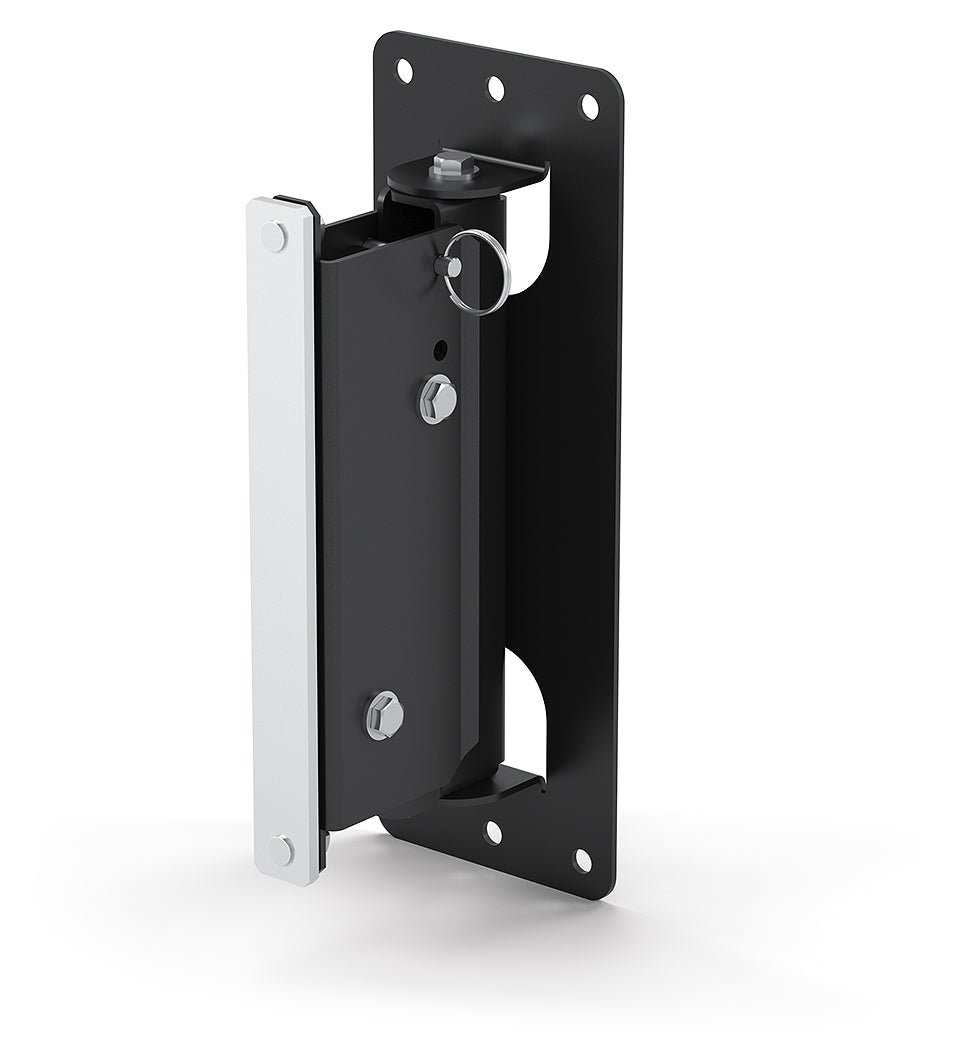

Extron SMK PT CA (part number 70-1361-02) — black single pan and tilt wall mount from the SwiftMount system, for the Extron CA Series column array speaker.

A column array is a directional device, and in most rooms the wall you can fix it to is not square to the audience you need to cover. The SMK PT CA answers that with a genuine two-axis head: 130° of pan swings the array horizontally off the wall plane, and 15° of tilt drops the pattern onto the seating. That is a far wider working envelope than the low-profile SMK LP CA, which trades the pan axis for a flatter installed profile. This is Extron's replacement mount for the CA Series, fabricated entirely in steel, and one technician can hang it — the CA Series T-slot lets the speaker height be corrected after the plate is anchored rather than requiring the holes to be redrilled. One mount per kit, which is what a single CA Series speaker takes.

Key Capabilities

• Up to 130° of pan for horizontal aiming away from the wall plane.

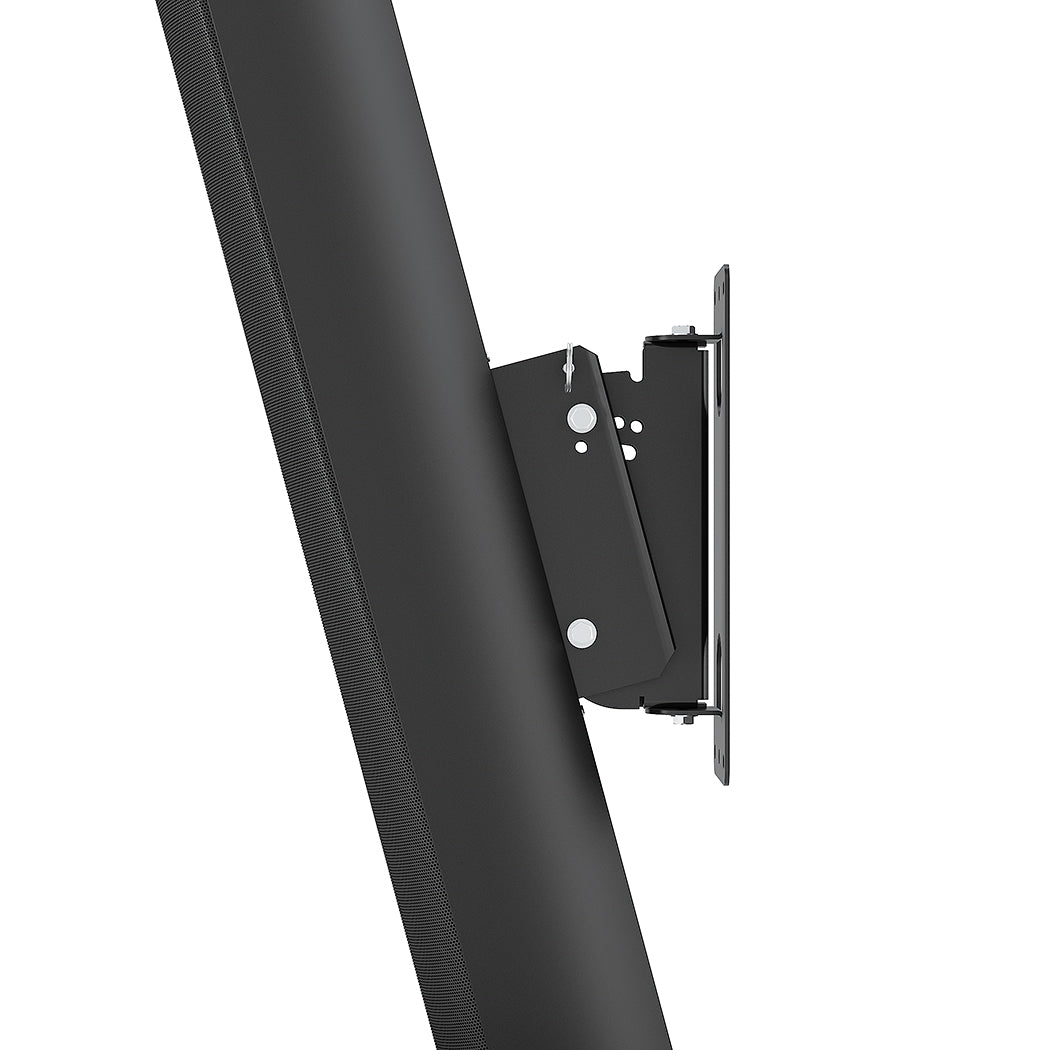

• Up to 15° of tilt to angle coverage down onto the listening area.
• A single mount is supplied, which is the requirement for one CA Series speaker.
• Quick one-person installation.

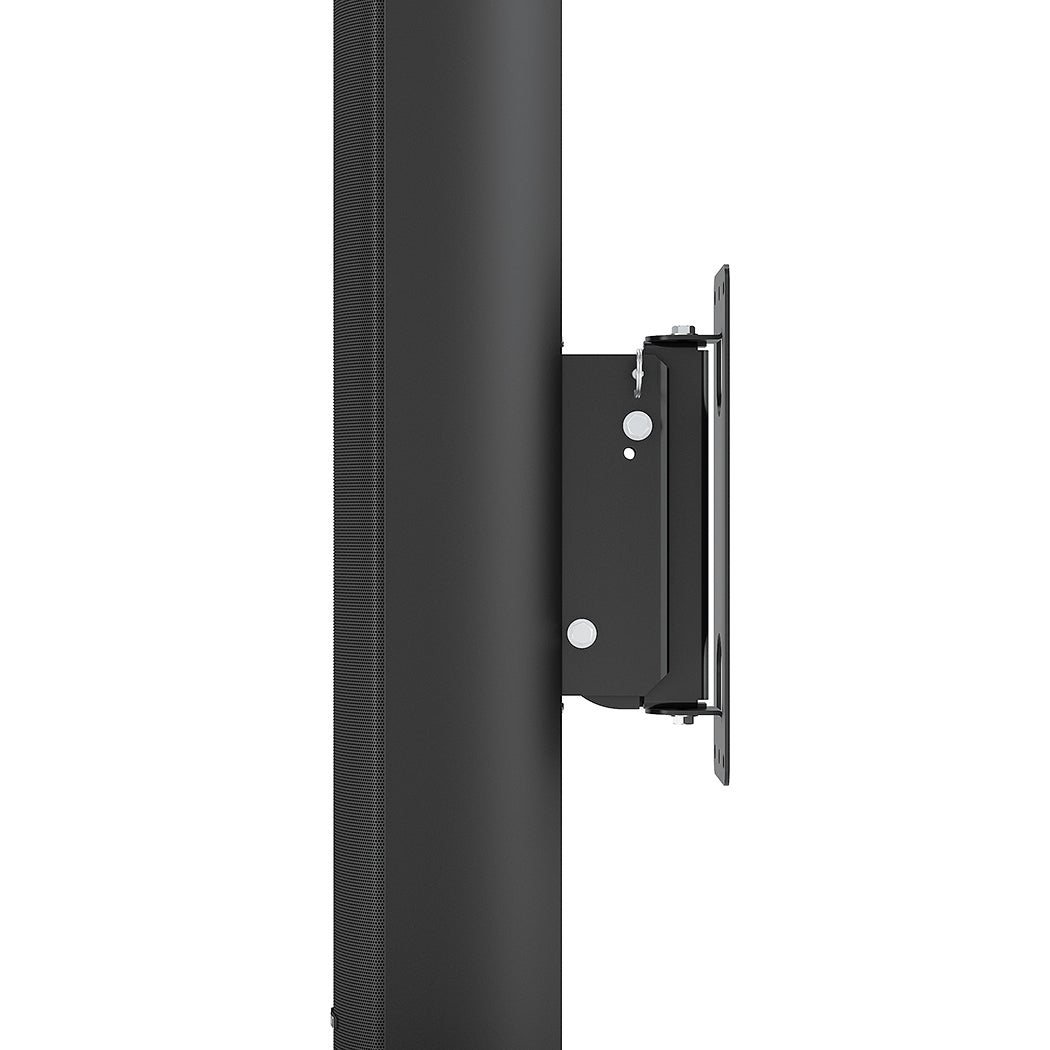

• Height adjusts through the T-slot on the CA Series speaker after anchoring.
• All-steel construction; fits CA 43T, CA 83T and CA 163.
• Black finish and paintable.

Where It Is Used

Worship auditoriums with angled seating, courtrooms and council chambers, transport concourses, sports and recreation halls, and corporate town-hall spaces — rooms where the available wall and the required coverage angle do not line up, and the mount has to close that gap without adding a truss or a custom bracket.

Specifications at a Glance

• Pan range: up to 130°
• Tilt range: up to 15°
• Mounts per kit: one, for one speaker
• Construction: all steel, black, paintable
• Compatible speakers: CA 43T, CA 83T, CA 163

Also referenced as Extron SMKPTCA, SMK-PT-CA, part number 70136102.
