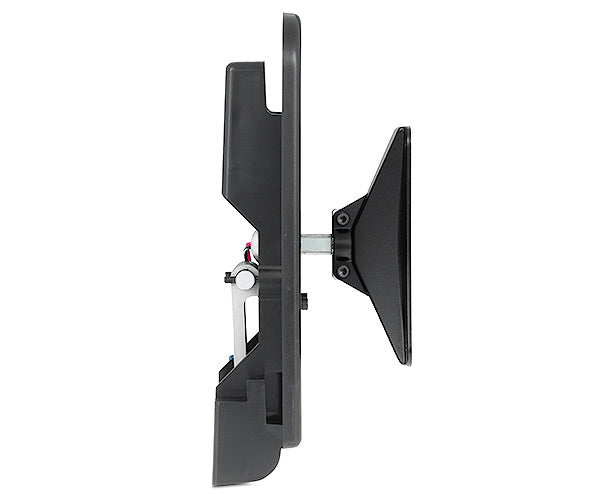

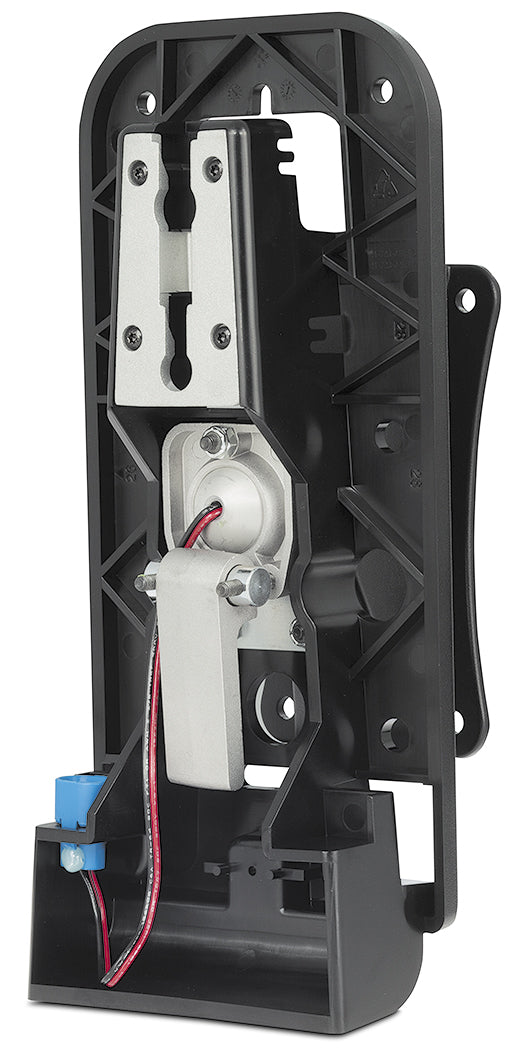

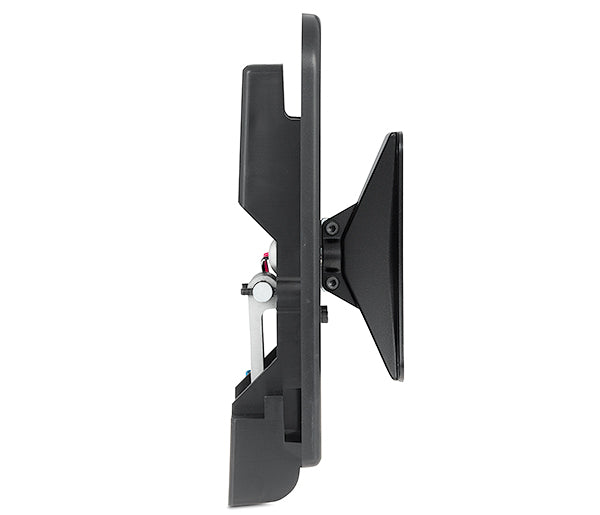

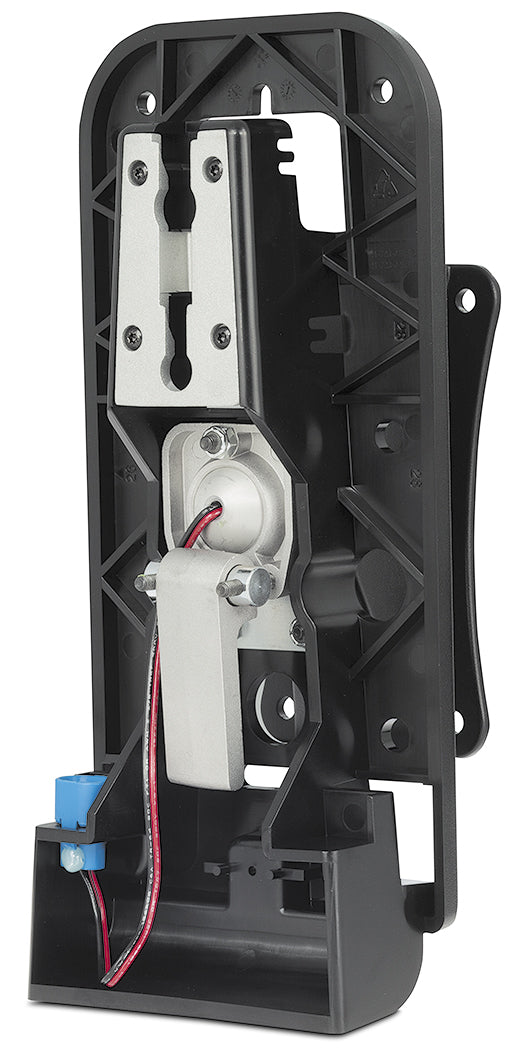

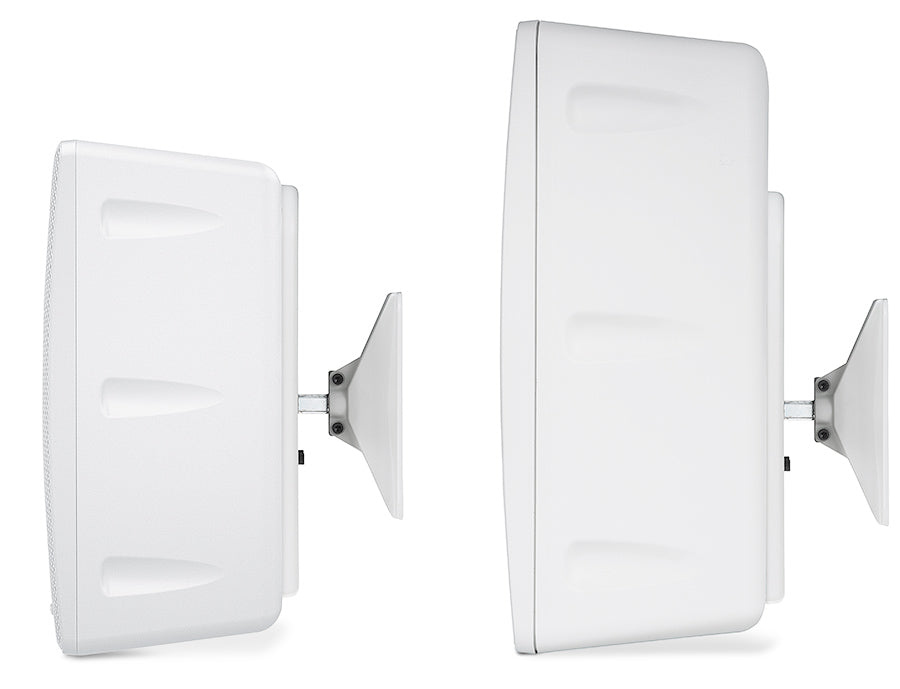

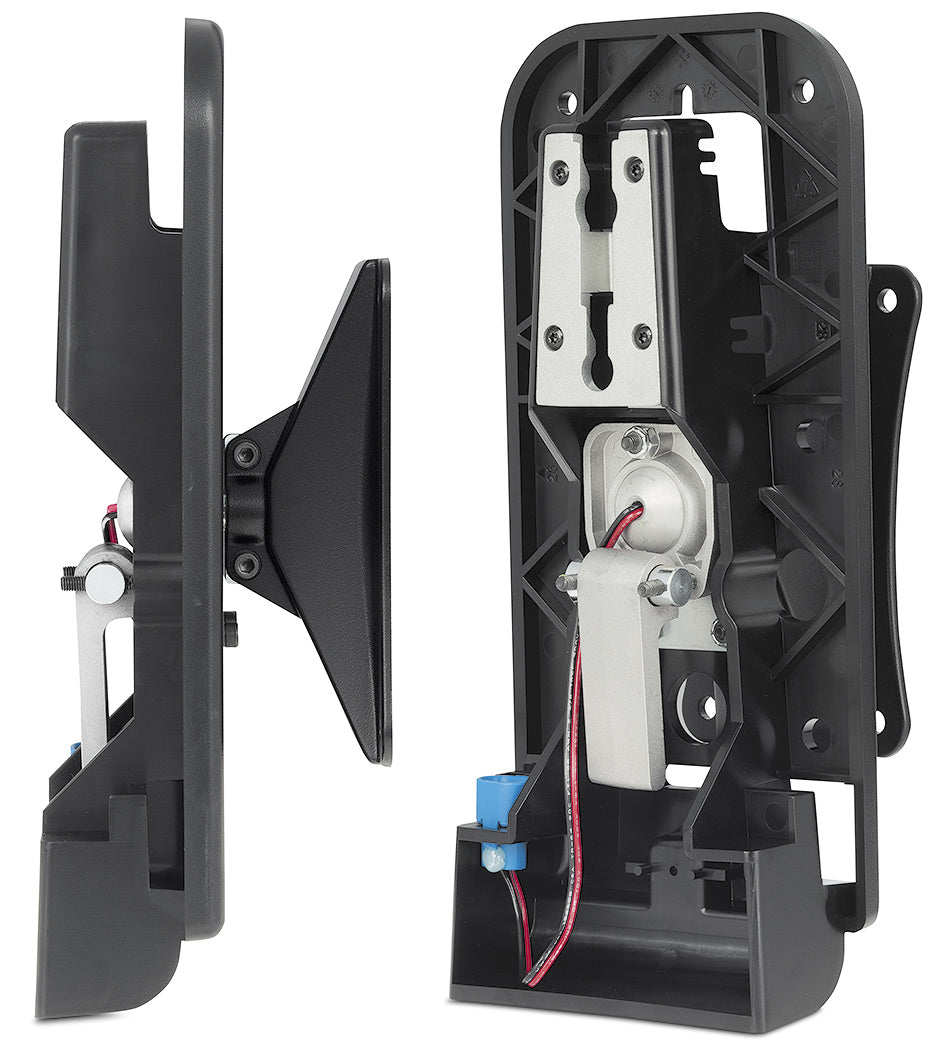

Extron SMK P SM 26/28 (part number 70-978-02) — black pivot mount kit, supplied as a pair, for the SM 26 and SM 28 SpeedMount surface mount speakers.

The standard SpeedMount plate fixes a speaker flat to the surface. That is fine when the listener is directly in front of it and unhelpful everywhere else. The SMK P SM 26/28 replaces that plate with a pivoting head: the speaker turns a full 360° in its cradle and the pivot itself tips the speaker off-axis, so a single mounting position can be aimed at a seating block, a lectern, or a bay of workstations. The kit also keeps the trade sequence clean. The electrician terminates speaker cable to the mount's built-in contacts during rough-in; weeks later the AV installer slides the speaker on, and it locks and connects in the same motion. Raceway access is designed in for surface-run cable.

Key Capabilities

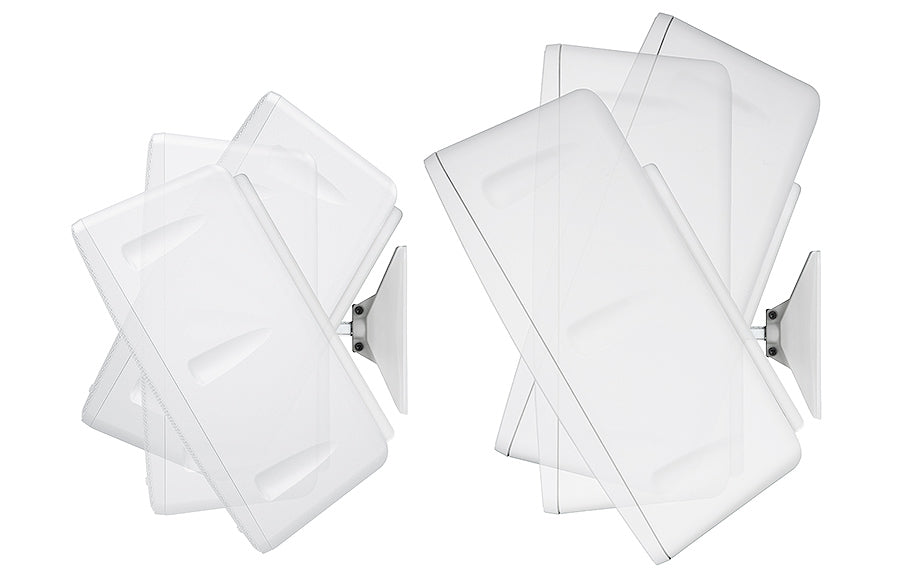

• Full 360° speaker rotation for unrestricted aiming.
• SM 26: 30° of pivot left, right, downward or upward.
• SM 28: 30° of pivot left, right or downward, and 20° upward.
• One motion attaches the speaker to the wiring contacts and locks it in place.
• Mount can be extended or retracted for precise speaker positioning.
• Pivot orientation holds its setting when the speaker is removed and refitted.
• Cable raceway access for surface-mounted wiring runs.

Where It Is Used

Lecture rooms and flat-floor classrooms, gymnasiums and multipurpose halls, retail floors, warehouse and industrial paging, and conference rooms where the speaker position is dictated by the building structure rather than by the seating — anywhere the mount has to make up the difference between where the speaker can go and where it needs to point.

Specifications at a Glance

• Rotation: 360°
• SM 26 pivot: 30° left, right, down or up
• SM 28 pivot: 30° left, right or down; 20° up
• Compatible speakers: SM 26, SM 28
• Sold as: pair, black finish

Also referenced as Extron SMKPSM2628, SMK-P-SM-26-28, part number 7097802.
