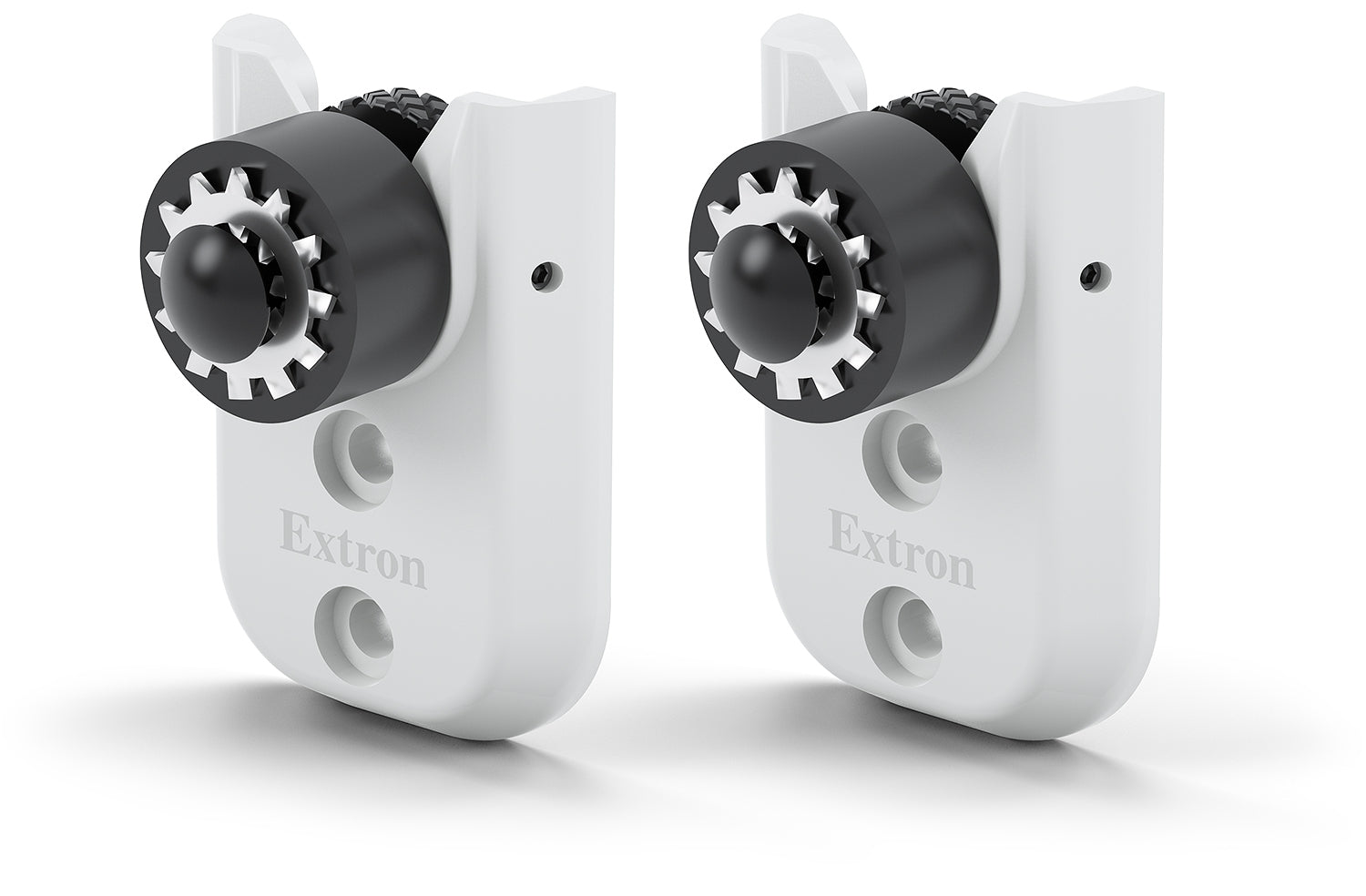

Extron SMK LP CA (part number 70-1364-03) — white two-piece low-profile wall mounting system for the Extron CA Series column array speaker.

This is the white-finish version of Extron's low-profile SwiftMount bracket, intended for light-coloured walls and ceilings where a black mount would read as a dark bar behind the loudspeaker. Functionally it is identical to the black 70-1364-02: two steel pieces that keep the column array close to the wall plane and allow up to 5° of tilt, which is enough to angle a column down onto the audience without the cost or bulk of a pan-and-tilt yoke. The kit contains the two mounts needed for a single CA Series speaker. Rigging is a one-person job, and because the CA Series carries a T-slot on its rear face, final height can be dialled in after the wall plates are anchored. Paintable if an exact colour match is required.

Key Capabilities

• Up to 5° tilt — sufficient downward aim for most fixed column-array coverage.
• Kit contains two mounts, which is what one CA Series speaker requires.
• Installs by a single technician.
• T-slot on the speaker permits height trimming after the plates are fixed.
• Steel throughout; rated for the CA 43T, CA 83T and CA 163.
• White finish, and paintable when the wall colour is non-standard.

Where It Is Used

Worship auditoriums with pale acoustic treatment, university lecture halls, airport and rail concourses, gallery and museum spaces, and modern corporate town-hall rooms — installations where the column array must deliver clear speech and simultaneously stay visually recessive against a light wall.

Specifications at a Glance

• Tilt range: up to 5°
• Mounts per kit: two, for one speaker
• Construction: all steel
• Finish: white, paintable
• Compatible speakers: CA 43T, CA 83T, CA 163

Also referenced as Extron SMKLPCA, SMK-LP-CA, part number 70136403.
