Extron SMK LP CA Low-Profile Column Array Wall Mount
- • Extron SMK LP CA black low-profile column array mount
- • Up to 5 degrees of tilt, two mounts per kit
- • All-steel build for CA 43T, CA 83T and CA 163
- • Sales, replacement and exchange
- • Part# 70-1364-02 / 70136402
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

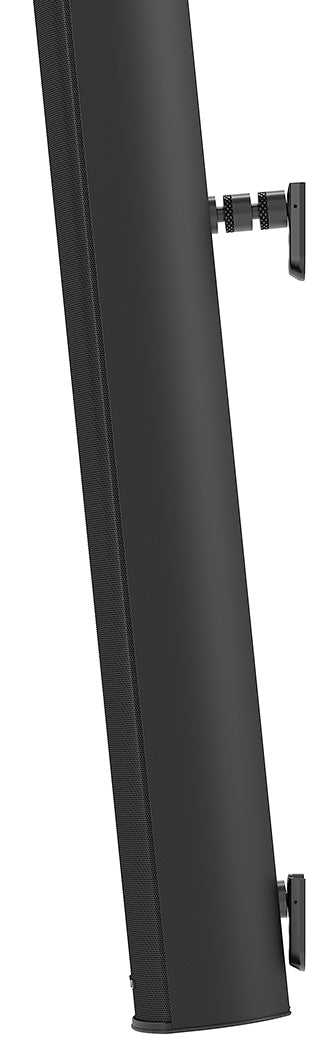

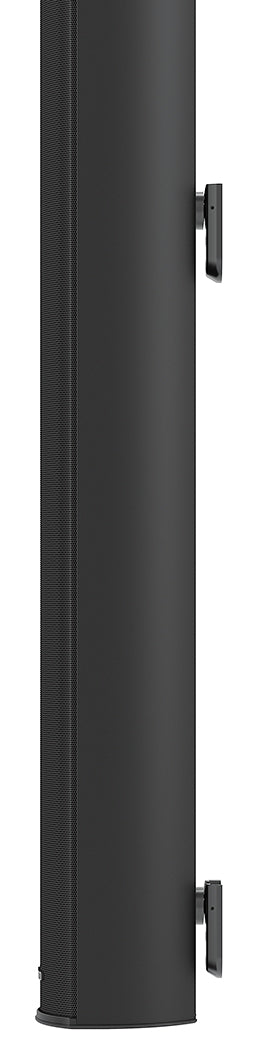

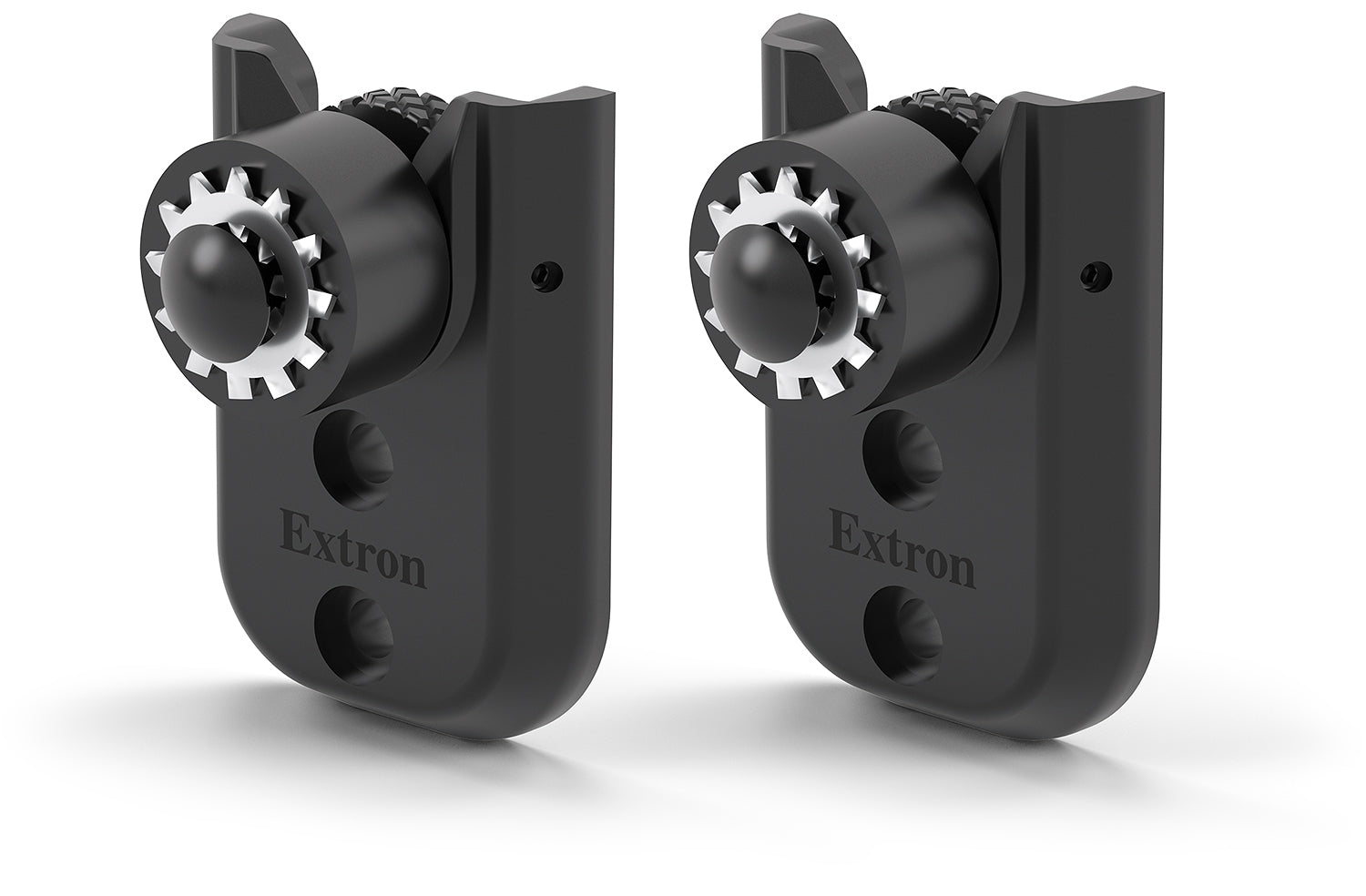

Extron SMK LP CA (part number 70-1364-02) - black two-piece low-profile wall mounting system for the Extron CA Series column array speaker.
Column arrays only need aiming, not steering. Where a room's coverage is settled by speaker placement and a few degrees of downward angle, a full pan-and-tilt yoke is hardware you pay for and never use. The SMK LP CA is the alternative: a two-piece bracket that holds the array tight to the wall and gives up to 5° of tilt for final aim. It is a replacement and spares item for the SwiftMount system, built entirely from steel, and a single installer can hang it - the speaker's T-slot lets the mounting height be fine-tuned after the wall plates are set rather than requiring a second attempt at the anchors. Supplied in black, and paintable if the wall finish demands it.
Key Capabilities
- Up to 5° of tilt for aiming the array at the listening plane.
- Two mounts ship in the kit - the pair required for one CA Series speaker.
- Quick one-person installation, no second set of hands needed.
- Mounting height adjusts via the T-slot machined into the CA Series speaker.
- All-steel construction sized for CA 43T, CA 83T and CA 163 column arrays.
- Black finish, paintable to match the wall.
Where It Is Used
Houses of worship, lecture theatres, transport terminals, museums and atria, and corporate all-hands spaces - rooms where a column array is wall-mounted for speech intelligibility and the visual brief calls for the loudspeaker to sit as close to the wall plane as possible.
Specifications at a Glance
- Tilt range: up to 5°
- Mounts per kit: two, for one speaker
- Construction: all steel
- Finish: black, paintable
- Compatible speakers: CA 43T, CA 83T, CA 163
Also referenced as Extron SMKLPCA, SMK-LP-CA, part number 70136402.
Frequently asked questions about the Extron SMK LP CA Low-Profile Column Array Wall Mount Black
Does Ampronix sell the Extron SMK LP CA Low-Profile Column Array Wall Mount Black?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SMK LP CA Low-Profile Column Array Wall Mount Black (70-1364-02). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SMK LP CA Low-Profile Column Array Wall Mount Black?
Yes. Ampronix provides sales, replacement and exchange for the Extron SMK LP CA Low-Profile Column Array Wall Mount Black. Call Ampronix for a quote.
What are the key features of the Extron SMK LP CA Low-Profile Column Array Wall Mount Black?
Key points: Up to 5° of tilt for aiming the array at the listening plane; Two mounts ship in the kit - the pair required for one CA Series speaker; Quick one-person installation, no second set of hands needed; Mounting height adjusts via the T-slot machined into the CA Series speaker. Call Ampronix to confirm details for your application.
