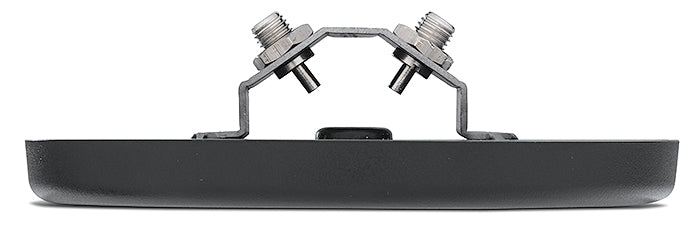

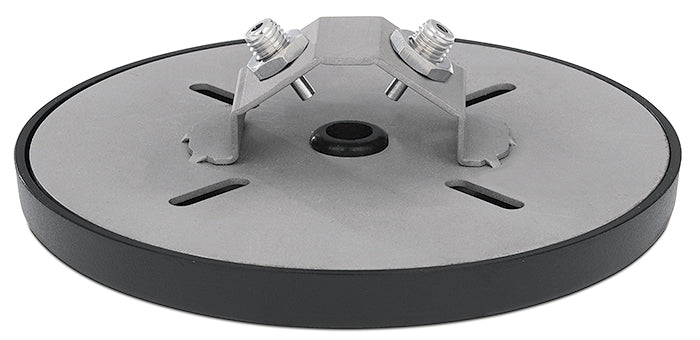

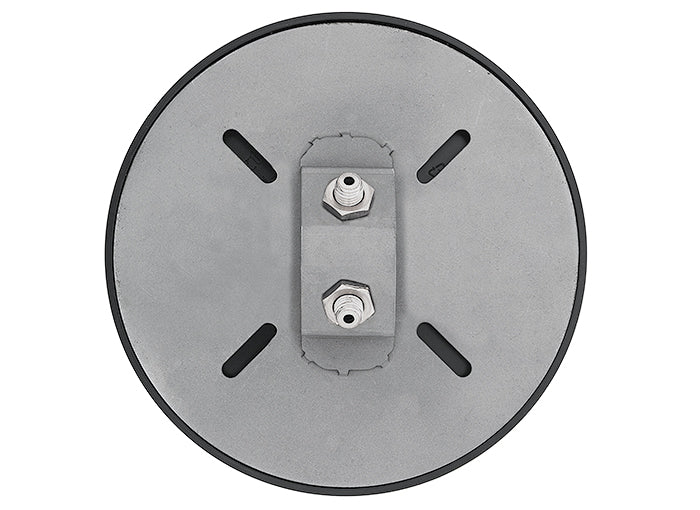

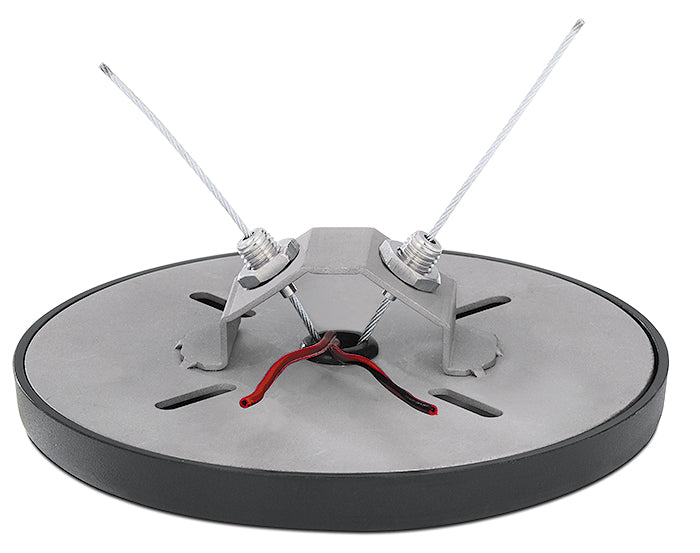

Extron SMK C SF 26PT (part number 70-1251-02) — a black-finish pair of ceiling surface mount brackets that let an SF 26PT or SF 28PT pendant speaker attach directly to a hard ceiling instead of hanging from suspension cable.

Each bracket connects to a standard ceiling electrical box, letting integrators surface-mount the pendant speaker where cable suspension is impractical or undesirable for the space. Extron specifies a mounting screw hole pattern between 2.36" and 3.50" (60 mm to 89 mm) and requires the electrical box to be rated for the mounted weight; with this kit and 15 ft of PendantConnect cable attached, an SF 26PT weighs 11.5 lbs (5.2 kg). The bracket finish is paintable to match surrounding ceiling surfaces.

Key Capabilities

• Converts SF 26PT or SF 28PT suspension mounting to hard-ceiling surface mounting
• Mounts to a standard ceiling electrical box, no separate structural bracket needed
• Sold in pairs, black finish, paintable to match ceiling color
• Mounting screw hole pattern spans 2.36" to 3.50" (60 mm to 89 mm)

Where It Is Used

The SMK C SF 26PT is specified where an SF 26PT or SF 28PT pendant speaker must mount to a finished hard ceiling with an existing electrical box rather than hang from overhead suspension cable.

Specifications at a Glance

• Sold in pairs, black finish
• Compatible with SF 26PT and SF 28PT pendant speakers
• SF 26PT with kit and 15 ft PendantConnect cable weighs 11.5 lbs (5.2 kg)

Also referenced as Extron SMKCSF26PT, SMK-C-SF-26PT, part number 701251-02.
