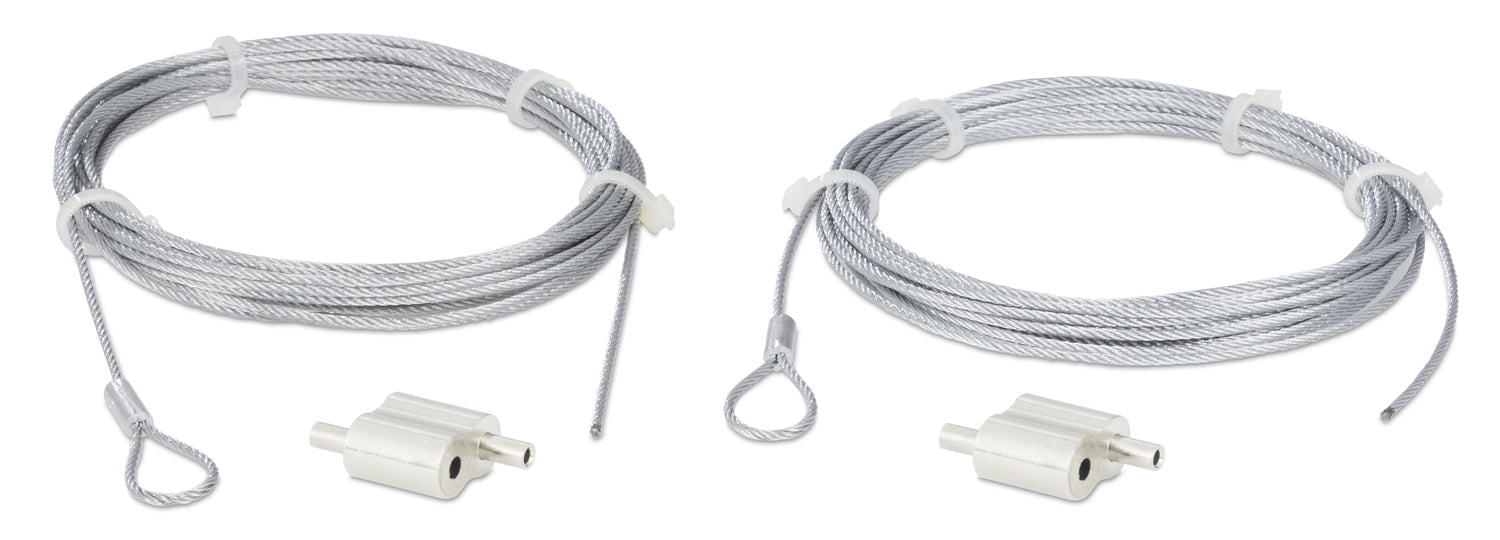

Extron SMK A 2C (part number 70-1250-02) — a two-cable aircraft cable kit for supporting an SF 26PT or SF 28PT pendant speaker between ceiling beams.

Each of the two 15 ft (4.5 m) aircraft cables uses a looping gripper for quick securing and length adjustment during installation. The 2-cable configuration is intended for suspending the speaker between separate ceiling beams rather than from a single overhead point, while Extron's related 4-cable kit (SMK A 4C) is specified where local seismic code requires restraint of lateral movement instead.

Key Capabilities

• Two 15 ft (4.5 m) aircraft cables per kit
• Looping gripper mechanism for easy securing and field adjustment
• Purpose-built for suspending SF 26PT and SF 28PT pendant speakers between ceiling beams
• Compatible with the PCC-2 CLK cable lock kit for PCC-2 PendantConnect speaker cable

Where It Is Used

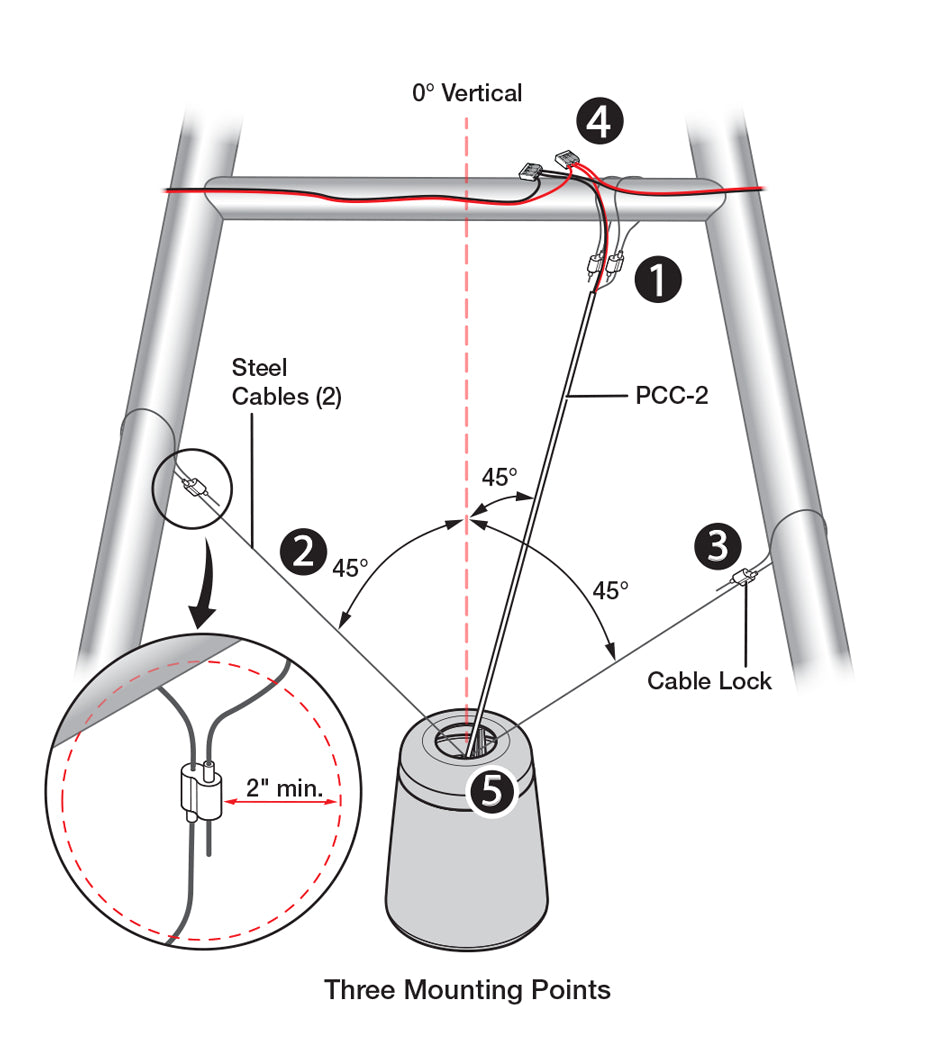

The SMK A 2C is specified on pendant speaker installs in open-plenum ceilings where a single overhead attachment point is not available and the SF 26PT or SF 28PT must instead span between two ceiling beams.

Specifications at a Glance

• 2-cable kit for SF 26PT and SF 28PT pendant speakers
• 15 ft (4.5 m) cable length
• Compatible with PCC-2 PendantConnect speaker cable accessories

Also referenced as Extron SMKA2C, SMK-A-2C, part number 701250-02.
