Extron SMK 6 (part number 70-1331-32) is the surface mount kit Extron builds for the TLP Pro 1035M touchpanel.

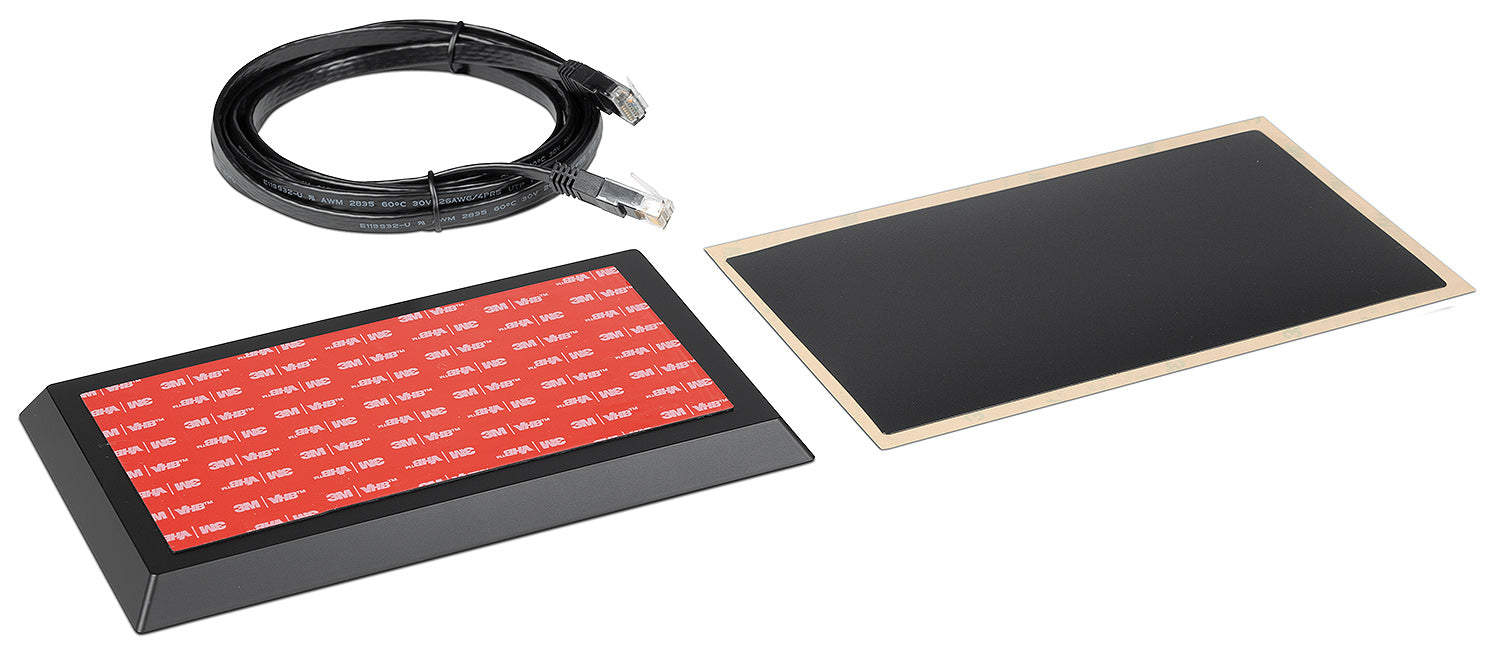

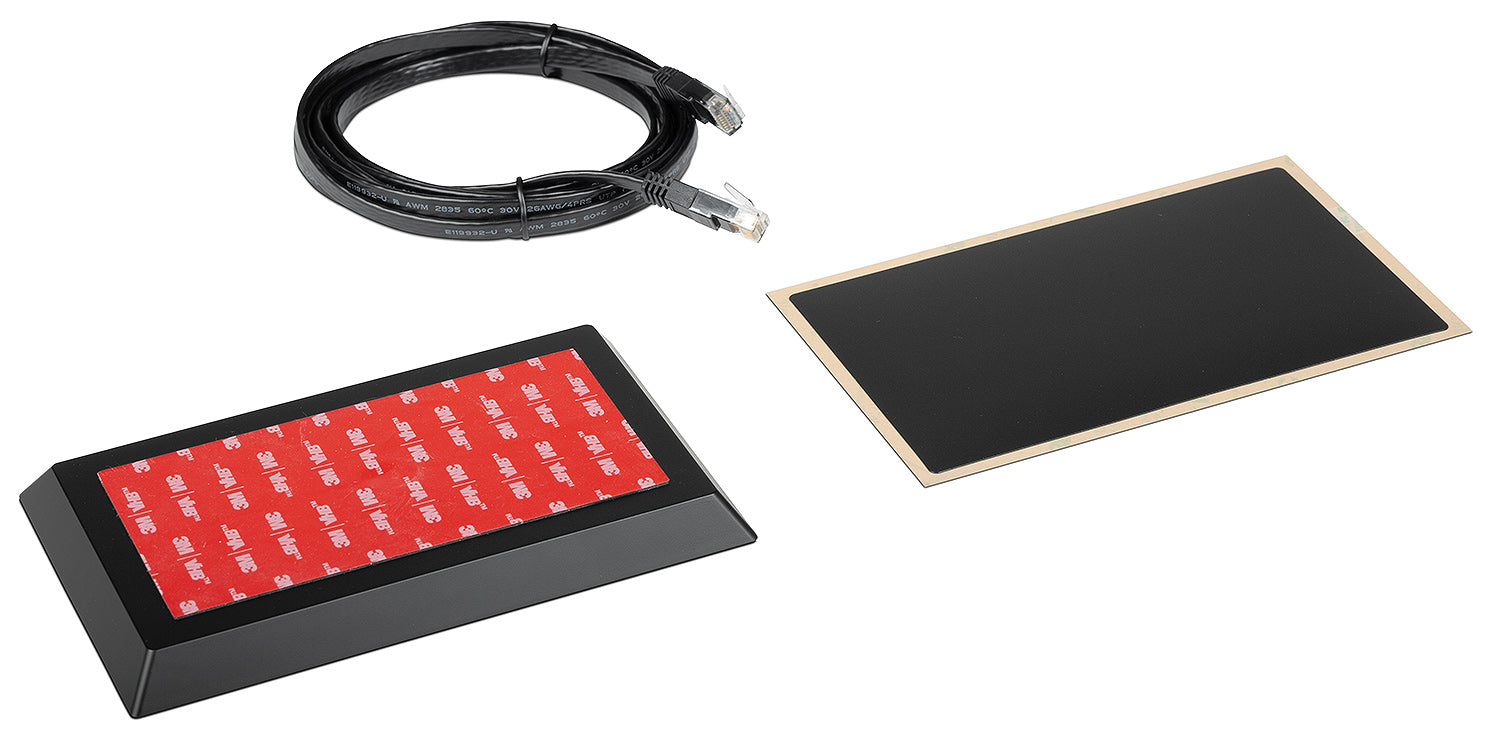

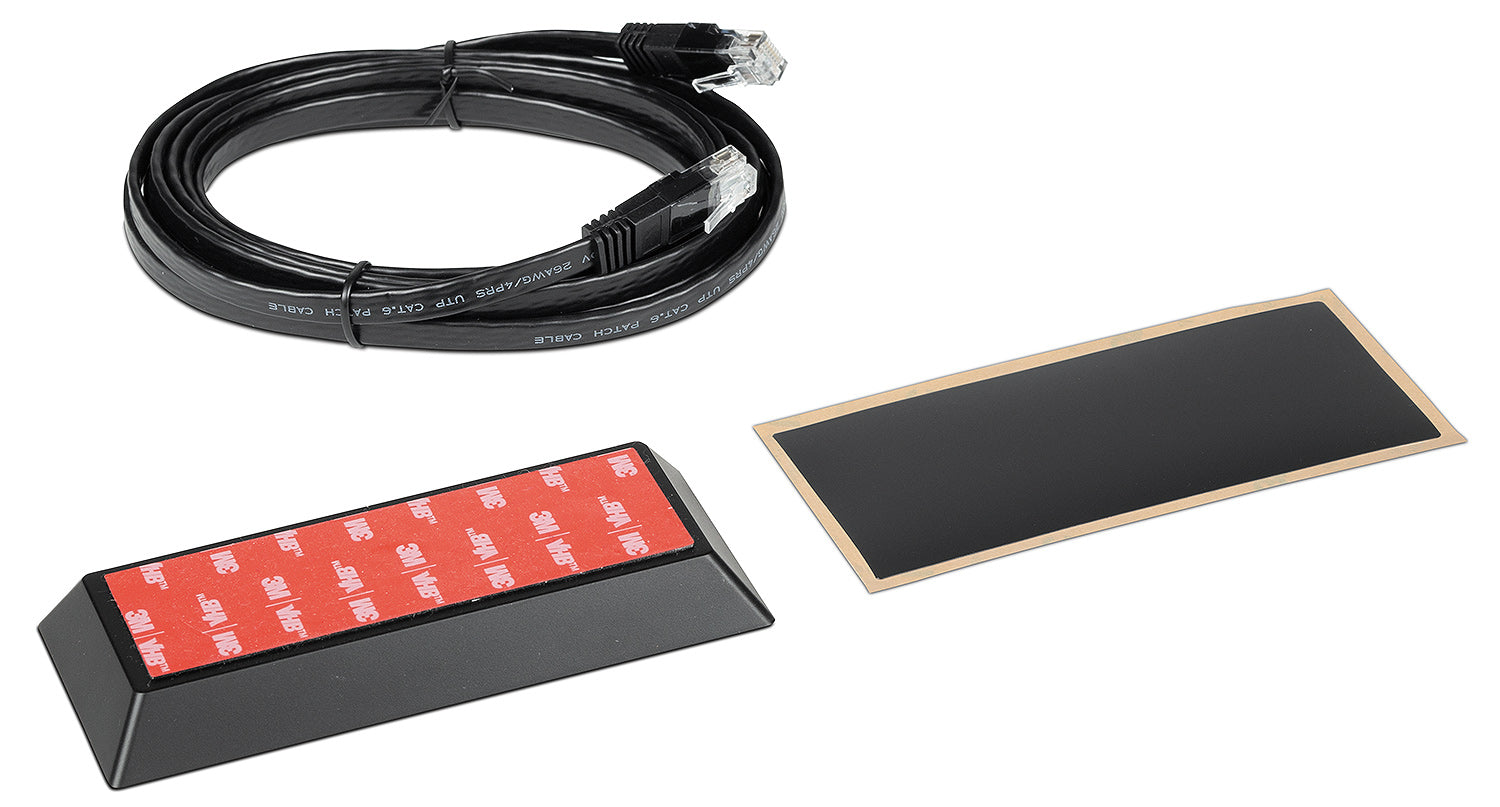

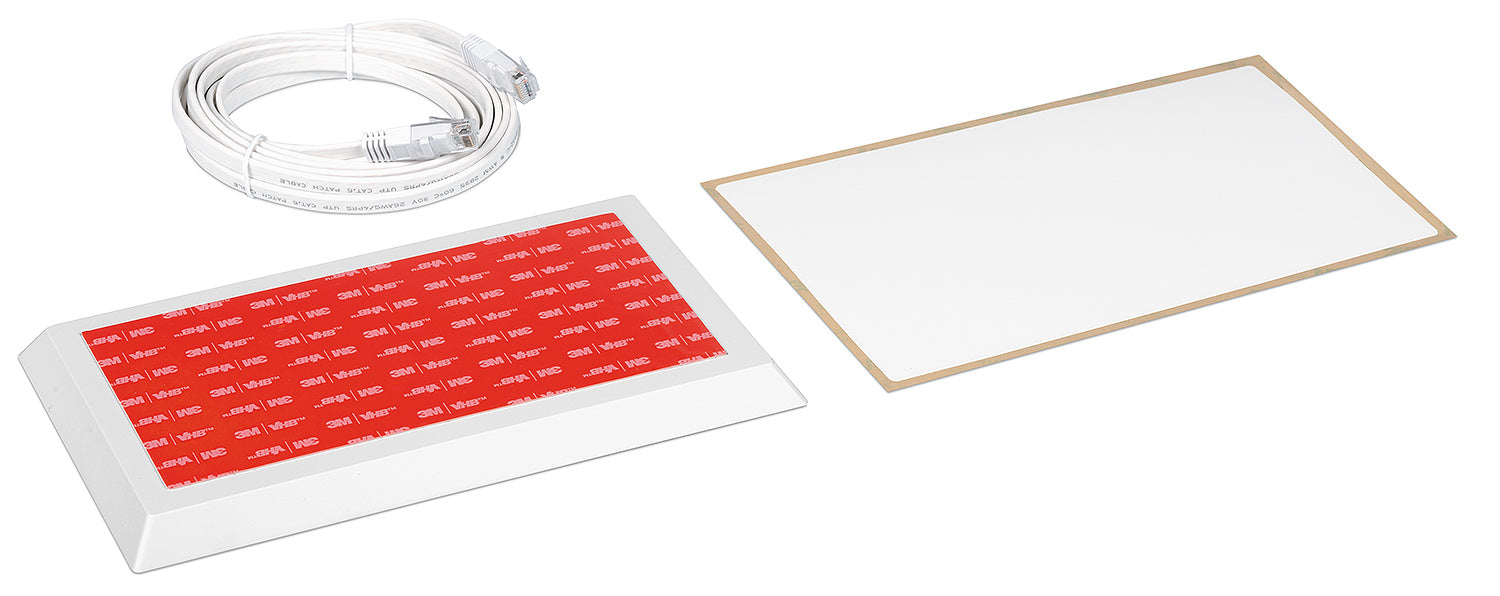

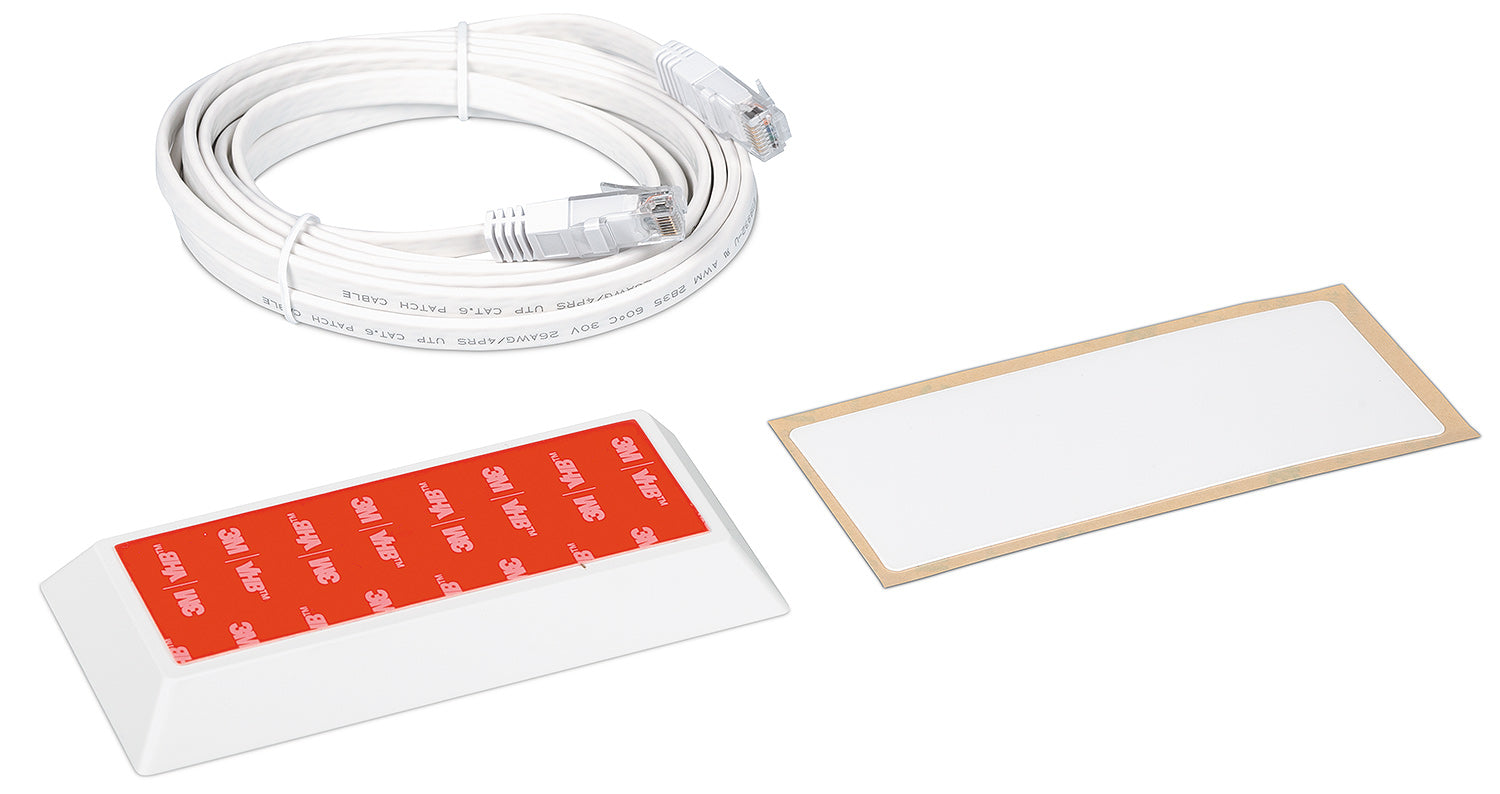

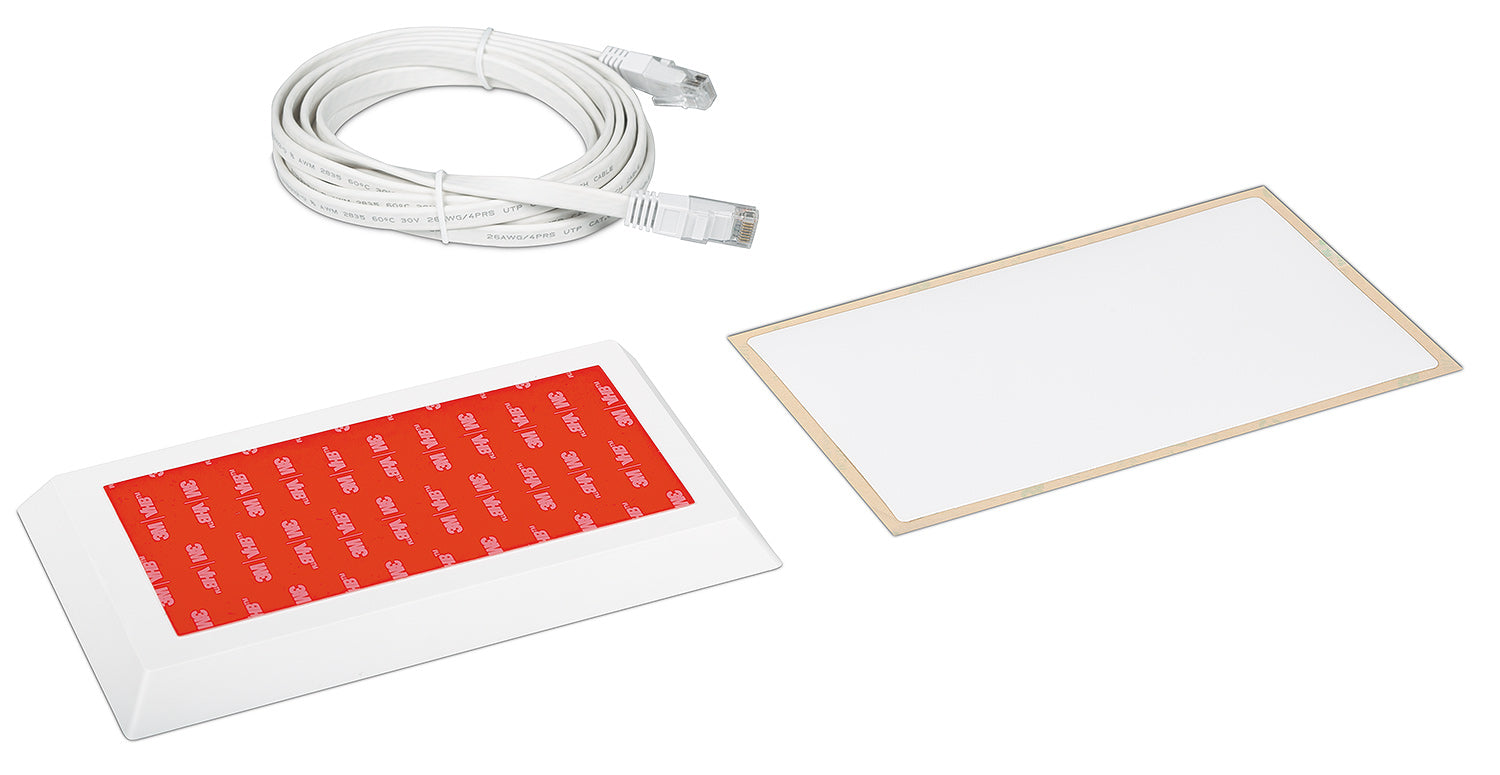

The SMK 6 hides mounting hardware and Power-over-Ethernet cabling for a TLP Pro 1035M installed on drywall, furniture, or glass. It ships as a high-impact plastic enclosure with a rear adhesive patch for glass jobs, a printed alignment guide for accurate placement, and removable side knockouts for wall cable runs. A 10 ft (3 m) flat Ethernet cable and mounting screws are included as optional kit items.

Key Capabilities

• Purpose-built surface mount kit for the Extron TLP Pro 1035M touchpanel
• 5.38 in. H x 8.80 in. W x 0.64 in. D high-impact plastic enclosure
• Rear adhesive patch for glass mounting with a printed alignment guide
• Four removable knockouts route cable for wall or furniture installs
• Weighs just 0.2 lbs (0.09 kg)
• Meets CE, UKCA, RoHS, and WEEE compliance with a 3-year warranty

Where It Is Used

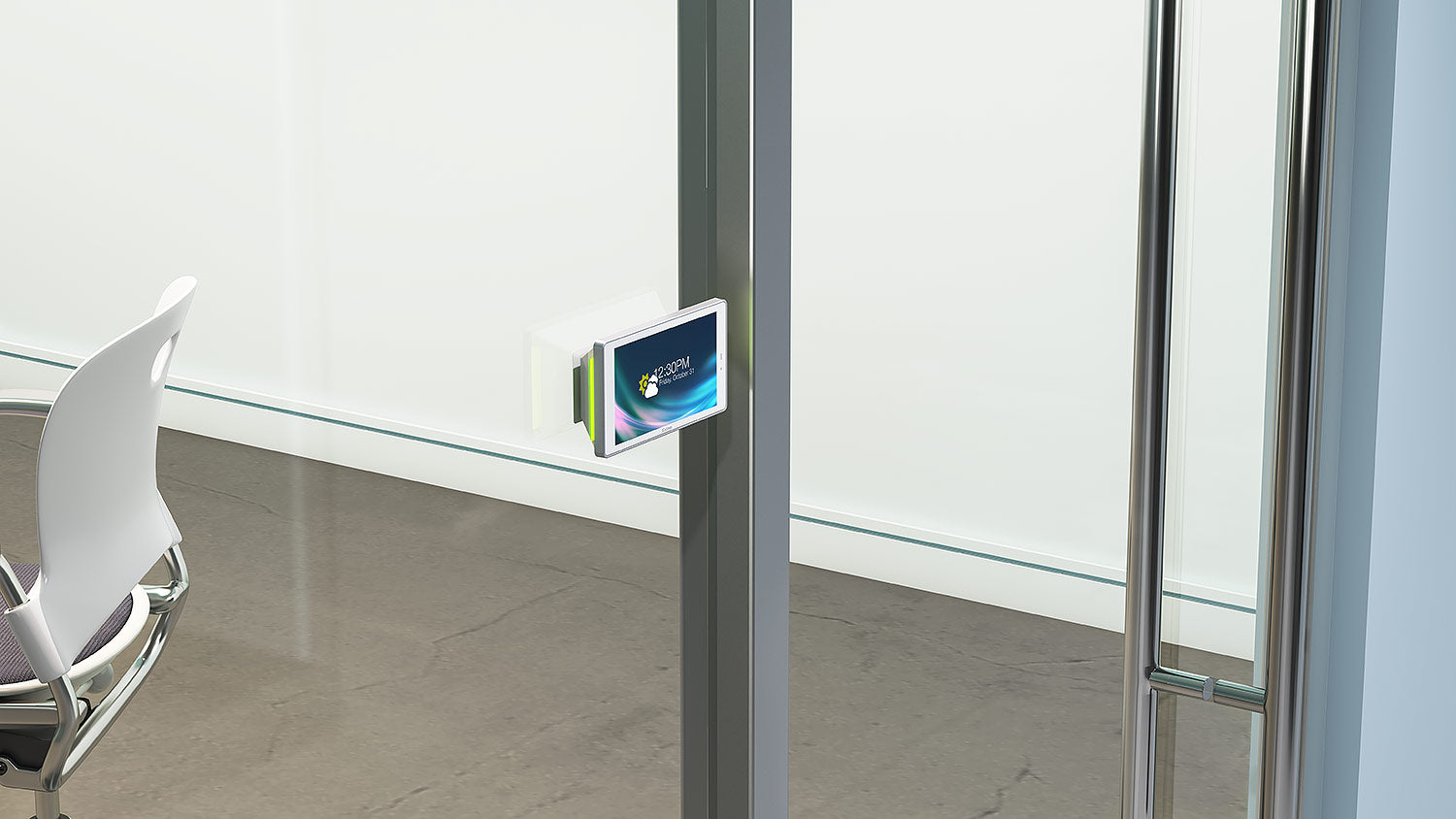

The SMK 6 is standard on glass-front boardrooms and large conference tables where a TLP Pro 1035M needs to sit flush without visible brackets. AV integrators stock it alongside TLP Pro 1035M deployments.

Specifications at a Glance

• Enclosure: 5.38 in. H x 8.80 in. W x 0.64 in. D (137 x 223 x 16 mm)
• Material: High-impact plastic
• Mounting: Glass, masonry, or other flat surfaces
• Regulatory: CE, UKCA, RoHS, and WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron SMK6, SMK-6, part number 70133132.
