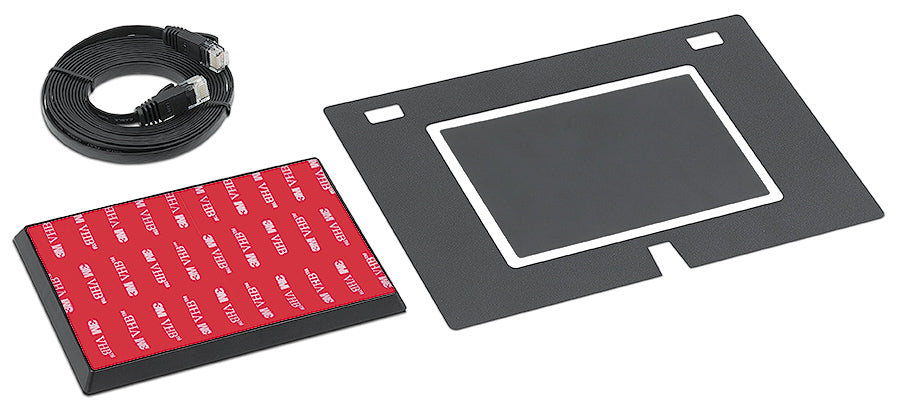

Extron SMK 3 (part number 70-1140-33) is the surface mount plate Extron builds specifically for the TLP Pro 1025M touchpanel.

Where an exposed bracket leaves cabling and screws visible, the SMK 3 buries the Power-over-Ethernet run and mounting hardware behind a low-profile enclosure that sits flush with drywall, furniture, or glass. Installation uses a printed alignment guide for accurate glass placement, four removable knockouts for wall runs, and an optional LED overlay that blocks the touchpanel's rear-panel LEDs from showing through on the room side.

Key Capabilities

• Purpose-built mounting plate for the Extron TLP Pro 1025M touchpanel
• 4.08 in. H x 5.93 in. W x 0.34 in. D high-impact plastic enclosure
• Printed alignment guide speeds up accurate glass placement
• Optional LED overlay hides rear-panel LEDs from view inside the room
• Weighs just 0.09 lbs (0.04 kg)
• Backed by Extron's 3-year parts and labor warranty

Where It Is Used

Integrators specify the SMK 3 on glass-front boardrooms and reception desks where a 10 in. TouchLink Pro panel needs a flush, bracket-free finish. It travels alongside most TLP Pro 1025M orders.

Specifications at a Glance

• Enclosure: 4.08 in. H x 5.93 in. W x 0.34 in. D (104 x 151 x 8.6 mm)
• Material: High-impact plastic
• Mounting: Glass, masonry, or other flat surfaces
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron SMK3, SMK-3, part number 70114033.
