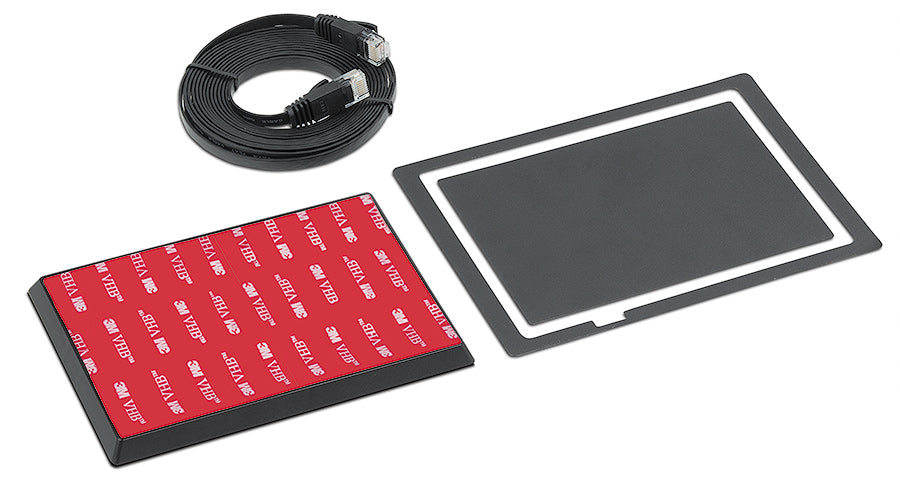

Extron SMK 2 (part number 70-1140-22) is a purpose-built surface mount plate for the Extron TLP Pro 725M touchpanel.

The SMK 2 hides the mounting hardware and Power-over-Ethernet cabling for a 7 in. TouchLink Pro panel on drywall, furniture, or glass. It ships as a high-impact plastic enclosure with a rear adhesive patch for glass jobs, a printed alignment guide for accurate placement, and removable side knockouts for cable routing on fastener-mounted walls. An optional LED overlay covers the touchpanel's rear-panel LEDs so they do not create a distraction inside the room, and Extron rates the finished kit to ISTA 1A shipping standards.

Key Capabilities

• Purpose-built mounting plate for the Extron TLP Pro 725M touchpanel
• 4.08 in. H x 5.93 in. W x 0.34 in. D high-impact plastic enclosure

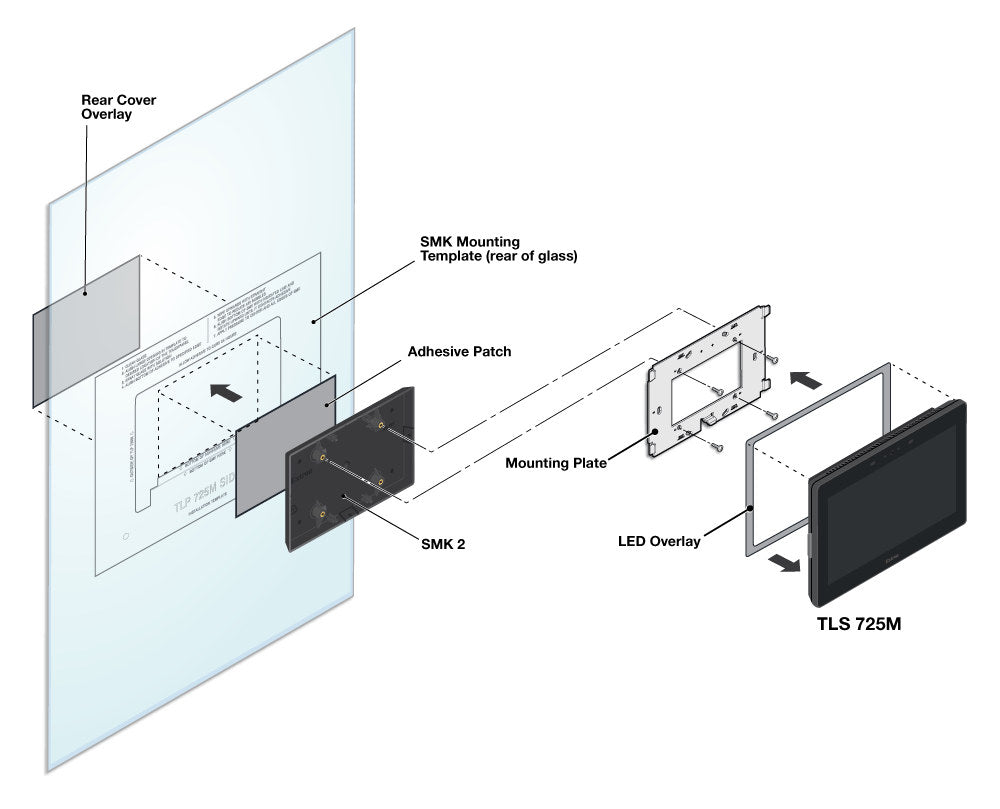

• Rear adhesive patch for glass mounting with a printed alignment guide
• Optional LED overlay hides rear-panel LEDs from view inside the room
• Weighs just 0.09 lbs (0.04 kg) and ships ISTA 1A rated
• Backed by Extron's 3-year parts and labor warranty

Where It Is Used

The SMK 2 is standard on glass-front huddle rooms and conference tables where a 7 in. TouchLink Pro panel needs to sit flush without visible brackets. AV integrators stock it alongside TLP Pro 725M deployments.

Specifications at a Glance

• Enclosure: 4.08 in. H x 5.93 in. W x 0.34 in. D (104 x 151 x 8.6 mm)
• Material: High-impact plastic
• Mounting: Glass, masonry, or other flat surfaces
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron SMK2, SMK-2, part number 70114022.
