Extron SMK 1 (part number 70-1140-13) is a purpose-built surface mount plate for the Extron TLP Pro 525M touchpanel.

Integrators mounting a TLP Pro 525M on drywall, furniture, or a glass partition need a plate that hides the Power-over-Ethernet run and keeps the panel sitting flush against the surface. The SMK 1 is a high-impact plastic enclosure with a rear adhesive patch for glass installs and removable knockouts for routing cable behind fastener-mounted walls. A cover overlay hides any trapped air bubbles on glass jobs, and the kit ships with a 10 ft (3 m) flat Ethernet cable so installers are not sourcing a separate PoE run on site.

Key Capabilities

• Purpose-built mounting plate for the Extron TLP Pro 525M touchpanel
• 3.78 in. H x 5.69 in. W x 0.33 in. D high-impact plastic enclosure
• Rear adhesive patch for tempered glass mounting with no visible hardware inside the room
• Four removable cable knockouts for wall or furniture installs

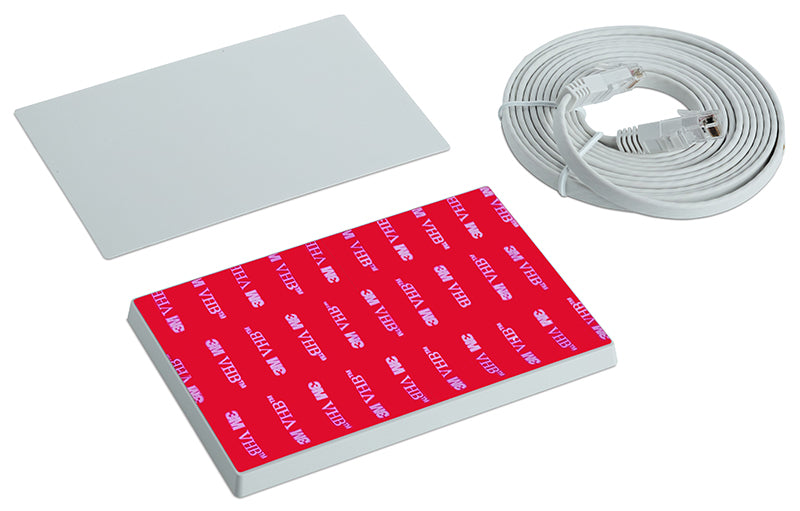

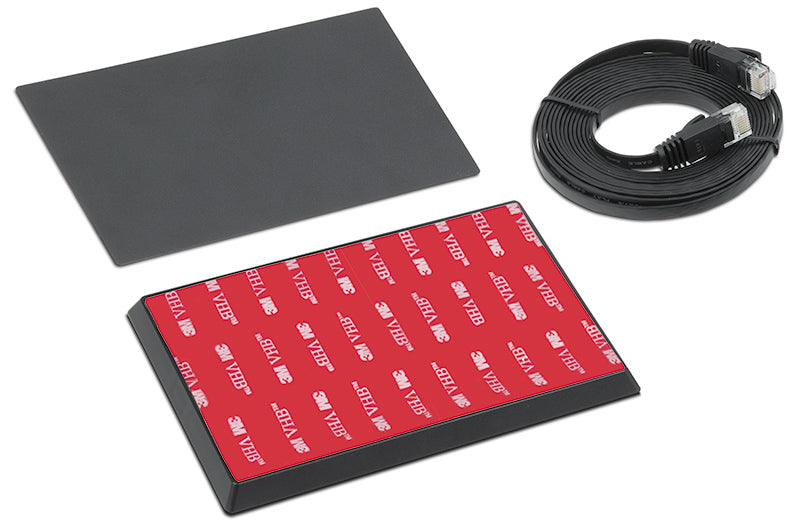

• Ships with 4 M3 screws, a cover overlay, and a 10 ft (3 m) flat Ethernet cable

Where It Is Used

The SMK 1 shows up on huddle-room glass walls, reception desks, and conference tables where a TLP Pro 525M needs to sit flush against glass or furniture without exposed brackets. It is a standard accessory that AV integrators stock alongside 5 in. TouchLink Pro touchpanel deployments.

Specifications at a Glance

• Enclosure: 3.78 in. H x 5.69 in. W x 0.33 in. D (96 x 145 x 8.4 mm)
• Material: High-impact plastic
• Mounting: Glass, masonry, or other flat surfaces
• Regulatory: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron SMK1, SMK-1, part number 70114013.
