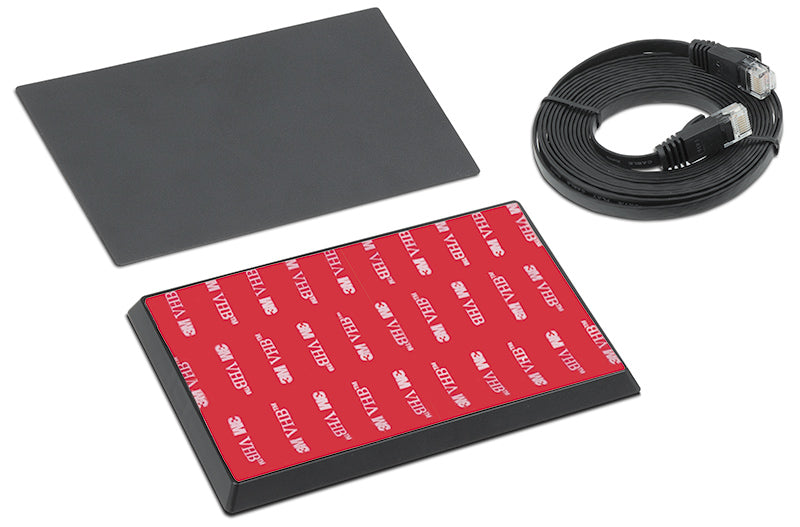

The Extron SMK 1 (70-1140-12) is a slim mounting plate that installs a TouchLink touchpanel directly to glass, masonry, or another flat surface. Built from high impact plastic, it measures just 3.78" H x 5.69" W x 0.33" D, keeping the finished installation nearly flush with the surface behind it.

Mounting a touchpanel to glass or masonry without a purpose-built plate leaves no clean way to secure the panel or hide its mounting hardware, and drilling directly into glass is not an option at all. The SMK 1 solves this with a low-profile plastic plate engineered specifically for flat, hard surfaces, keeping the finished install thin, unobtrusive, and properly supported.

Key Capabilities

• Mounting plate for TouchLink touchpanels
• Mounts to glass, masonry, and other flat surfaces
• High impact plastic construction
• Slim 3.78" H x 5.69" W x 0.33" D profile
• CE, RoHS and WEEE compliant

Where It Is Used

Integrators install the SMK 1 in lobbies, corridors, and control points where a touchpanel mounts directly to a glass partition or masonry wall rather than a standard in-wall box, and where a slim, low-profile plate is preferred over a bulkier bracket. Its thin profile makes it a practical choice anywhere the mounted panel needs to sit as close to the wall or glass surface as possible.

Specifications at a Glance

• Mounting surfaces: glass, masonry, other flat surfaces
• Enclosure: 3.78" H x 5.69" W x 0.33" D, high impact plastic
• Regulatory compliance: CE, RoHS, WEEE
• Product warranty: 3 years parts and labor

Also referenced as SMK1, SMK-1, part number 70114012.
