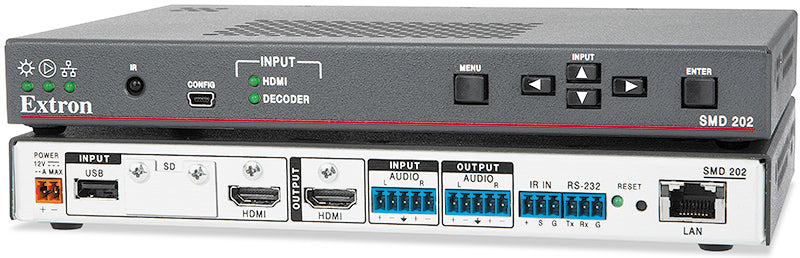

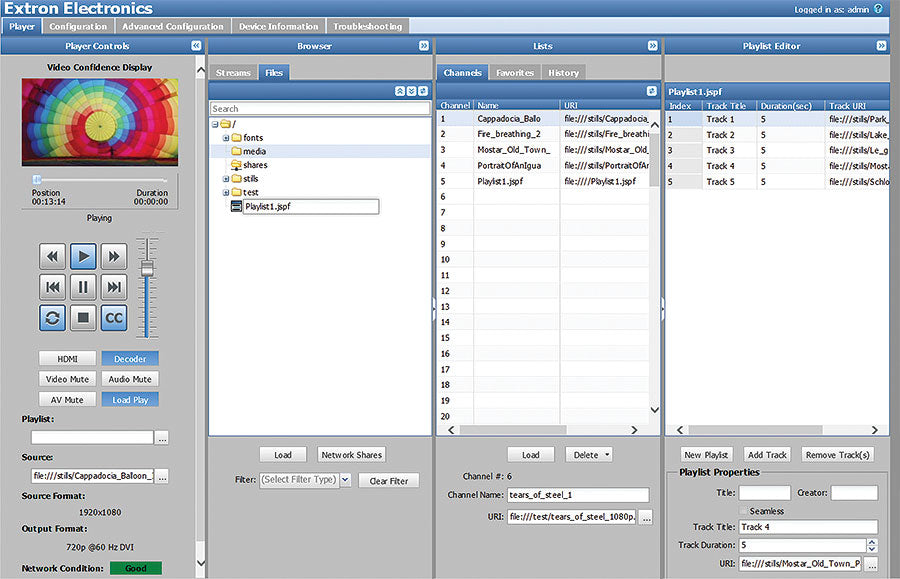

Extron SMD 202 (part number 60-1306-01) — an H.264 streaming media decoder that adds local SD card and USB playback to network stream decoding for a single HDMI/DVI display.

Beyond decoding RTSP/RTP pull streams and MPEG-2 TS/Direct RTP push streams over a 10/100/1000Base-T RJ-45 connection, SMD 202 plays media directly from an SD/SDHC card or a rear-panel USB storage device, and supports in-stream or stand-alone subtitle formats including SRT with international-language and custom-font support. An interactive on-screen menu, available in nine languages, gives operators local control from the front panel or an optional IR remote. HDMI audio pass-through extends to LPCM 7.1 and Dolby Digital 5.1, and 802.1x network security is built in for managed environments.

Key Capabilities

Plays back from SD card, USB storage, or network share in addition to IP streams
Decodes H.264/AVC video and AAC audio over a single RJ-45 IP input
HDMI audio pass-through up to LPCM 7.1 or Dolby Digital 5.1
On-screen menu supports 9 languages for local playback control
802.1x network security plus dual-mode RS-232 and Ethernet control

Where It Is Used

SMD 202 fits digital signage and monitoring deployments that need to fall back to local SD or USB media when the network stream is unavailable, or that require on-screen menu control and multi-language subtitle support at the display endpoint.

Specifications at a Glance

1 H.264/AVC video and AAC audio IP input via RJ-45, 10/100/1000Base-T
SD/SDHC card slot and rear USB 2.0 host port for local media playback
1 HDMI/DVI output, up to 1920x1200, HDCP 1.4
1.0" H x 8.75" W x 6.0" D half-rack metal enclosure, 1.2 lbs
3-year parts and labor warranty; Everlast power supply carries a 7-year warranty

Also referenced as Extron SMD202, SMD-202, part number 601306-01.

Specifications

Part Number: 60-1306-01

Manufacturer: Extron

Model: SMD 202

Condition: New

Decoder Input: 1 H.264/AVC digital video and AAC audio over IP, via 1 shielded RJ-45, 10/100/1000Base-T

Network File Share Protocols: CIFS/SMB (SMB 2.x and 3.0, NT LM 0.12), NFS

USB Host: USB 2.0 (500 mA max), 1 rear panel USB type A; speed and capacity limited by storage device

SD Card Slot: SD, SDHC to speed class 10 / UHS-1 (10-25 MB/sec), FAT or FAT32 (preferred) file system

Network Security: 802.1x

Streaming Protocols – Pull: RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP, RTP/RTSP tunneled through HTTP, unicast or multicast

Streaming Protocols – Push: MPEG-2 TS/UDP, MPEG-2 TS/RTP, Direct RTP (RFC 3984), SAP (RFC 2974), SDP (RFC 4566), unicast or multicast

Container Formats: MPEG-2 TS, MP4 (mp4, m4a, m4v using H.264 and AAC-LC), WAV audio files

Audio Coding: AAC-LC (mono or stereo, max 384 kbps), G.711, G.726 ADPCM, PCM mono or stereo 16 kHz to 96 kHz, 16-bit to 32-bit

Video Coding: MPEG-4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<40 Mbps over 1 second), MJPEG

Timed Text: In-stream MPEG-4 Timed Text, 3GPP Timed Text, WebVTT; stand-alone SRT with international language and user-supplied TTF/OTF font support

Seamless Playback: Via m3u8 playlists and MPEG-2 TS or "fast start" MP4 clips

Image File Formats: BMP, JPG, PNG, TIFF up to 1920x1080 (TIFF files using JPEG compression are not supported)

Playlist Formats: m3u, m3u8, pls, jspf, xspf

Video Input/Pass-Through: 1 HDMI/DVI digital video, 1 female HDMI type A; resolution range 640x480 @ 60 Hz through 1920x1200 @ 60 Hz, includes 480i/576i/480p/576p/720p/1080i/1080p/2K; DVI 1.0, HDMI 1.4, HDCP 1.4

Video Processing: 165 MHz maximum pixel clock, 480p up to 1920x1080p @ 60 Hz source rates, 4:2:2 and 4:4:4 chroma subsampling, under 1 second latency

Video Output: 1 HDMI/DVI digital video, 1 female HDMI type A, 200 mA max peripheral power; output resolutions 640x480 up to 1920x1200, 480p, 576p, 720p, 1080i, 1080p

HDMI Audio Pass-Through: LPCM 2.1/5.1/6.1/7.1 up to 24-bit/192 kHz; Dolby Digital 5.1 (AC-3) up to 24-bit, 640 kbps

Analog Audio Input – Pass-Through: 1 stereo balanced/unbalanced, (1) 3.5 mm captive screw connector 5 pole, +4 dBu/-10 dBV nominal, +21 dBu maximum, -18 dB to +24 dB gain adjustment

Audio Output – Analog: 1 stereo balanced/unbalanced, (1) 3.5 mm captive screw connector 5 pole, +4 dBu nominal, +21 dBu balanced/+15 dBu unbalanced maximum

Audio Output – Digital: 1 stereo HDMI embedded, 16-bit or 24-bit, 32/44.1/48 kHz sampling

Audio Processing: 20 Hz to 20 kHz ±0.1 dB frequency response, <0.02% THD+N, >100 dB S/N, >90 dB stereo channel separation

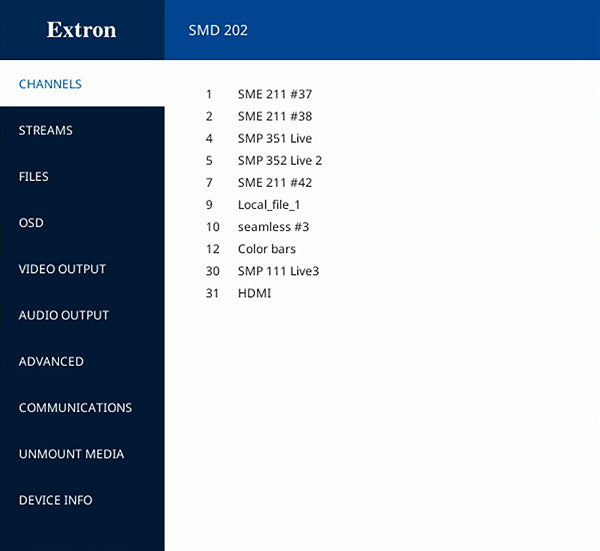

OSD: Interactive on-screen menu via front panel or optional IR remote; Chinese, English, French, German, Italian, Japanese, Portuguese, Spanish, Russian language support

USB Configuration Port: 1 front panel female mini USB-B, USB 2.0 high/full/low speed

USB Device Port: 1 rear panel female USB 2.0 type A, 1-port hub, 500 mA available power

Serial Control: 1 bidirectional RS-232, rear panel 3.5 mm captive screw connector, 3-pole; dual mode host control (Extron SIS) or IP-to-serial pass-through

Ethernet Control: 1 female RJ-45, 10/100/1000Base-T; default IP 192.168.254.254, DHCP off

IR Remote Control: SMD 202 remote (optional), 38 kHz

Internal Storage: >512 MB available (varies by firmware version); at least 64 MB free space required for firmware updates

Program Control: Extron Simple Instruction Set (SIS), Extron DataViewer, major web browsers

Power Supply: External, Input: 100-240 VAC 50-60 Hz, Output: 12 VDC 1.5A 18W

Power Consumption: 13.2 W (device, 12 VDC); 15.8 W (device and power supply, 100-240 VAC)

Thermal Dissipation: 43.7 BTU/hr (device); 52.6 BTU/hr (device and power supply)

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C); Operating +32 to +122 °F (0 to +50 °C); 10% to 90% noncondensing

Cooling: Convection, with vents

Mounting: Rack mount (optional rack shelf), furniture mount (optional under-desk kit), pole mount (optional pole kit)

Enclosure Type: Metal

Enclosure Dimensions: 1.0" H x 8.75" W x 6.0" D, half rack wide (2.5 x 22.2 x 15.2 cm), depth excludes connectors

Product Weight: 1.2 lbs (0.5 kg)

Regulatory Compliance: CE, C-tick, c-UL, UL, FCC Class A, ICES, KC, VCCI

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

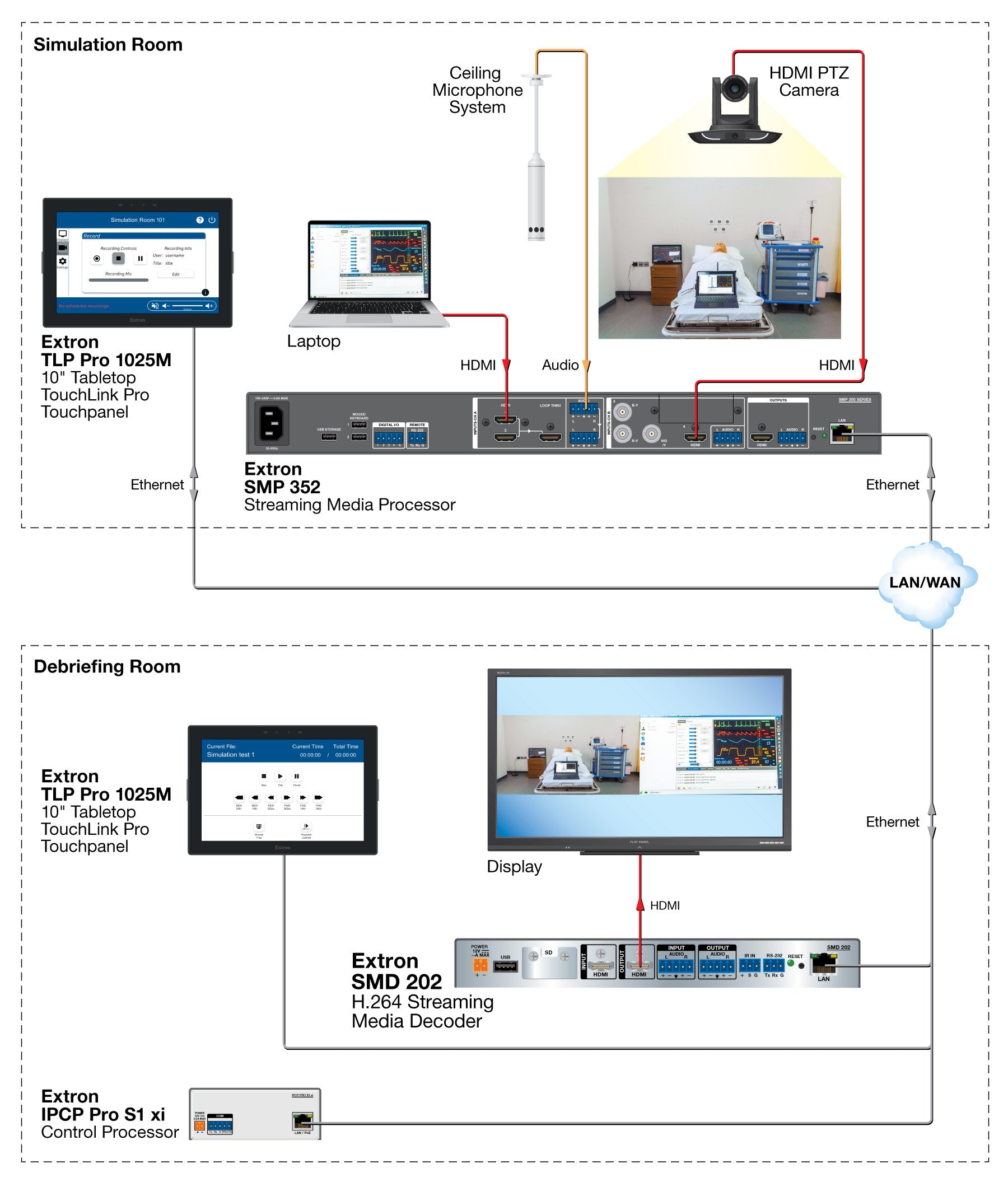

Diagram

Resources

Brochure | SMD 202 60-1306-01 | SMD 202, SMD 101 (smd101_202_revB1.pdf)

Brochure | SMD 202 60-1306-01 | Everlast Power Supplies

Brochure | SMD 202 60-1306-01 | H.264 Recording & Streaming Solutions - Application Guide for Online Learning

Brochure | SMD 202 60-1306-01 | H.264 Recording & Streaming Solutions - Application Guide for Online Learning (International Version)

Brochure | SMD 202 60-1306-01 | Alimentatori Everlast

Brochure | SMD 202 60-1306-01 | Everlast 电源

Brochure | SMD 202 60-1306-01 | Everlast-Netzteile

Brochure | SMD 202 60-1306-01 | Fuentes de alimentación Everlast

Brochure | SMD 202 60-1306-01 | H.264-Lösungen für Aufzeichnung und Streaming - Leitfaden für den Online-Unterricht (internationale Version)

Brochure | SMD 202 60-1306-01 | SMD 202, SMD 101 (smd-101_202_REV_B_jp_ONLINE.pdf)

Brochure | SMD 202 60-1306-01 | Soluciones H.264 para grabación y streaming - Guía de aplicación para el aprendizaje online (versión internacional)

Brochure | SMD 202 60-1306-01 | Solutions d'enregistrement et de streaming H.264 - Guide d'application pour l'apprentissage en ligne (version internationale)

Brochure | SMD 202 60-1306-01 | Soluzioni di registrazione e streaming H.264 - Guida applicativa per l’apprendimento online (versione internazionale)

Brochure | SMD 202 60-1306-01 | Sources d'alimentation Everlast

Brochure | SMD 202 60-1306-01 | Решения с поддержкой H.264 для записи и потокового вещания в реальном времени - Руководство по применению для онлайн-обучения (международная версия)

Manual | SMD 202 60-1306-01 | Cleaning Instruction Card

Manual | SMD 202 60-1306-01 | IR Sensor Instruction Card

Manual | SMD 202 60-1306-01 | SMD 202 Setup Guide

Manual | SMD 202 60-1306-01 | SMD 202 User Guide

Manual | SMD 202 60-1306-01 | Technical Application Note for 802.1X Network Security Features

Specifications | SMD 202 60-1306-01 | SMD 202

Panel Drawing | SMD 202 60-1306-01 | SMD 202
