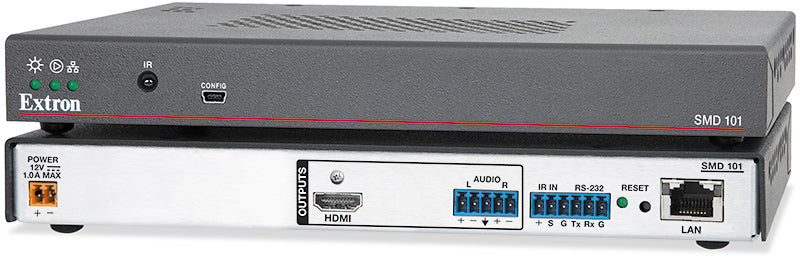

Extron SMD 101 (part number 60-1305-01) — an H.264 streaming media decoder that turns a network video stream into an HDMI/DVI display signal.

SMD 101 pulls RTSP or RTP unicast/multicast streams, or accepts pushed MPEG-2 TS and Direct RTP feeds, over a single 10/100/1000Base-T RJ-45 connection, and decodes H.264 BP/MP/HiP video up to level 4.2 alongside AAC-LC, G.711, G.726, or PCM audio. Glass-to-glass latency stays under 500 ms, and the decoded signal is available over a single HDMI/DVI output at resolutions up to 1920x1200 with HDCP 1.4 support. Control runs through dual-mode RS-232 (Extron SIS or IP-to-serial pass-through), Ethernet, USB configuration, or an optional IR remote.

Key Capabilities

Decodes H.264/AVC video and AAC audio streamed over a single RJ-45 IP input
Under 500 ms glass-to-glass latency for near-live playback
Outputs up to 1920x1200 over HDMI/DVI with HDCP 1.4 support
Balanced/unbalanced analog audio output plus HDMI-embedded digital audio
Rack, furniture, or pole mountable in a half-rack 1U metal enclosure

Where It Is Used

SMD 101 is specified anywhere an H.264 IP stream needs to land back on a local display or projector — digital signage endpoints, overflow rooms, and monitoring walls fed from Extron encoders or other RTSP/MPEG-2 TS sources.

Specifications at a Glance

1 H.264/AVC video and AAC audio IP input via RJ-45, 10/100/1000Base-T
1 HDMI/DVI output, up to 1920x1200, HDCP 1.4
1.0" H x 8.75" W x 6.0" D half-rack metal enclosure, 1.2 lbs
9.2 W device power consumption from an external 12 VDC supply
3-year parts and labor warranty; Everlast power supply carries a 7-year warranty

Also referenced as Extron SMD101, SMD-101, part number 601305-01.

Specifications

Part Number: 60-1305-01

Manufacturer: Extron

Model: SMD 101

Condition: New

Decoder Input: 1 H.264/AVC digital video and AAC audio over IP, via 1 shielded RJ-45, 10/100/1000Base-T

Network File Share Protocols: CIFS/SMB (SMB 1.0, NT LM 0.12), NFS

Pull Streams: RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP, RTP/RTSP tunneled through HTTP, unicast or multicast

Push Streams: MPEG-2 TS/UDP, MPEG-2 TS/RTP, Direct RTP (RFC 3984), SAP (RFC 2974), SDP (RFC 4566), unicast or multicast

Container Formats: MPEG-2 TS, MP4 (mp4, m4a, m4v and compatible containers using H.264 video and AAC or PCM audio), WAV (LPCM audio)

Audio Coding: AAC-LC (mono or stereo, max 384 kbps), G.711, G.726 ADPCM, PCM mono or stereo 16 kHz to 96 kHz, 16-bit to 32-bit

Video Coding: MPEG-4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<40 Mbps over 1 second), MJPEG

Image File Formats: BMP, JPG, PNG, TIFF up to 1920x1080 (TIFF files using JPEG compression are not supported)

Playlist Formats: m3u, m3u8, pls, jspf, xspf

Maximum Pixel Clock: 165 MHz

Source Rates: 480p up to 1920x1080p @ 60 Hz

Chroma Subsampling: 4:2:2 and 4:4:4

Latency: <500 ms glass to glass

Video Output: 1 HDMI/DVI digital video, 1 female HDMI type A, 200 mA max peripheral power

Output Resolutions: 640x480 up to 1920x1200, 480p, 576p, 720p, 1080i, 1080p

Video Standards: DVI 1.0, HDMI 1.4 (HDCP 1.4 with HDMI input selected)

Audio Output – Analog: 1 stereo balanced/unbalanced, (1) 3.5 mm captive screw connector 5 pole, +4 dBu nominal, +21 dBu balanced/+15 dBu unbalanced maximum

Audio Output – Digital: 1 stereo HDMI embedded, 16-bit or 24-bit, 32/44.1/48 kHz sampling

Audio Processing: 20 Hz to 20 kHz ±0.1 dB frequency response, <0.02% THD+N, >100 dB S/N, >90 dB stereo channel separation

USB: 1 front panel female mini USB-B, USB 2.0 high/full/low speed

Serial Control: 1 bidirectional RS-232, rear panel 3.5 mm captive screw connector, 3-pole; dual mode host control (Extron SIS) or IP-to-serial pass-through

Ethernet Control: 1 female RJ-45, 10/100/1000Base-T; default IP 192.168.254.254, DHCP off

IR Remote Control: SMD 101 remote (optional), 38 kHz

Program Control: Extron Simple Instruction Set (SIS), Extron DataViewer, major web browsers

Power Supply: External, Input: 100-240 VAC 50-60 Hz, Output: 12 VDC 1.5A 18W

Power Consumption: 9.2 W (device, 12 VDC); 11.0 W (device and power supply, 100-240 VAC)

Thermal Dissipation: 30.1 BTU/hr (device); 36.3 BTU/hr (device and power supply)

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C); Operating +32 to +122 °F (0 to +50 °C); 10% to 90% noncondensing

Cooling: Convection, with vents

Mounting: Rack mount (optional rack shelf), furniture mount (optional under-desk kit), pole mount (optional pole kit)

Enclosure Type: Metal

Enclosure Dimensions: 1.0" H x 8.75" W x 6.0" D, half rack wide (2.5 x 22.2 x 15.2 cm), depth excludes connectors

Product Weight: 1.2 lbs (0.5 kg)

Regulatory Compliance: CE, C-tick, c-UL, UL, FCC Class A, ICES, KC, VCCI

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

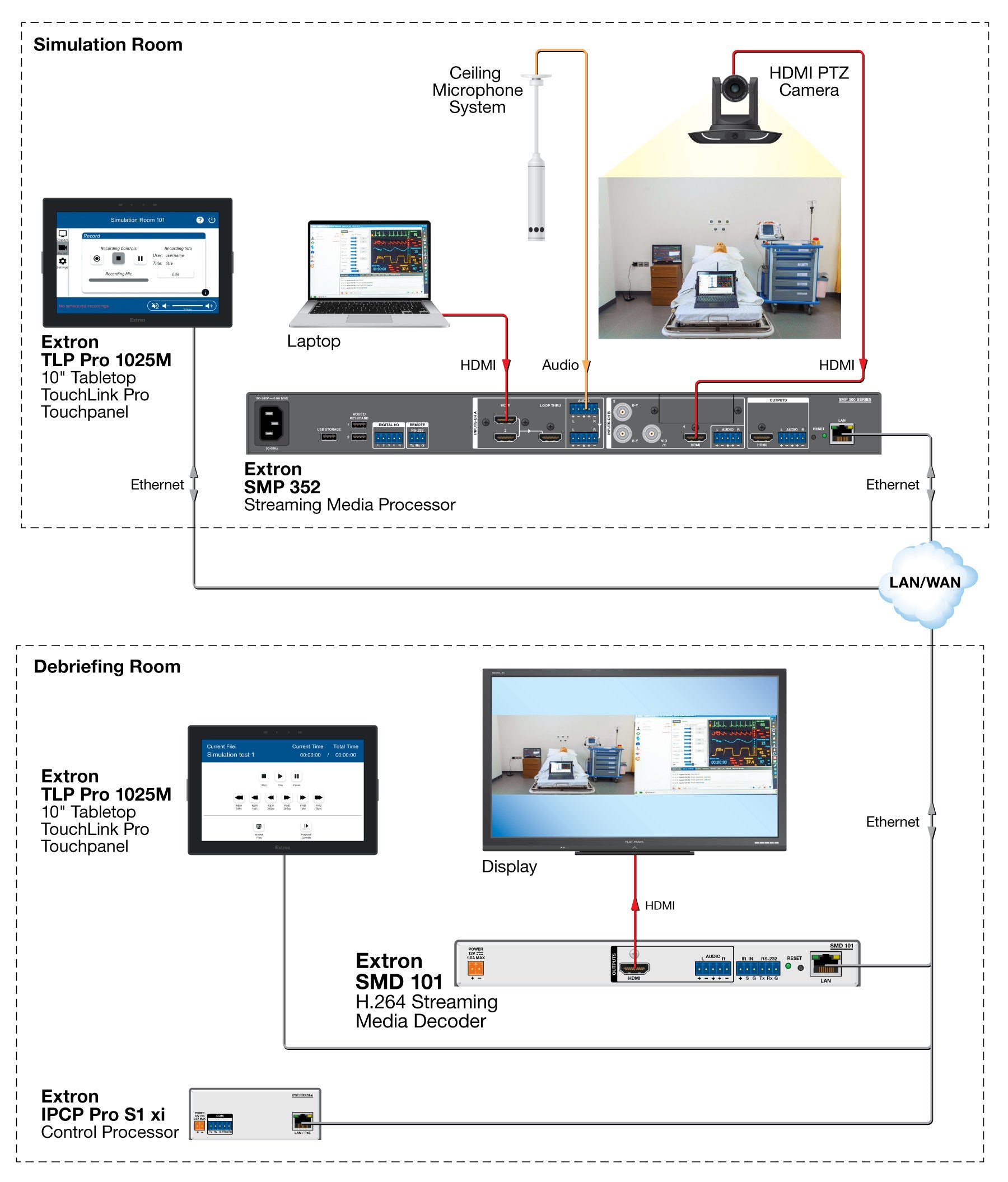

Diagram

Resources

Brochure | SMD 101 60-1305-01 | SMD 202, SMD 101 (smd101_202_revB1.pdf)

Brochure | SMD 101 60-1305-01 | Everlast Power Supplies

Brochure | SMD 101 60-1305-01 | H.264 Recording & Streaming Solutions - Application Guide for Online Learning

Brochure | SMD 101 60-1305-01 | H.264 Recording & Streaming Solutions - Application Guide for Online Learning (International Version)

Brochure | SMD 101 60-1305-01 | Alimentatori Everlast

Brochure | SMD 101 60-1305-01 | Everlast 电源

Brochure | SMD 101 60-1305-01 | Everlast-Netzteile

Brochure | SMD 101 60-1305-01 | Fuentes de alimentación Everlast

Brochure | SMD 101 60-1305-01 | H.264-Lösungen für Aufzeichnung und Streaming - Leitfaden für den Online-Unterricht (internationale Version)

Brochure | SMD 101 60-1305-01 | SMD 101 (SMD101_BR_A4_GE_RevA_LR.pdf)

Brochure | SMD 101 60-1305-01 | SMD 101 (smd101_bro_revA_cn.pdf)

Brochure | SMD 101 60-1305-01 | SMD 101 - Spec Sheet

Brochure | SMD 101 60-1305-01 | SMD 202, SMD 101 (smd-101_202_REV_B_jp_ONLINE.pdf)

Brochure | SMD 101 60-1305-01 | Soluciones H.264 para grabación y streaming - Guía de aplicación para el aprendizaje online (versión internacional)

Brochure | SMD 101 60-1305-01 | Solutions d'enregistrement et de streaming H.264 - Guide d'application pour l'apprentissage en ligne (version internationale)

Brochure | SMD 101 60-1305-01 | Soluzioni di registrazione e streaming H.264 - Guida applicativa per l’apprendimento online (versione internazionale)

Brochure | SMD 101 60-1305-01 | Sources d'alimentation Everlast

Brochure | SMD 101 60-1305-01 | Решения с поддержкой H.264 для записи и потокового вещания в реальном времени - Руководство по применению для онлайн-обучения (международная версия)

Manual | SMD 101 60-1305-01 | Cleaning Instruction Card

Manual | SMD 101 60-1305-01 | SMD 101 Setup Guide

Manual | SMD 101 60-1305-01 | SMD 101 User Guide

Manual | SMD 101 60-1305-01 | Technical Application Note for 802.1X Network Security Features

Specifications | SMD 101 60-1305-01 | SMD 101

Panel Drawing | SMD 101 60-1305-01 | SMD 101
