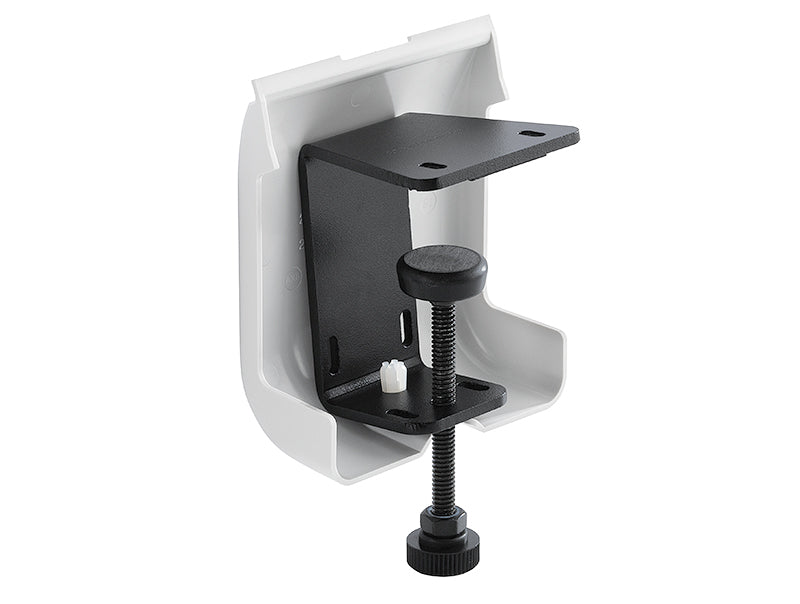

Extron SMB Table Clamp Kit (part number 70-1160-13) — the white version of Extron's clamp accessory for SMB surface mount boxes, for tables that must not be drilled.

Specify the white part when the box itself is white and the hardware under the table edge would otherwise show against pale furniture. Contents and fit are identical to the black 70-1160-12: a clamp body, a pair of #6-32 mounting screws, adhesive footpads, a cable wrap, and a cable shield with its plastic rivet. Assembly order is clamp to box, box to table edge, then cables out the rear of the SMB and zip-tied to the clamp so the run stays tidy where users can see it.

Key Capabilities

• Grips table edges between 0.38 in. and 2.00 in. thick (10 to 51 mm)
• Works with Extron SMB 110 Series and SMB 210 Series surface mount boxes
• White finish to match white SMB enclosures and light-toned furniture
• Footpads prevent pivoting on 2-gang and larger boxes fixed with a single clamp
• SMB 214 may be specified with two kits; SMB 211, 212 and 213 need one
• Supplied cable shield mounts to SMB 210 Series boxes other than the SMB 211

Where It Is Used

Classrooms, lecture theatres and healthcare meeting rooms finished in light materials, plus hospitality and higher-education spaces where furniture is leased or frequently reconfigured. Anywhere a permanent screw fixing is not permitted, this kit is how the connectivity box stays put.

Specifications at a Glance

• Clamp range: 0.38 in. to 2.00 in. (10 mm to 51 mm)
• Compatible boxes: SMB 111 to SMB 115, SMB 211 to SMB 214
• Recommended clamps: 1 for SMB 111/112/113 and SMB 211/212/213; 2 for SMB 114/115; 1 or 2 for SMB 214
• Kit contents: clamp, #6-32 screws, footpads, cable wrap, cable shield with rivet
• Finish: white

Also referenced as Extron SMBTableClampKit, SMB-Table-Clamp-Kit, part number 70116013.
