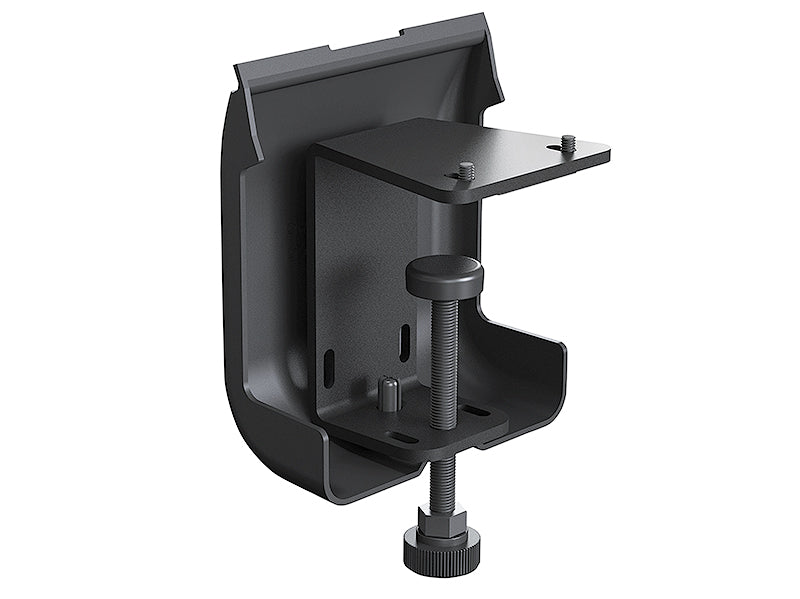

Extron SMB Table Clamp Kit (part number 70-1160-12) — the black accessory kit that anchors an Extron SMB surface mount box to the edge of a table without drilling into it.

Surface mount boxes can simply be screwed down, but on furniture that must stay unmodified — leased rooms, stone or glass tops, or tables that get reconfigured — a clamp is the only acceptable fixing. This kit supplies the clamp body, two #6-32 mounting screws, adhesive footpads, a cable wrap, and a cable shield with plastic rivet. The clamp bolts to the SMB, then tightens onto the table edge; cable routes out the back of the box and ties off to the clamp so nothing hangs loose under the table.

Key Capabilities

• Clamps to table edges from 0.38 in. to 2.00 in. thick (10 to 51 mm)

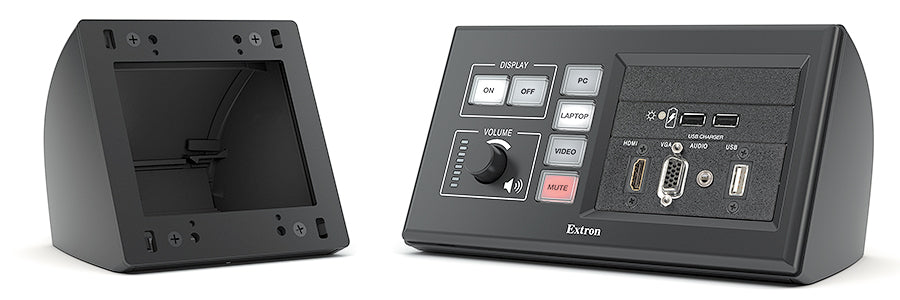

• Fits both the SMB 110 Series and the SMB 210 Series of Extron surface mount boxes
• Includes clamp, two #6-32 screws, footpads, cable wrap, cable shield and rivet
• Anti-pivot footpads steady 2-gang and larger boxes when only one clamp is used
• One clamp handles SMB 211, 212 and 213; SMB 214 takes one or two
• Cable shield fits SMB 210 Series boxes; the SMB 211 is the one exception

Where It Is Used

Conference and boardroom tables, classroom and lecture-hall furniture, training rooms and huddle spaces where the table cannot be drilled. It is also the practical choice for reconfigurable and rental AV, where the same connectivity box may move between rooms across a term or an event season.

Specifications at a Glance

• Clamp range: 0.38 in. to 2.00 in. (10 mm to 51 mm)
• Compatible boxes: SMB 111 to SMB 115, SMB 211 to SMB 214
• Recommended clamps: 1 for SMB 111/112/113, 2 for SMB 114/115; 1 for SMB 211/212/213, 1 or 2 for SMB 214
• Kit contents: clamp, #6-32 screws, footpads, cable wrap, cable shield with rivet
• Finish: black

Also referenced as Extron SMBTableClampKit, SMB-Table-Clamp-Kit, part number 70116012.
