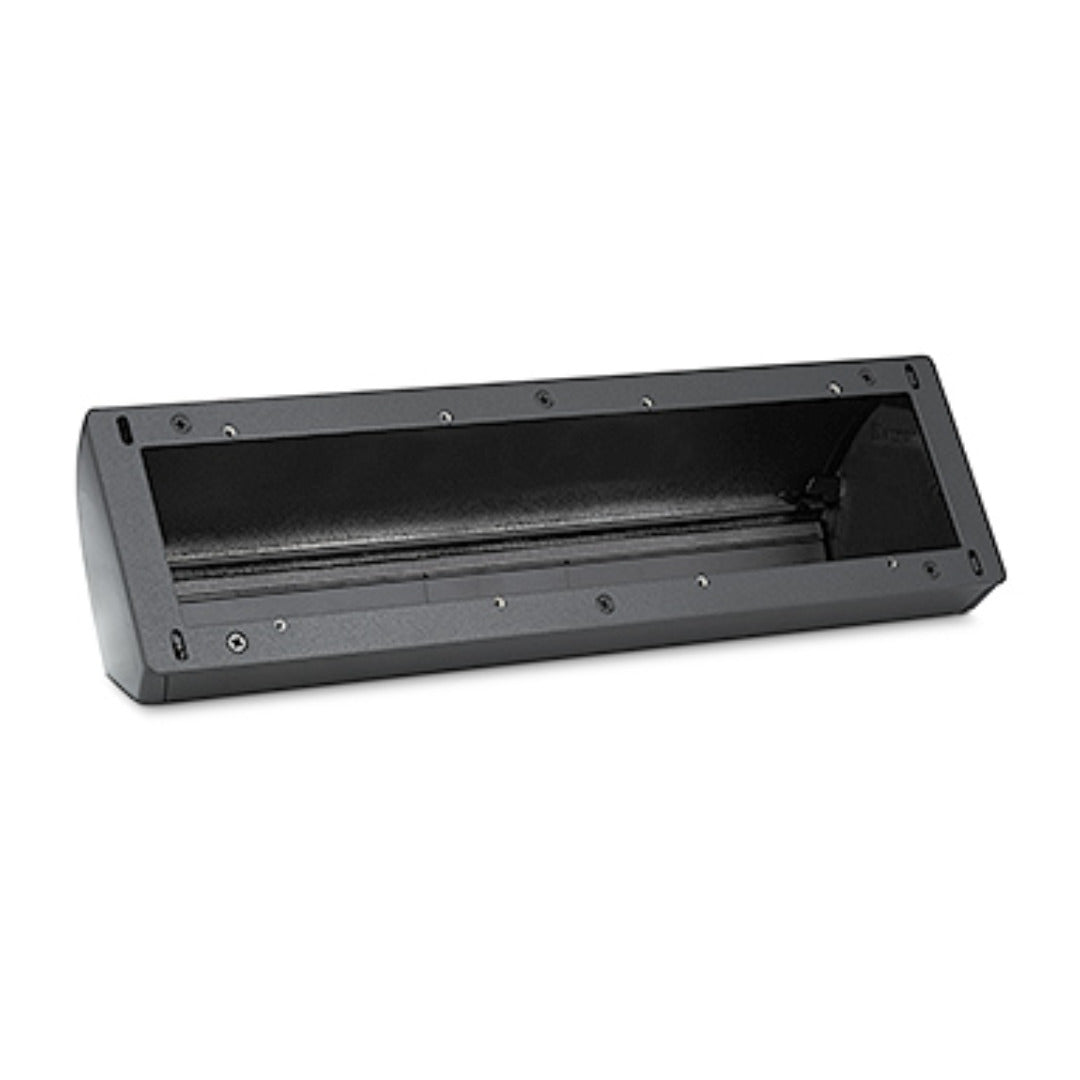

Extron SMB 214 (part number 70-1142-42) — the widest box in the SMB 210 Series, a four-gang black enclosure for Flex55 and EU modules mounted on the outside of a surface.

Four gangs covers a full connectivity station: two source plates, a control panel and a power module can share one shell without a second box breaking up the run. At 11.58 in. wide the SMB 214 spreads the load across three separate cable openings, which matters when four modules each bring their own bundle. Height and depth stay at 3.20 in. and 3.22 in., so the profile is no taller than the one-gang SMB 211.

Key Capabilities

• Four-gang capacity, the largest in Extron's SMB 210 Series
• 11.58 in. W x 3.20 in. H x 3.22 in. D (294 x 81 x 82 mm), 0.8 lb (0.4 kg)
• Three 1.00 in. x 1.75 in. cable openings (25 x 44 mm) spread along the base
• Rear slotted opening 0.46 in. high runs all 294 mm of the width
• Black finish for dark tables, credenzas and control-room consoles
• Table, wood-screw or optional clamp mounting for surfaces 0.38 in. to 2.00 in. thick

Where It Is Used

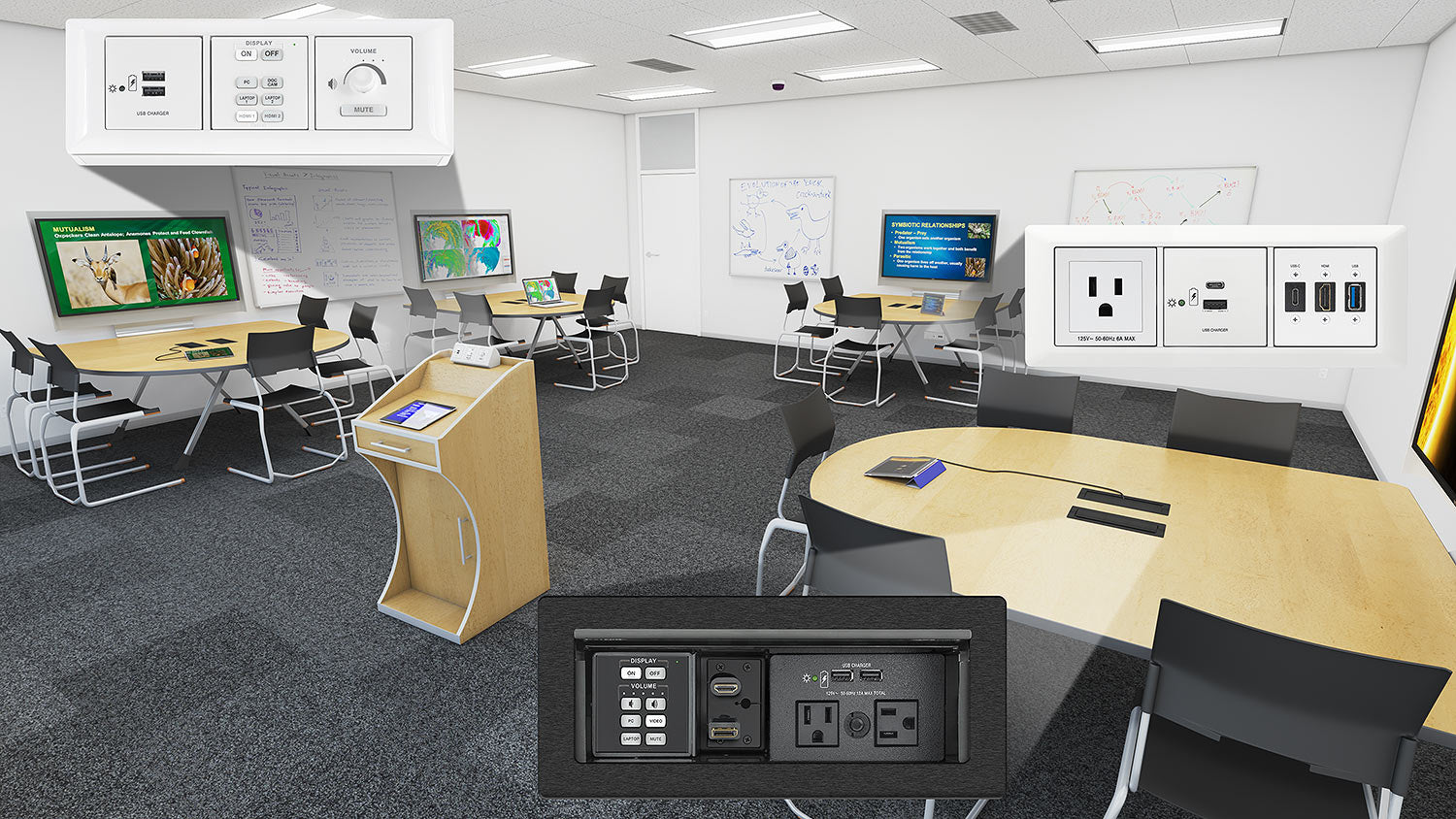

Large boardroom tables, divisible training rooms, lecture hall lecterns, command centers and control rooms where one position has to present every connection an operator needs. Also a common choice for AV retrofits into existing furniture that cannot be cut for a recessed enclosure.

Specifications at a Glance

• Enclosure: 11.58 in. W x 3.20 in. H x 3.22 in. D, four gang, black
• Cable openings: 3x 1.00 in. x 1.75 in. (25 x 44 mm)
• Rear slot: 0.46 in. H (12 mm), full enclosure width
• Weight 0.8 lb (0.4 kg); metal body, high-impact thermoplastic end caps
• Compliance and warranty: CE, RoHS, WEEE; 3 years parts and labor

Also referenced as Extron SMB214, SMB-214, part number 70114242.
