Extron SMB 213 (part number 70-1142-32) - a three-gang black surface mount box that puts three Flex55 or EU modules on the face of a table, wall or lectern.

Three gangs is where a single connectivity point turns into a working station: source input, control and power can all live in one shell. The SMB 213 measures 8.78 in. across and keeps the same 3.20 in. height and 3.22 in. depth as the rest of the SMB 210 Series, so it stays low even as it gets wider. Two separate cable openings on the underside split the load, and the rear slot runs the entire width for cable that has to travel flat to the surface.

Key Capabilities

• Three-gang capacity for Flex55 plates and EU modules, including powered button panels and DTP transmitters
• 8.78 in. W x 3.20 in. H x 3.22 in. D (223 x 81 x 82 mm), 0.6 lb (0.3 kg)
• Two 1.00 in. x 1.75 in. cable openings (25 x 44 mm) rather than one
• Full-width rear slotted opening 0.46 in. high (12 mm)
• Face raked 30 degrees back from vertical for comfortable plugging

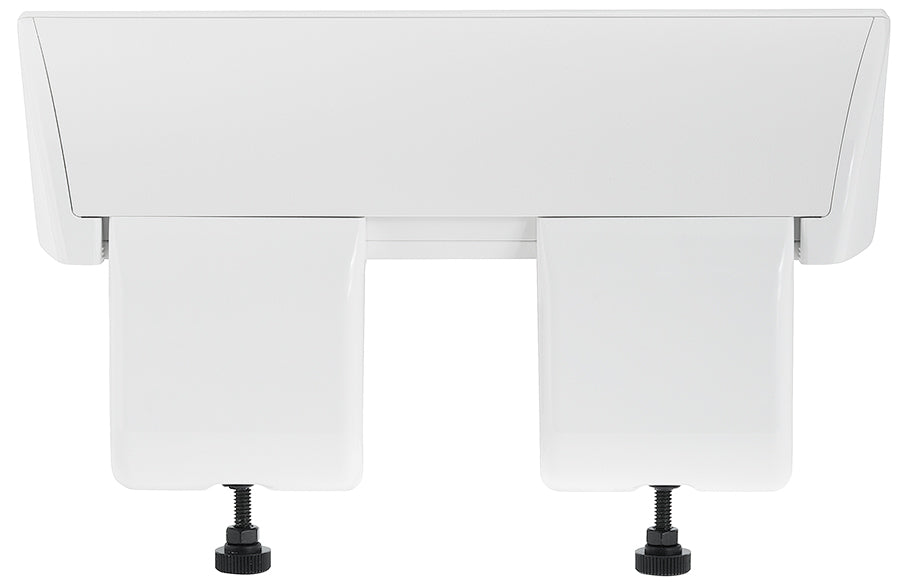

• Rests loose, screws down with included hardware, or clamps to surfaces 0.38 in. to 2.00 in. thick

Where It Is Used

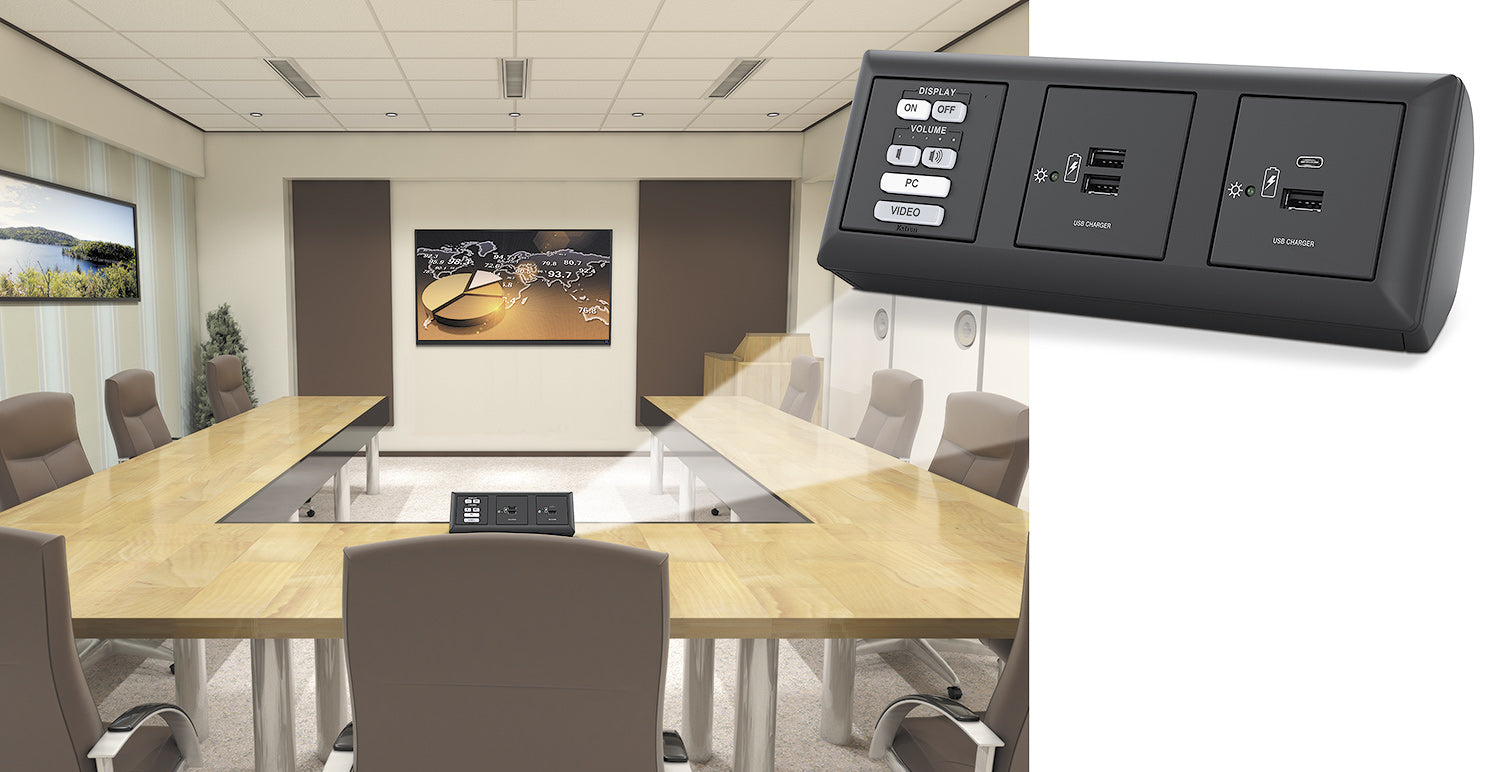

Divisible conference rooms, lecture halls, training suites and control rooms where a single position has to carry several connections at once. Because it mounts entirely outside the surface, it is a frequent answer on stone, glass and finished millwork tables that cannot be cored for a recessed cubby.

Specifications at a Glance

• Enclosure: 8.78 in. W x 3.20 in. H x 3.22 in. D, three gang, black
• Cable openings: 2x 1.00 in. x 1.75 in. (25 x 44 mm)
• Rear slot: 0.46 in. H (12 mm), full enclosure width
• Weight 0.6 lb (0.3 kg); metal body, high-impact thermoplastic end caps
• Compliance and warranty: CE, RoHS, WEEE; 3 years parts and labor
