Extron SMB 211 1-Gang Flex55 Surface Mount Box
- • Extron SMB 211 1-gang Flex55 surface mount box
- • 3.19 in W x 3.20 in H x 3.22 in D metal body
- • 30 degree front angle keeps connectors easy to reach
- • Sales, replacement and exchange
- • Part# 70-1142-13 / 70114213
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

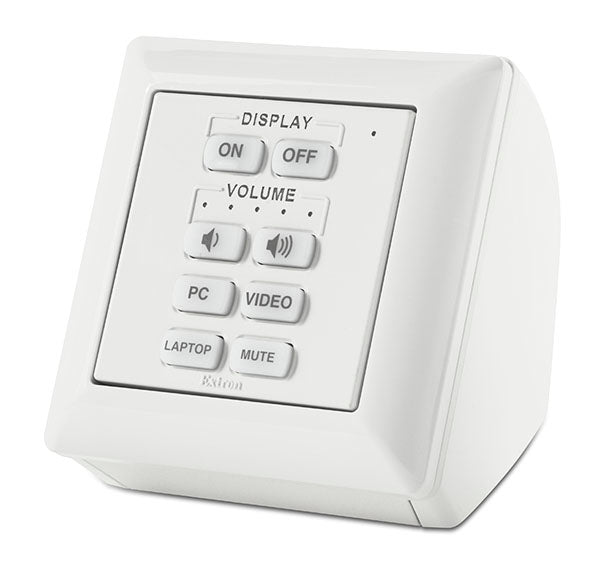

Extron SMB 211 (part number 70-1142-13) - a one-gang low profile surface mount box that carries Flex55 and EU connectivity on top of a surface instead of inside it.
Plenty of tables, lecterns and walls have no cavity to recess an AV plate into. The SMB 211 answers that by giving a single Flex55 or EU module a finished home fastened to the outside of the surface. A metal body with high-impact thermoplastic end caps stands up to daily handling, and the face sits 30 degrees off vertical so connectors stay easy to reach without the box standing tall on the tabletop. Cable exits through a slot 0.46 in. high that runs the full width of the back panel.
Key Capabilities
- Single-gang capacity for one Flex55 or EU module, including active devices such as EU network button panels and DTP transmitters
- Compact 3.19 in. W x 3.20 in. H x 3.22 in. D body (81 x 81 x 82 mm)
- One 1.00 in. x 1.25 in. cable opening (25 x 32 mm) plus the full-width rear slot

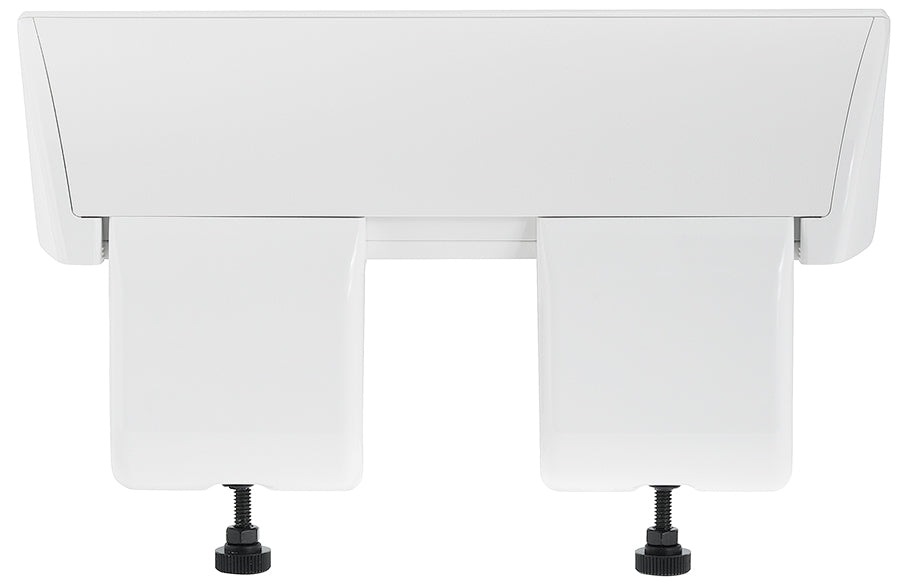

- Three install routes: rest it on the surface, drive the supplied wood screws, or add the optional SMB Table Clamp Kit
- That optional clamp grips surfaces from 0.38 in. to 2.00 in. thick (11 to 51 mm)
- Light 0.2 lb (0.1 kg) enclosure, compatible with Extron Flex55 mounting kits and EU devices
Where It Is Used

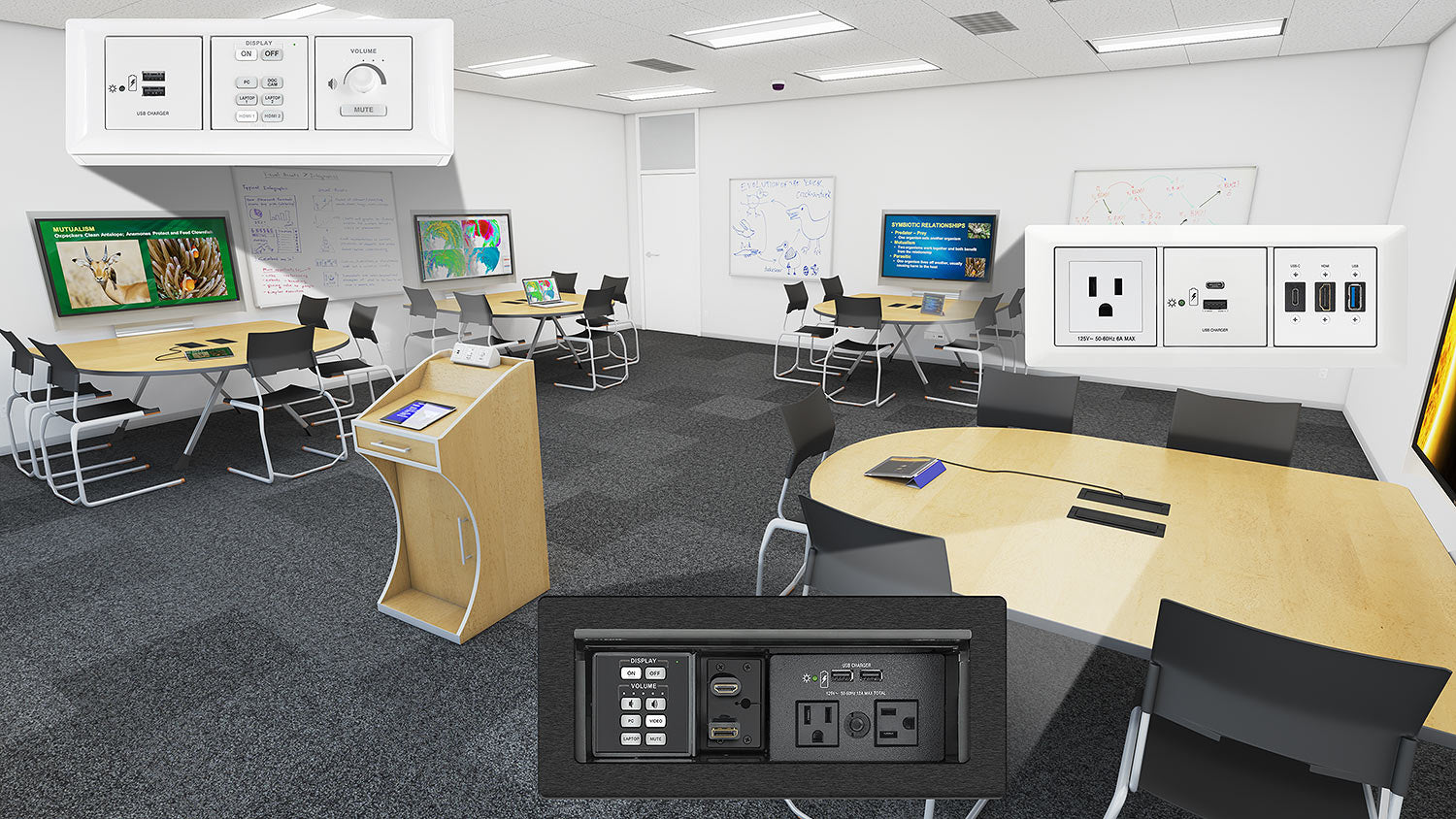

Conference rooms, boardrooms, classrooms, lecture halls and huddle spaces where solid-surface furniture or finished millwork cannot be cut open. Integrators also reach for it on retrofit work and in control rooms and imaging suites, where a single button panel or transmitter has to land somewhere clean and reachable without rebuilding the table.
Specifications at a Glance
- Enclosure: 3.19 in. W x 3.20 in. H x 3.22 in. D, one gang
- Front angle: 30 degrees from vertical
- Cable opening: 1x 1.00 in. x 1.25 in.; rear slot 0.46 in. H, full width
- Construction: metal body with high-impact thermoplastic end caps
- Compliance and warranty: CE, RoHS, WEEE; 3 years parts and labor
Frequently asked questions about the Extron SMB 211 1-Gang Flex55 Surface Mount Box
Does Ampronix sell the Extron SMB 211 1-Gang Flex55 Surface Mount Box?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SMB 211 1-Gang Flex55 Surface Mount Box (70-1142-13). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SMB 211 1-Gang Flex55 Surface Mount Box?
Yes. Ampronix provides sales, replacement and exchange for the Extron SMB 211 1-Gang Flex55 Surface Mount Box. Call Ampronix for a quote.
Is the Extron SMB 211 1-Gang Flex55 Surface Mount Box listed under other names?
Yes. The Extron SMB 211 1-Gang Flex55 Surface Mount Box is also referenced as Extron SMB211, SMB-211, part number 70114213.
What are the key features of the Extron SMB 211 1-Gang Flex55 Surface Mount Box?
Key points: Single-gang capacity for one Flex55 or EU module, including active devices such as EU network button panels and DTP transmitters; Compact 3.19 in. W x 3.20 in. H x 3.22 in. D body (81 x 81 x 82 mm); One 1.00 in. x 1.25 in. cable opening (25 x 32 mm) plus the full-width rear slot; Three install routes: rest it on the surface, drive the supplied wood screws, or add the optional SMB Table Clamp Kit. Call Ampronix to confirm details for your application.
Also referenced as Extron SMB211, SMB-211, part number 70114213.
