Extron SMB 114 Four-Gang Surface Mount Box
- • Extron SMB 114 four-gang surface mount box, white
- • 115 degree front angle
- • CE, RoHS and WEEE compliant
- • Sales, replacement and exchange
- • Part# 70-1286-04 / 70128604
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

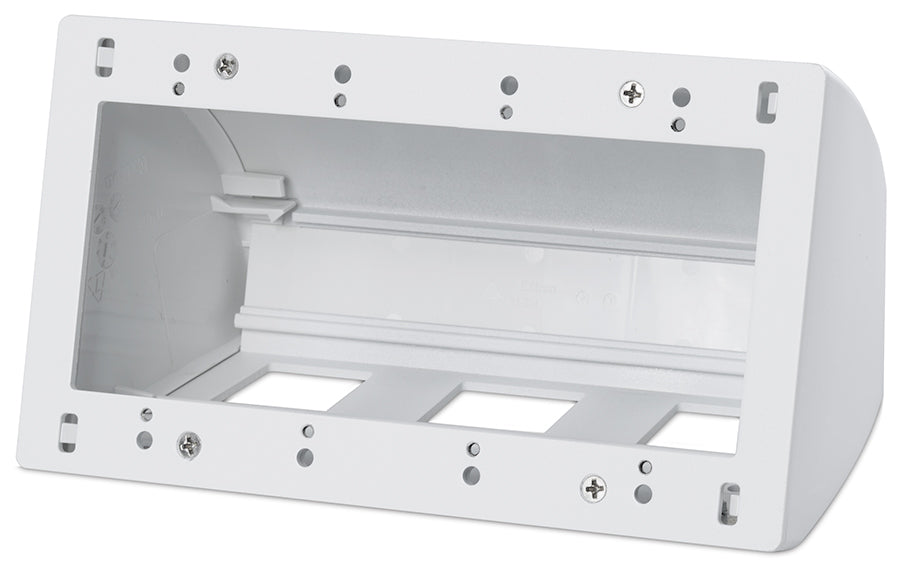

Extron SMB 114 (part number 70-1286-04, white) - the white finish of Extron's four-gang surface mount box for US gang-size wallplates.
When a single table position has to carry video, audio, control, network and charging, four gangs is the size that fits without spilling into a second enclosure. The white finish keeps that much hardware visually quiet on pale laminate or painted joinery. Three cable openings in the base share the bundle, and because the box sits on the surface rather than in it, the furniture stays intact - which matters in leased space and in rooms with stone or glass tops.
Key Capabilities
- Accepts four US gang-size Extron wallplates, AAP mounting frames or MediaLink controllers.
- Measures 8.34" W x 4.40" H x 4.35" D (212 x 112 x 111 mm) and weighs 1.1 lbs (0.5 kg).
- Three 1.25" x 1.30" (32 x 33 mm) cable openings plus a 0.40" (10 mm) rear slot across the width.
- Free-standing, wood-screwed, or clamped to tables between 0.38" and 2.00" thick.
- Supplied with cable strain relief and cover strips, including the rear cover strip for this size.
- Metal body, high impact plastic end caps and a #6-32 grounding stud in the base plate.
Where It Is Used
Light-finish boardroom and council tables, flexible training rooms, university teaching walls, library and study areas, and healthcare or laboratory benches where one populated panel serves the whole position.
Specifications at a Glance
- Colour: white; the black version is part number 70-1097-04
- Front angle: 115 degrees
- Optional Table Clamp Kit: 70-1160-13 white, 70-1160-12 black
- Regulatory compliance: CE, RoHS, WEEE
- Warranty: 3 years parts and labor
Frequently asked questions about the Extron SMB 114 Four-Gang Surface Mount Box White
Does Ampronix sell the Extron SMB 114 Four-Gang Surface Mount Box White?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SMB 114 Four-Gang Surface Mount Box White (70-1286-04). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SMB 114 Four-Gang Surface Mount Box White?
Yes. Ampronix provides sales, replacement and exchange for the Extron SMB 114 Four-Gang Surface Mount Box White. Call Ampronix for a quote.
Is the Extron SMB 114 Four-Gang Surface Mount Box White listed under other names?
Yes. The Extron SMB 114 Four-Gang Surface Mount Box White is also referenced as Extron SMB114, SMB-114, part number 70128604.
What are the key features of the Extron SMB 114 Four-Gang Surface Mount Box White?
Key points: Accepts four US gang-size Extron wallplates, AAP mounting frames or MediaLink controllers; Measures 8.34" W x 4.40" H x 4.35" D (212 x 112 x 111 mm) and weighs 1.1 lbs (0.5 kg); Three 1.25" x 1.30" (32 x 33 mm) cable openings plus a 0.40" (10 mm) rear slot across the width; Free-standing, wood-screwed, or clamped to tables between 0.38" and 2.00" thick. Call Ampronix to confirm details for your application.
Also referenced as Extron SMB114, SMB-114, part number 70128604.
