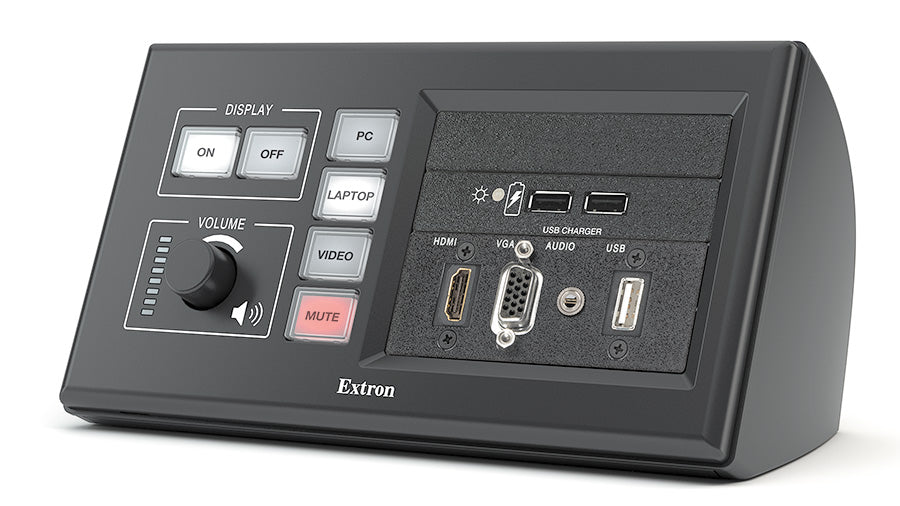

Extron SMB 114 (part number 70-1097-04, black) — a four-gang surface mount box for tables that need a full complement of connectivity, control and power plates.

Four gangs is the size specified when a position has to do everything: video and audio inputs, a control panel, network, and AC or USB charging, all reachable from one seat. Three cable openings in the base spread the load so bundles are not forced through a single hole, and the metal enclosure mounts entirely above the surface. The 115 degree front face keeps every connector angled toward the user rather than lying flat.

Key Capabilities

• Holds four US gang-size Extron wallplates, AAP mounting frames or MediaLink controllers.
• Enclosure measures 8.34" W x 4.40" H x 4.35" D (212 x 112 x 111 mm) and weighs 1.1 lbs (0.5 kg).

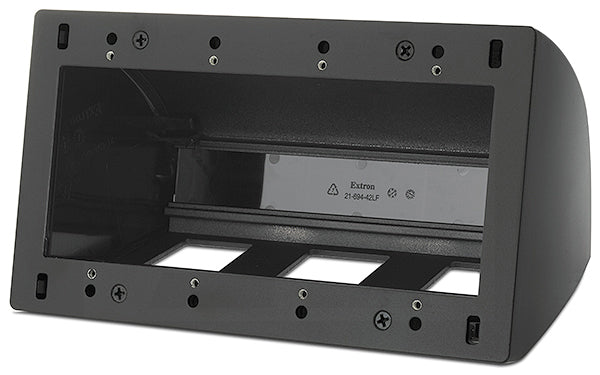

• Three 1.25" x 1.30" (32 x 33 mm) cable openings plus a 0.40" (10 mm) full-width rear slot.
• Placed loose, screwed down with the supplied #8 wood screws, or clamped to 0.38" to 2.00" tops.
• Cable strain relief and cover strips are supplied; this size uses the rear cover strip.
• Metal body, high impact plastic end caps and a #6-32 grounding stud in the base plate.

Where It Is Used

Executive boardroom tables, divisible training rooms, university teaching stations, courtroom counsel benches and control room consoles — positions where a single well-populated panel replaces several scattered ones and cutting into the furniture is not an option.

Specifications at a Glance

• Colour: black; the white version is part number 70-1286-04
• Front angle: 115 degrees
• Optional Table Clamp Kit: 70-1160-12 black, 70-1160-13 white
• Regulatory compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron SMB114, SMB-114, part number 70109704.
