Extron SMB 113 Three-Gang Surface Mount Box
- • Extron SMB 113 three-gang surface mount box, white
- • 115 degree front angle
- • CE, RoHS and WEEE compliant
- • Sales, replacement and exchange
- • Part# 70-1286-03 / 70128603
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

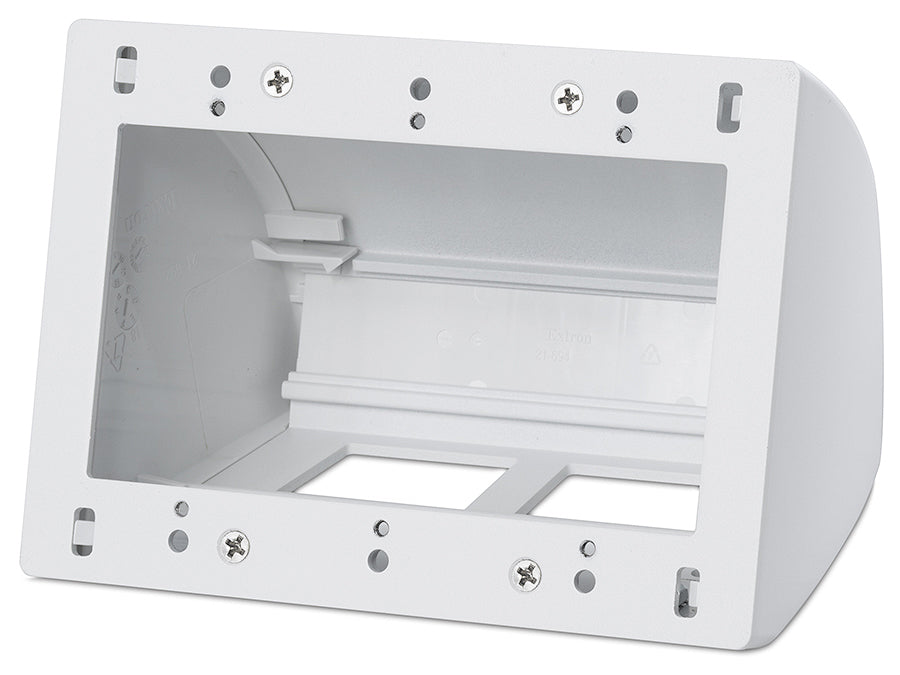

Extron SMB 113 (part number 70-1286-03, white) - the white finish of Extron's three-gang surface mount box for US gang-size wallplates.
Three gang positions cover most room designs in one enclosure: signal connectivity, a control panel and a spare or network plate. In white the box reads as part of a pale table or teaching wall rather than an add-on. Two base cable openings take the heavier bundle three plates imply, and the whole assembly still sits on top of the furniture, so nothing has to be routed or cut into the surface.
Key Capabilities
- Accepts three US gang-size Extron wallplates, AAP mounting frames or MediaLink controllers.
- Measures 6.53" W x 4.40" H x 4.35" D (166 x 112 x 111 mm) and weighs 0.9 lbs (0.4 kg).
- Two 1.25" x 1.30" (32 x 33 mm) cable openings plus a 0.40" (10 mm) full-width rear slot.
- Installs loose, with the supplied #8 wood screws, or with the optional clamp kit on 0.38" to 2.00" tops.
- Cable strain relief and cover strips are supplied; this size uses the rear cover strip.
- Metal body, high impact plastic end caps and a #6-32 grounding stud in the base plate.
Where It Is Used
Light-finish boardroom and training tables, university lecterns and active-learning benches, courtroom positions, library and study spaces, and healthcare rooms where a full connection panel is required on a surface that cannot be modified.
Specifications at a Glance
- Colour: white; the black version is part number 70-1097-03
- Front angle: 115 degrees
- Optional Table Clamp Kit: 70-1160-13 white, 70-1160-12 black
- Regulatory compliance: CE, RoHS, WEEE
- Warranty: 3 years parts and labor
Frequently asked questions about the Extron SMB 113 Three-Gang Surface Mount Box White
Does Ampronix sell the Extron SMB 113 Three-Gang Surface Mount Box White?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SMB 113 Three-Gang Surface Mount Box White (70-1286-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SMB 113 Three-Gang Surface Mount Box White?
Yes. Ampronix provides sales, replacement and exchange for the Extron SMB 113 Three-Gang Surface Mount Box White. Call Ampronix for a quote.
Is the Extron SMB 113 Three-Gang Surface Mount Box White listed under other names?
Yes. The Extron SMB 113 Three-Gang Surface Mount Box White is also referenced as Extron SMB113, SMB-113, part number 70128603.
What are the key features of the Extron SMB 113 Three-Gang Surface Mount Box White?
Key points: Accepts three US gang-size Extron wallplates, AAP mounting frames or MediaLink controllers; Measures 6.53" W x 4.40" H x 4.35" D (166 x 112 x 111 mm) and weighs 0.9 lbs (0.4 kg); Two 1.25" x 1.30" (32 x 33 mm) cable openings plus a 0.40" (10 mm) full-width rear slot; Installs loose, with the supplied #8 wood screws, or with the optional clamp kit on 0.38" to 2.00" tops. Call Ampronix to confirm details for your application.
Also referenced as Extron SMB113, SMB-113, part number 70128603.
