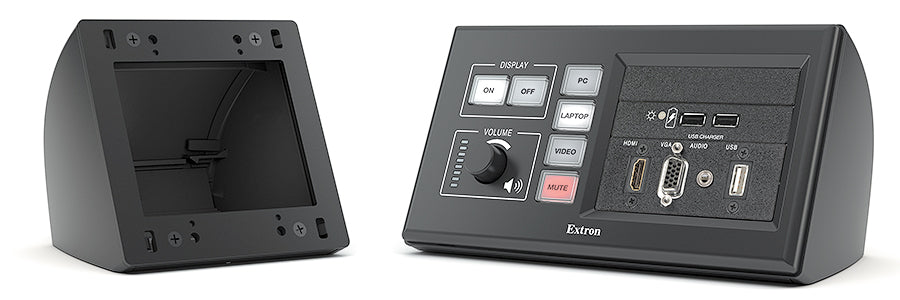

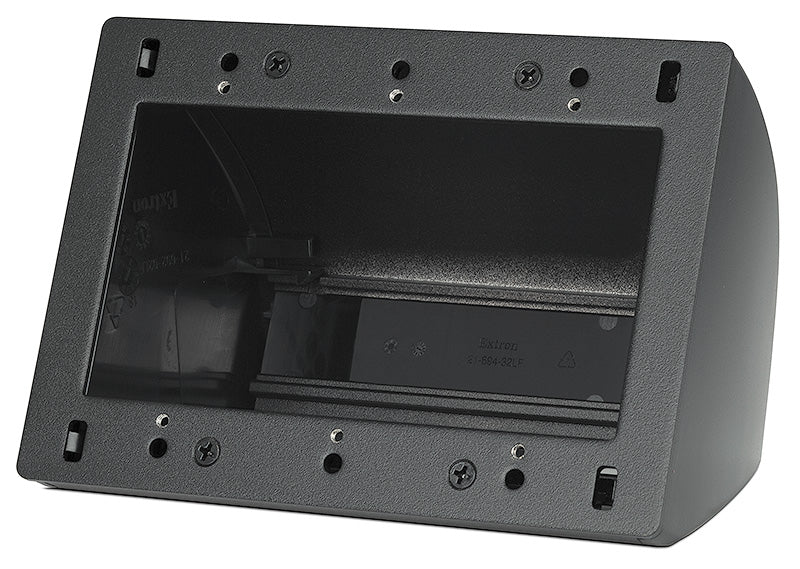

Extron SMB 113 (part number 70-1097-03, black) — a three-gang surface mount box for tables that need connectivity, control and power plates in one place.

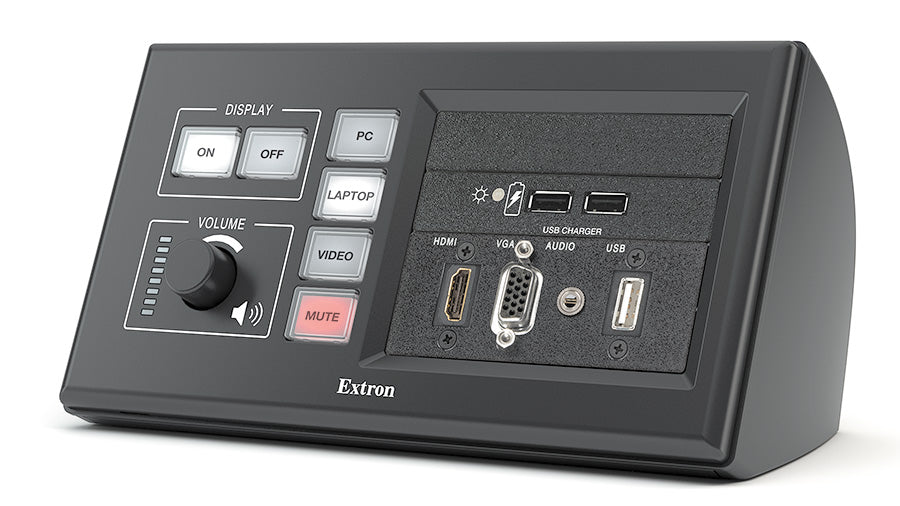

At three gangs the box stops being a single-purpose connection point and becomes a small AV station: video and audio inputs on one plate, a control panel on another, network or a blank spare on the third. Two cable openings in the base handle the extra bundle, and the enclosure still mounts entirely above the surface, so the table never has to be cut. The 115 degree face keeps every connector accessible from a seated position.

Key Capabilities

• Holds three US gang-size Extron wallplates, AAP mounting frames or MediaLink controllers.
• Enclosure measures 6.53" W x 4.40" H x 4.35" D (166 x 112 x 111 mm) at 0.9 lbs (0.4 kg).
• Two 1.25" x 1.30" (32 x 33 mm) cable openings plus a full-width 0.40" (10 mm) rear slot.
• Free-standing, wood-screwed or clamped to tables between 0.38" and 2.00" thick.
• Supplied with cable strain relief and cover strips; a rear cover strip is used on this size.
• Metal body, high impact plastic end caps and a #6-32 grounding stud in the base plate.

Where It Is Used

Conference and boardroom tables, university teaching stations, courtroom counsel and clerk positions, control room desks and clinical review workstations — anywhere a full connection panel is needed and cutting the furniture is off the table.

Specifications at a Glance

• Colour: black; the white version is part number 70-1286-03
• Front angle: 115 degrees
• Optional Table Clamp Kit: 70-1160-12 black, 70-1160-13 white
• Regulatory compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron SMB113, SMB-113, part number 70109703.
