Extron SMB 112 Two-Gang Surface Mount Box
- • Extron SMB 112 two-gang surface mount box, white
- • 115 degree front angle
- • CE, RoHS and WEEE compliant
- • Sales, replacement and exchange
- • Part# 70-1286-02 / 70128602
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

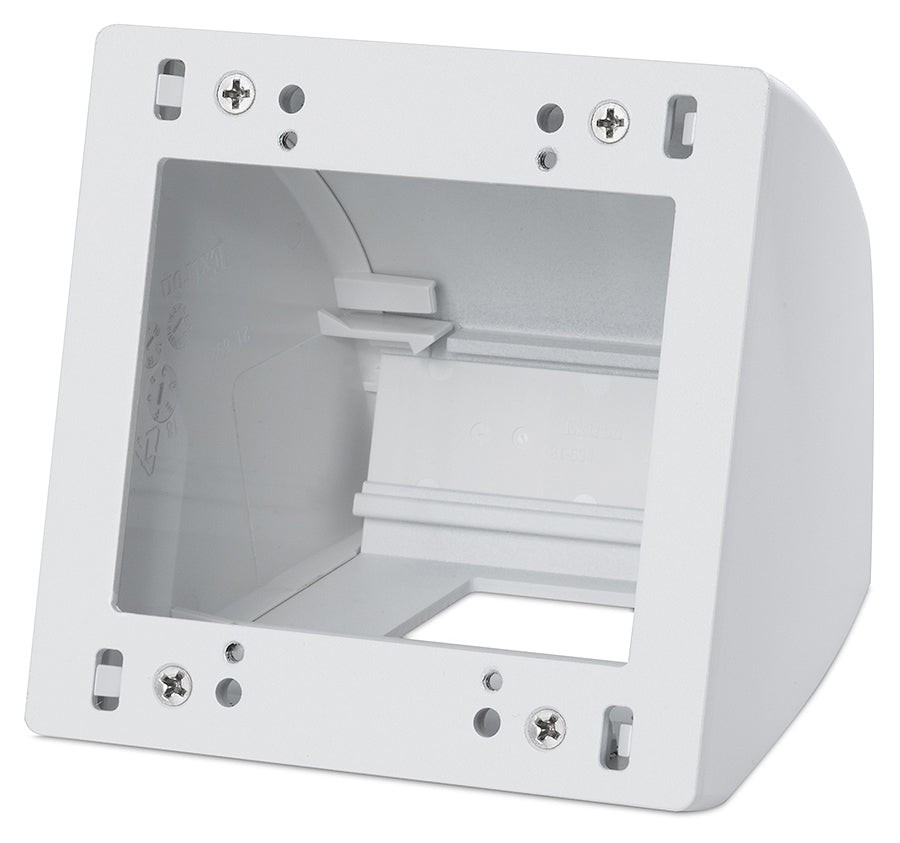

Extron SMB 112 (part number 70-1286-02, white) - the white finish of Extron's two-gang surface mount box for US gang-size wallplates.
Specify white when the enclosure has to blend into pale laminate, light joinery or a painted teaching wall rather than sit as a dark block on the surface. The mechanics are identical to the black version: two gang positions above the table, a 115 degree angled face so plugs meet the connectors squarely, and no requirement to cut the furniture at all. Installers reach for it in leased rooms and in refurbishments where the table cannot be modified.
Key Capabilities

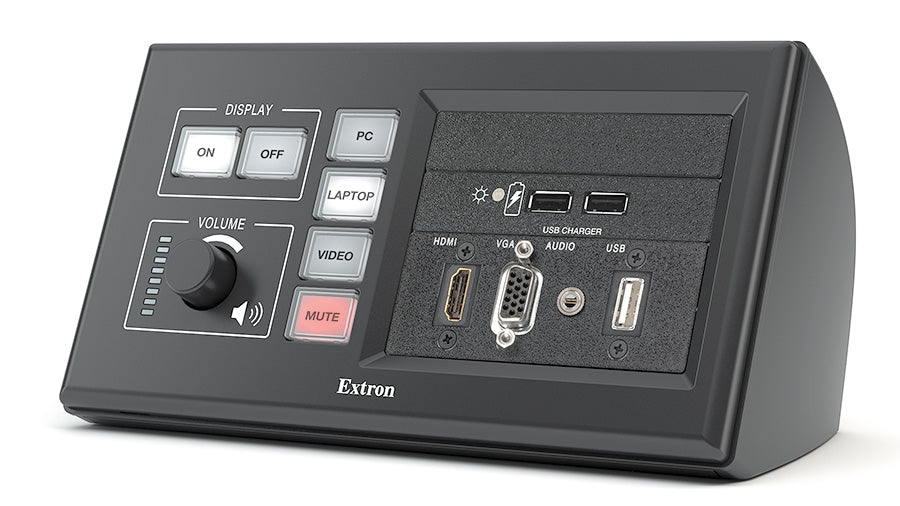

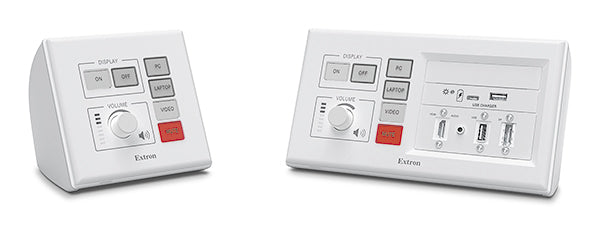

- Accepts two US gang-size Extron wallplates, AAP mounting frames or MediaLink controllers.
- Enclosure measures 4.72" W x 4.40" H x 4.35" D (120 x 112 x 111 mm) at 0.7 lbs (0.4 kg).
- A 1.25" x 1.30" (32 x 33 mm) cable opening and a 0.40" (10 mm) rear slot spanning the width.
- Placed loose, fixed with the supplied #8 wood screws, or clamped to tables 0.38" to 2.00" thick.
- Metal body, high impact plastic end caps and a #6-32 grounding stud in the base plate.
- Two-gang and one-gang models skip the rear cover strip that wider SMB boxes need.
Where It Is Used
Light-finish meeting tables, classroom and lab benches, reception counters, library study desks and healthcare workstations. Also common on mobile carts and flexible furniture, where the clamp kit lets the box be relocated without leaving a hole behind.
Specifications at a Glance

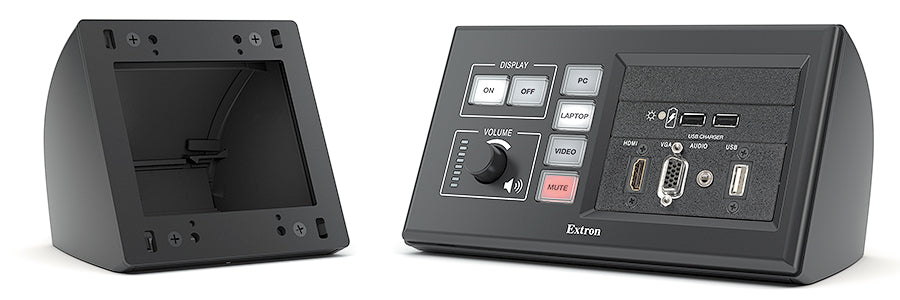

- Colour: white; the black version is part number 70-1097-02
- Front angle: 115 degrees
- Optional Table Clamp Kit: 70-1160-13 white, 70-1160-12 black
- Regulatory compliance: CE, RoHS, WEEE
- Warranty: 3 years parts and labor
Frequently asked questions about the Extron SMB 112 Two-Gang Surface Mount Box White
Does Ampronix sell the Extron SMB 112 Two-Gang Surface Mount Box White?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SMB 112 Two-Gang Surface Mount Box White (70-1286-02). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SMB 112 Two-Gang Surface Mount Box White?
Yes. Ampronix provides sales, replacement and exchange for the Extron SMB 112 Two-Gang Surface Mount Box White. Call Ampronix for a quote.
Is the Extron SMB 112 Two-Gang Surface Mount Box White listed under other names?
Yes. The Extron SMB 112 Two-Gang Surface Mount Box White is also referenced as Extron SMB112, SMB-112, part number 70128602.
What are the key features of the Extron SMB 112 Two-Gang Surface Mount Box White?
Key points: Accepts two US gang-size Extron wallplates, AAP mounting frames or MediaLink controllers; Enclosure measures 4.72" W x 4.40" H x 4.35" D (120 x 112 x 111 mm) at 0.7 lbs (0.4 kg); A 1.25" x 1.30" (32 x 33 mm) cable opening and a 0.40" (10 mm) rear slot spanning the width; Placed loose, fixed with the supplied #8 wood screws, or clamped to tables 0.38" to 2.00" thick. Call Ampronix to confirm details for your application.
Also referenced as Extron SMB112, SMB-112, part number 70128602.
