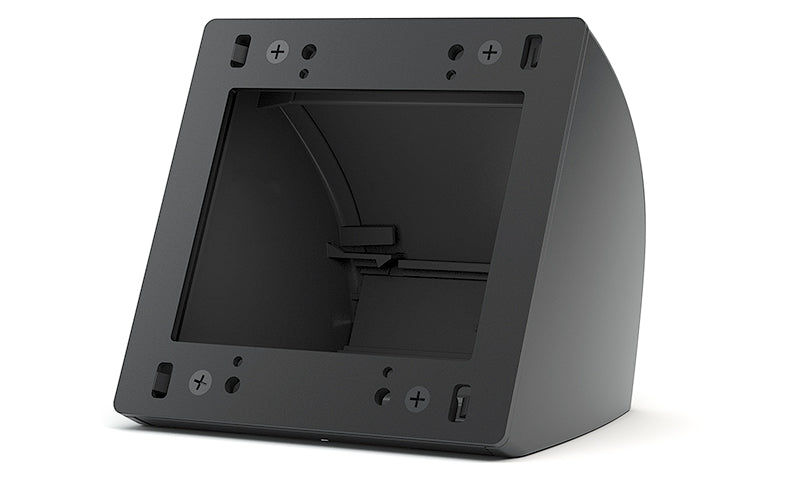

Extron SMB 112 (part number 70-1097-02, black) — a two-gang surface mount box that carries a pair of US gang-size wallplates on top of the furniture.

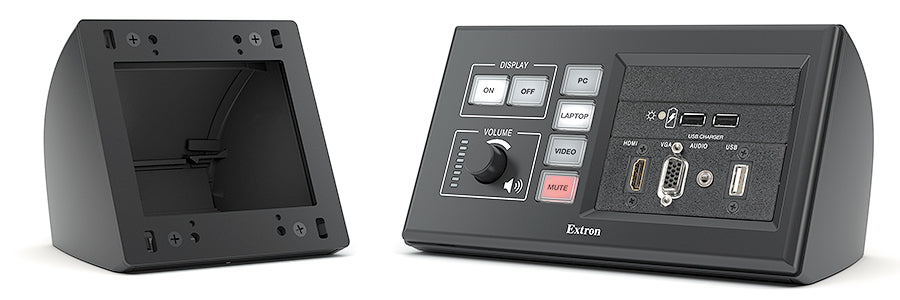

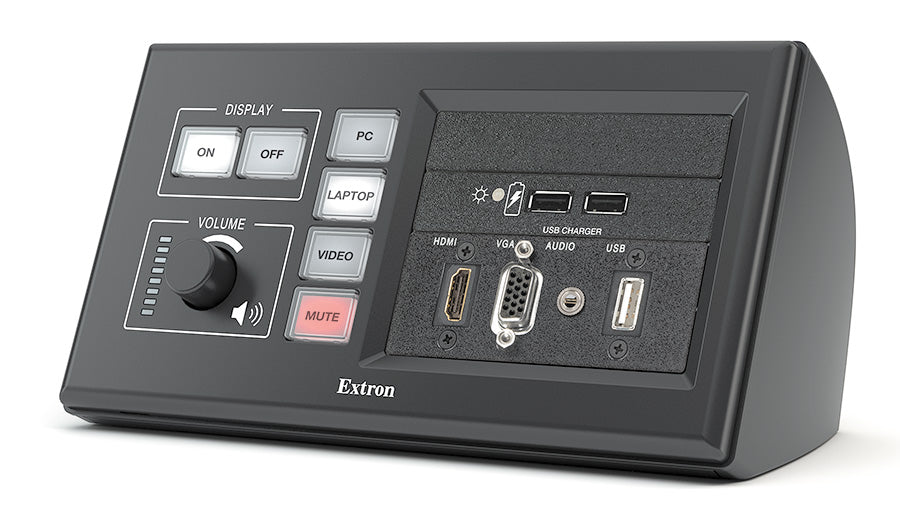

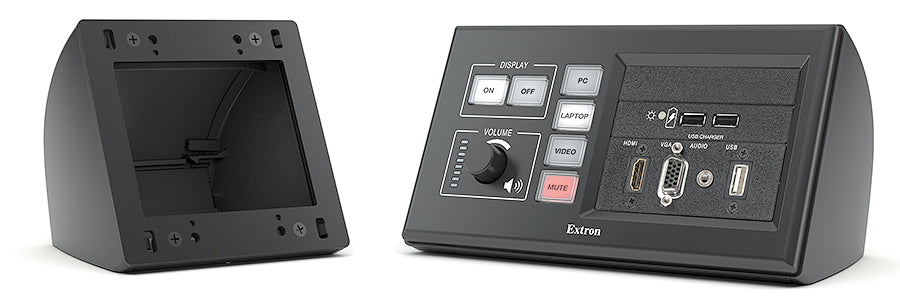

Two gangs is the size most rooms actually need: one plate for video and audio connectivity, a second for control or network. The SMB 112 holds both above the work surface in a metal enclosure whose 115 degree front face angles the connectors toward the user. No cut-out is required in the table, which makes it the practical option for leased rooms, hard-surface tops and refurbishment work.

Key Capabilities

• Holds two US gang-size Extron wallplates, AAP mounting frames or MediaLink controllers.
• Measures 4.72" W x 4.40" H x 4.35" D (120 x 112 x 111 mm) and weighs 0.7 lbs (0.4 kg).
• One 1.25" x 1.30" (32 x 33 mm) cable opening plus a 0.40" (10 mm) rear slot across the full width.
• Sits loose, screws down with the supplied #8 wood screws, or clamps to tables 0.38" to 2.00" thick.
• Metal body with high impact plastic end caps and a #6-32 grounding stud in the base plate.
• Like the SMB 111, this two-gang model does not require the rear cover strip.

Where It Is Used

Boardroom and conference tables, classroom teaching walls, laboratory benches, courtroom counsel positions and clinical review desks where video, audio, control and network plates need to live side by side without cutting the furniture.

Specifications at a Glance

• Colour: black; the white version is part number 70-1286-02
• Front angle: 115 degrees
• Optional Table Clamp Kit: 70-1160-12 black, 70-1160-13 white
• Regulatory compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron SMB112, SMB-112, part number 70109702.
