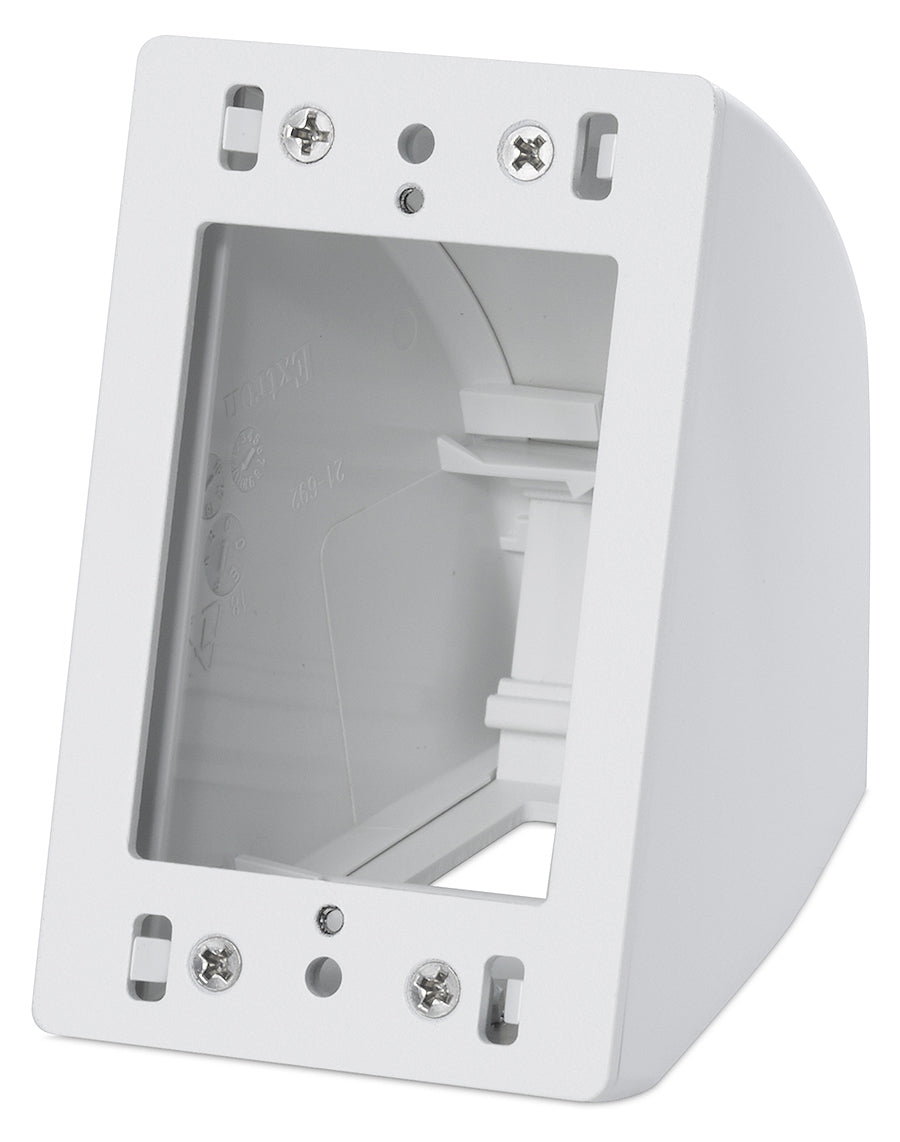

Extron SMB 111 (part number 70-1286-01, white) — the white finish of Extron's one-gang surface mount box for US gang-size wallplates.

White is the finish specified when the box has to disappear against pale laminate, painted joinery or a light-toned classroom bench. Everything else matches the black version: a metal enclosure with a 115 degree front face that carries one gang-size Extron plate above the work surface, so no hole has to be cut in the furniture. That makes it the usual answer for leased spaces, stone and glass tops, and rooms that are being upgraded rather than rebuilt.

Key Capabilities

• Accepts one US gang-size Extron wallplate, AAP mounting frame or MediaLink controller.
• Measures 2.90" W x 4.40" H x 4.35" D (74 x 112 x 111 mm) and weighs 0.5 lbs (0.3 kg).
• One 1.00" x 1.30" (25 x 33 mm) cable opening plus a 0.40" (10 mm) rear slot running the full width.
• Free-standing, wood-screw or clamped installation for table thicknesses from 0.38" to 2.00".
• Metal body, high impact plastic end caps and a #6-32 grounding stud in the base plate.
• The one-gang and two-gang models do not need the rear cover strip used on wider SMB boxes.

Where It Is Used

Light-finish conference tables, teaching walls and lab benches, reception desks, library carrels and healthcare workstations. It is also common on mobile carts, where a permanent cut-in enclosure would be impractical and the box can simply be clamped in place.

Specifications at a Glance

• Colour: white; the black version is part number 70-1097-01
• Front angle: 115 degrees
• Optional Table Clamp Kit: 70-1160-13 white, 70-1160-12 black
• Regulatory compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron SMB111, SMB-111, part number 70128601.
