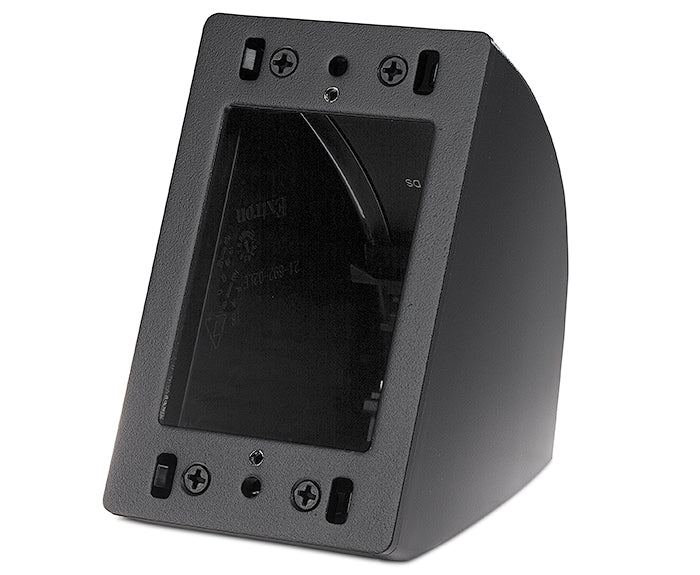

Extron SMB 111 (part number 70-1097-01, black) — a one-gang surface mount box that puts a US gang-size wallplate on top of a table instead of inside it.

Cutting into furniture is not always an option. Leased rooms, stone or glass tops, historic buildings and mobile carts all rule it out. The SMB 111 solves that by presenting the plate above the surface in a metal enclosure angled at 115 degrees, so connectors face the user rather than the ceiling. It can simply sit on the table, be screwed down with the supplied wood screws, or be clamped with the optional Table Clamp Kit.

Key Capabilities

• Holds one US gang-size Extron wallplate, AAP mounting frame or MediaLink controller.
• Compact footprint of 2.90" W x 4.40" H x 4.35" D (74 x 112 x 111 mm) and 0.5 lbs (0.3 kg).
• A single 1.00" x 1.30" (25 x 33 mm) cable opening plus a 0.40" (10 mm) rear slot across the full width.
• Three mounting options: free-standing, wood-screwed, or clamped for table thicknesses of 0.38" to 2.00".
• Metal body with high impact plastic end caps and a #6-32 grounding stud in the base.
• As a one-gang box it does not need the rear cover strip that the larger SMB models use.

Where It Is Used

Conference and huddle tables, classroom and lab benches, lecterns, mobile AV carts, clinical review desks and any refurbishment where a cut-in enclosure is impossible or unwelcome. The black finish suits dark laminates and most furniture in corporate rooms.

Specifications at a Glance

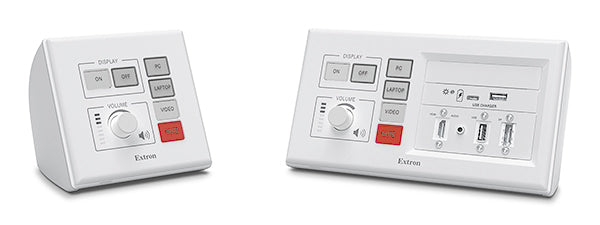

• Colour: black; the white version is part number 70-1286-01
• Front angle: 115 degrees
• Optional Table Clamp Kit: 70-1160-12 black, 70-1160-13 white
• Regulatory compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron SMB111, SMB-111, part number 70109701.
