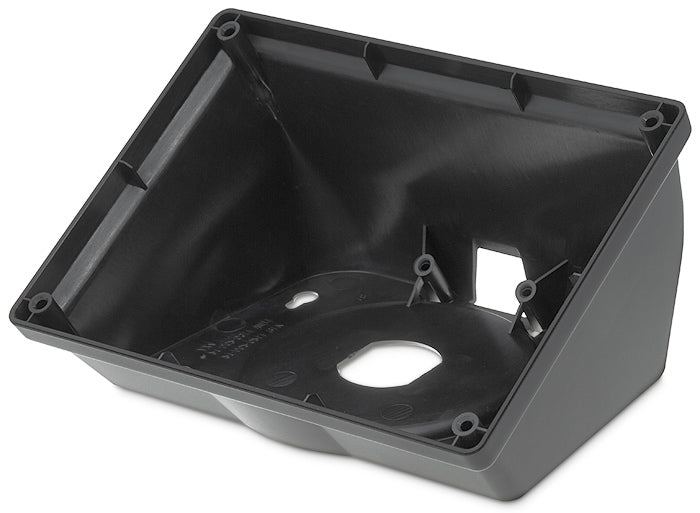

The Extron SMB 1 (70-1008-02) is a surface mount box that houses a TouchLink touchpanel at a 30-degree front angle for comfortable viewing when mounted to furniture, a lectern, or a tabletop. Its plastic enclosure measures 3.45" H x 6.31" W x 4.81" D.

Setting a touchpanel flat on furniture leaves it hard to read and awkward to operate, while an unmanaged cable run looks unfinished and can pull loose over time. The SMB 1 solves both problems with a pre-angled plastic enclosure and dedicated cable routing openings on the back and bottom, plus lance punches that keep cable inside the box tidy and strain-relieved from repeated handling.

Key Capabilities

• Surface mount box for TouchLink touchpanels
• Mounts to furniture, lecterns, and tabletops
• 30° front angle for comfortable viewing
• 3.45" H x 6.31" W x 4.81" D plastic enclosure
• 4 furniture mounting holes plus 2 cable lance punches

Where It Is Used

Integrators install the SMB 1 on lecterns, credenzas, and conference tables where a touchpanel needs a dedicated angled enclosure rather than a flush in-wall mount, giving presenters a comfortable operating angle without custom millwork. Because it mounts with four screws directly to the furniture surface, it works equally well in new installs and as a retrofit on existing tables and podiums.

Specifications at a Glance

• Mounting: furniture, lectern, or tabletop
• Enclosure: 3.45" H x 6.31" W x 4.81" D, plastic
• Front angle: 30° from horizontal
• Product weight: 0.25 lb (0.11 kg)

Also referenced as SMB1, SMB-1, part number 70100802.
