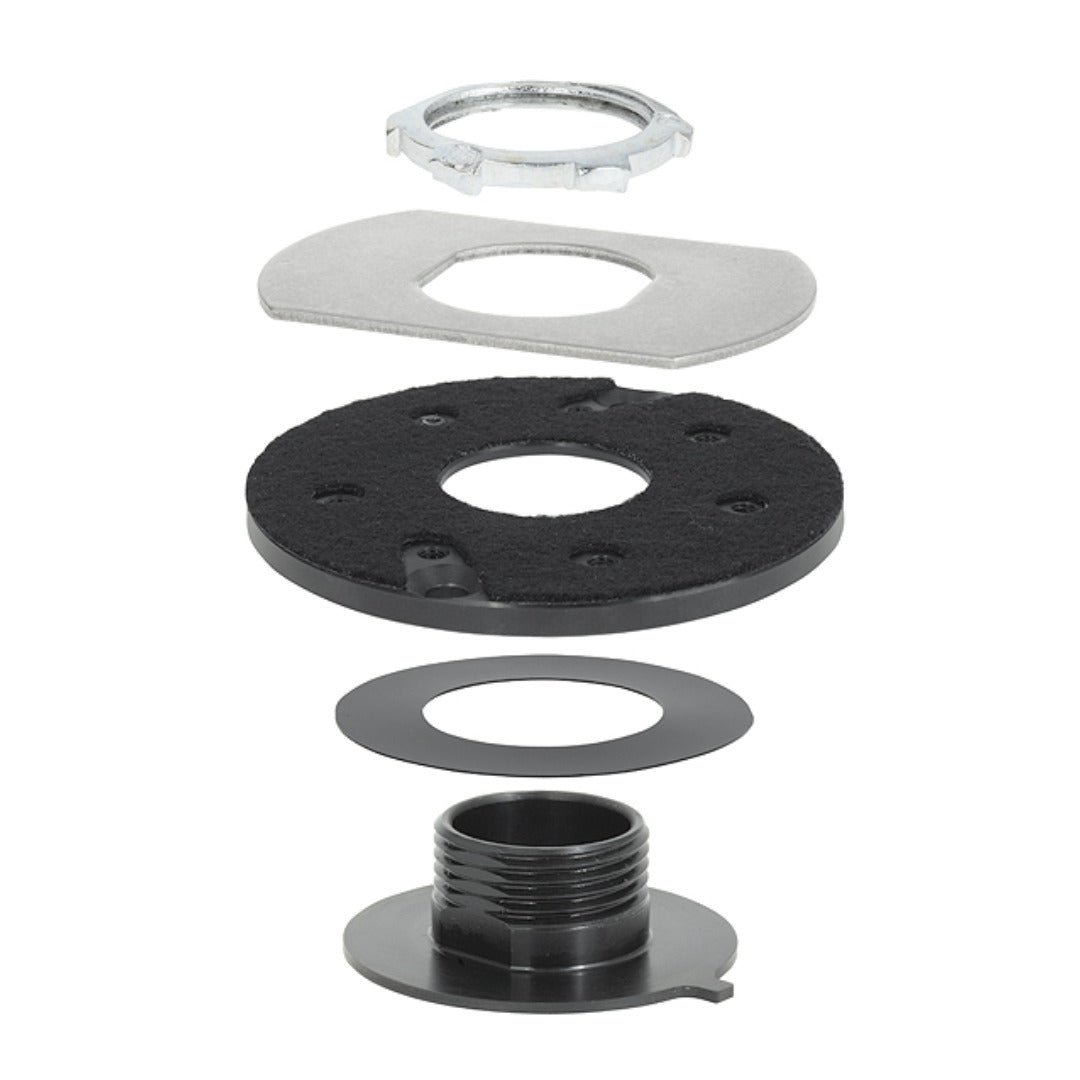

The Extron SMA-1 (70-747-01) is a compact swivel mount adapter that lets a flat-surface-mounted touchpanel rotate up to ±180° from its installed position. It is constructed of durable steel and measures just 0.7" H x 3.0" in diameter, adding minimal bulk to whatever surface it is mounted on.

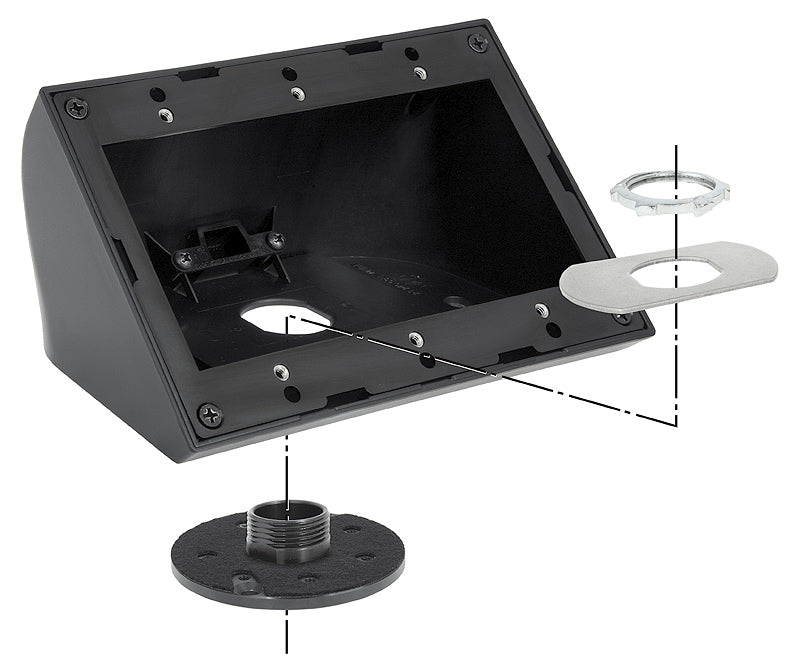

A touchpanel fixed permanently to a table or lectern top cannot be angled toward different users during a meeting, forcing everyone to crowd around a single fixed position or reach awkwardly across the surface. The SMA-1 solves this with a low-profile swivel base that installers secure to the surface with #8 wood screws or #10 machine screws through its two mounting holes, letting the touchpanel pivot freely once mounted.

Key Capabilities

• Swivel mount adapter rotates ±180° from installed position
• Flat surface mountable to furniture
• Steel construction
• Compact 0.7" H x 3.0" diameter footprint
• Product weight just 0.1 lb

Where It Is Used

Integrators routinely install the SMA-1 on conference tables, lecterns and podiums where a touchpanel needs to swivel toward whichever presenter or operator is using it, without the bulk of a full articulating arm. Its small footprint and steel build keep the mount unobtrusive on furniture where a larger bracket would look out of place or interfere with other nearby equipment.

Specifications at a Glance

• Adjustment: rotates ±180° from installed position
• Dimensions: 0.7" H x 3.0" diameter, steel
• Product weight: 0.1 lb (<0.1 kg)
• Mounting: flat surface, furniture mount

Also referenced as SMA1, SMA-1, part number 7074701.
