Details

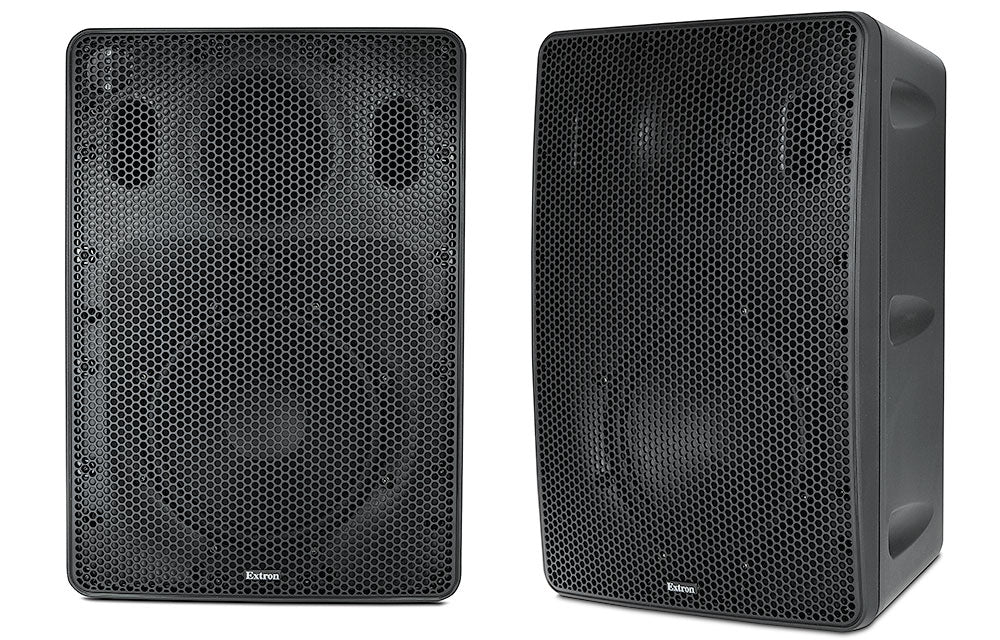

Extron SM 28T (part number 60-1309-12) — a two-way surface mount speaker pair finished in black, built for 70V or 100V constant-voltage distribution as well as 8 ohm direct.

The SM 28T carries an 8-inch long-throw woofer with dual tuned bass reflex ports and a 1.1-inch silk dome tweeter in a molded plastic trapezoidal enclosure. A five-position rotary tap selector reaches up to 64 W per speaker and is adjustable through the front grille, so a tech does not need to pull the speaker off the wall to change taps. Like the rest of the SpeedMount line, the mounting plate and cable termination can be completed by a low-voltage contractor during rough-in, with the speaker added later by the AV integrator.

Key Capabilities

Five power taps up to 64 W for 70 V or 100 V distributed audio
90 W continuous pink noise, 180 W continuous program power handling per pair
Frequency range of 59 Hz to 22 kHz (-10 dB, full space)
Grille-accessible tap selector simplifies large-scale zone tuning
Included 0° mounting plate plus 10° mounting adapter for angled aiming

Where It Is Used

The SM 28T suits paging and background music zones in classrooms, retail spaces, and multi-room facilities where several speakers share a single 70V or 100V amplifier run and individual level control per zone is needed.

Specifications at a Glance

8-inch woofer, 1.1-inch silk dome tweeter, 8 ohm direct or 70V/100V operation
2.0 kHz crossover frequency
16.50" H x 11.50" W x 7.80" D with 0° mounting plate attached
12.8 lbs per speaker with mounting plate; 33 lbs shipping weight per pair
5-year parts and labor warranty

Also referenced as Extron SM28T, SM-28T, part number 601309-12.

Specifications

Part Number: 60-1309-12

Manufacturer: Extron

Model: SM 28T

Condition: New

Speaker Type: 2-way, full range, indoor surface mount speaker

Frequency Range: 59 Hz to 22 kHz, -10 dB, full space (per IEC 60268-5)

Frequency Response: 67 Hz to 17.5 kHz, +/- 3 dB full space

Power Capacity: 90 W (rms) continuous pink noise (per IEC 60268-5); 180 W (rms) continuous program

Rated Maximum Input Voltage (MIV): 25.1 V (78.9 W at 8 ohms) per AES2-2012

Maximum SPL: 108 dB, 1 m (based on MIV); 109 dB, 1 m (linear)

Nominal Sensitivity: 87 dB SPL, 1 W, 1 m, full space (per IEC 60268-5, 60 Hz to 20 kHz)

Nominal Coverage Angles: Horizontal: 105° (1-4 kHz, weighted 2-4 kHz); Vertical: 60° (1-4 kHz, weighted 2-4 kHz)

Nominal Impedance: 8 ohms

Crossover Frequency: 2.0 kHz

Rotary Switch Taps (SM 28T only): 70 V: 64 W, 32 W, 16 W, 8 W, Off, 8 ohms direct; 100 V: null, 64 W, 32 W, 16 W, Off, 8 ohms direct

Woofer: (1) 8" (203.2 mm) polypropylene cone

Tweeter: (1) 1.1" (28 mm) silk dome

Overload Protection: Full range power limiter protecting the tweeter, woofer, and crossover

Input Connector – Speaker: 2 recessed pins (mate to receptacles on mounting plates)

Input Connector – Mounting Plate: (1) Euro-style captive screw terminal block, 4 pole

Package: 2 speakers (1 pair) with mounting kit package

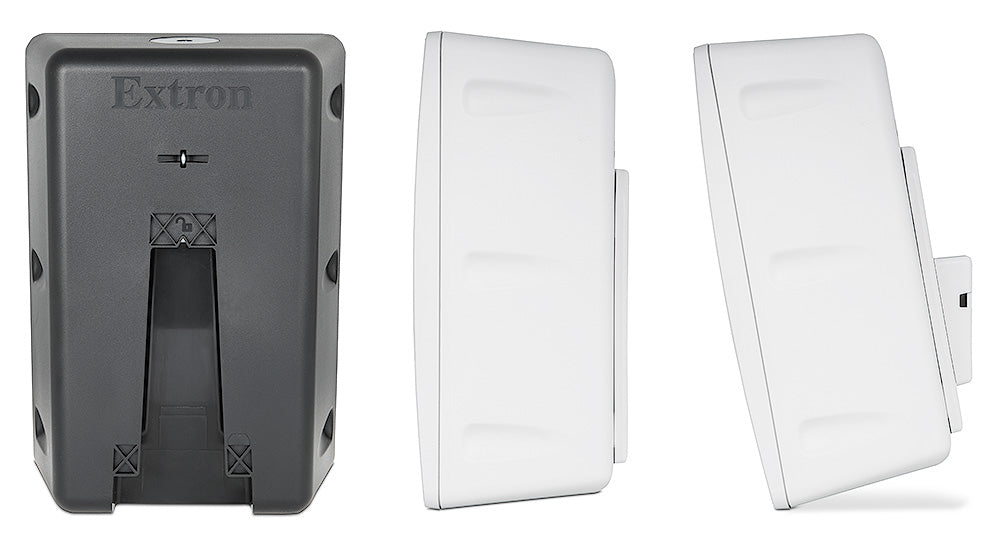

Mounting: Wall mountable with included mounting plates

0° Mounting Plate: Fixed 0°

10° Mounting Adapter: Fixed 10° up, down, left, or right, based on orientation of adapter

Yoke Mount (Optional): Up to 90° upward/downward or left/right, in 10° steps based on orientation of yoke

Enclosure Type: Plastic, trapezoidal, with molded grille and bass reflex ports

Enclosure Dimensions – Speaker Only: 16.50" H x 11.50" W x 7.28" D (41.91 x 29.21 x 18.49 cm)

Enclosure Dimensions – With 0° Mounting Plate: 16.50" H x 11.50" W x 7.80" D (41.91 x 29.21 x 19.81 cm)

Enclosure Dimensions – With 0° Plate and 10° Adapter: 16.78" H x 11.50" W x 10.16" D, vertical orientation angled 10° down (42.63 x 29.21 x 25.81 cm)

Product Weight – Speaker Only: 12.0 lbs (5.4 kg) each

Product Weight – With 0° Mounting Plate: 12.8 lbs (5.8 kg) each

Shipping Weight (Pair): 33 lbs (15 kg) with mounting kit package

Storage Temperature/Humidity: -40 to +158 °F (-40 to +70 °C), 10% to 90%, noncondensing

Operating Temperature/Humidity: +32 to +122 °F (0 to +50 °C), 10% to 90%, noncondensing

Safety/EMI: CE

Environmental: Complies with the appropriate requirements of RoHS and WEEE

Warranty: 5 years parts and labor

Diagram

Resources

Brochure | SM 28T 60-1309-12 | SM 28

Manual | SM 28T 60-1309-12 | Cleaning Instruction Card

Manual | SM 28T 60-1309-12 | SM 28 Setup Guide

Manual | SM 28T 60-1309-12 | SM 28 User Guide

Manual | SM 28T 60-1309-12 | SM 28 Yoke Mount Kit

Manual | SM 28T 60-1309-12 | SM 28 Yoke Mount Setup Guide

Manual | SM 28T 60-1309-12 | SMK P SM 26/28 Pivot Mount Kit Setup Guide

Specifications | SM 28T 60-1309-12 | SM 28, SM 28T

Panel Drawing | SM 28T 60-1309-12 | SM 28
