Extron SM 26T 6.5 in Surface Mount Speaker Pair - White 60-1308-13
Extron SM 26T 6.5 in Surface Mount Speaker Pair - White 60-1308-13

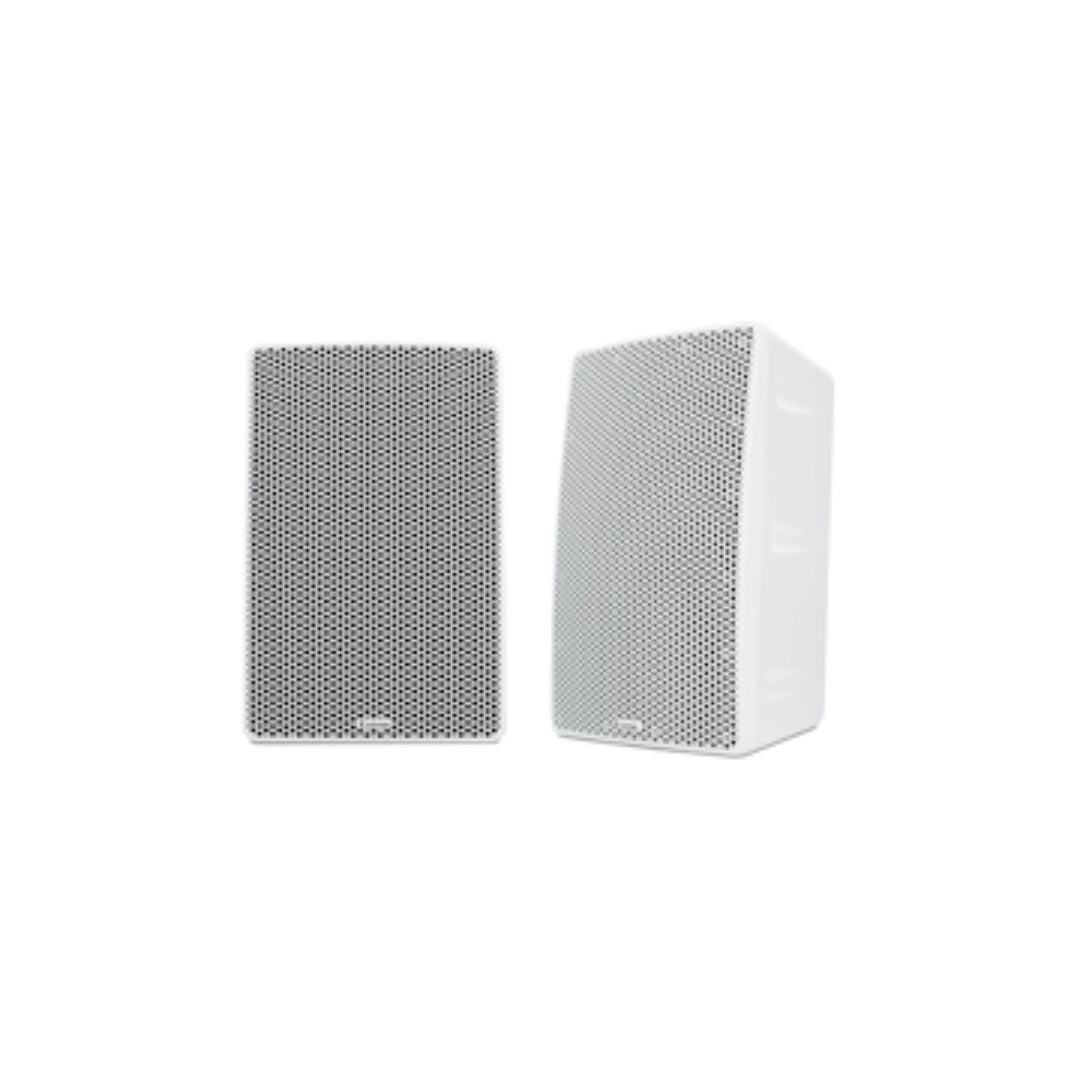

Extron SM 26T Surface Mount Speaker
- • Extron SM 26T 6.5 in surface mount speaker pair, white
- • 70V, 100V or direct 8 ohm taps
- • 87 dB sensitivity at 1 W, 1 m
- • Sales, replacement and exchange
- • Part# 60-1308-13 / 60130813
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron SM 26T (part number 60-1308-13, white) - a 6.5 in two-way surface mount speaker pair with 70V/100V transformer taps, built on Extron's patented SpeedMount mounting system.
The SM 26T is the transformer-equipped sibling of the SM 26, adding a six-position power tap selector that stays reachable through the grille after the speaker is installed, so a technician can set 70V, 100V, or straight 8 ohm operation without pulling the enclosure off the wall. The same SpeedMount system splits installation into two steps: a low-voltage contractor wires the mounting plate during rough-in, then the AV contractor slides the speaker into place later.
Key Capabilities
- 65 Hz to 19.2 kHz frequency range (-10 dB, full space).
- 60 W rms pink noise / 120 W rms continuous program per pair.
- Six-position 70V/100V tap selector or direct 8 ohm, adjustable through the grille.
- 115° horizontal / 55° vertical coverage from the 6.5 in woofer and 1.0 in tweeter.

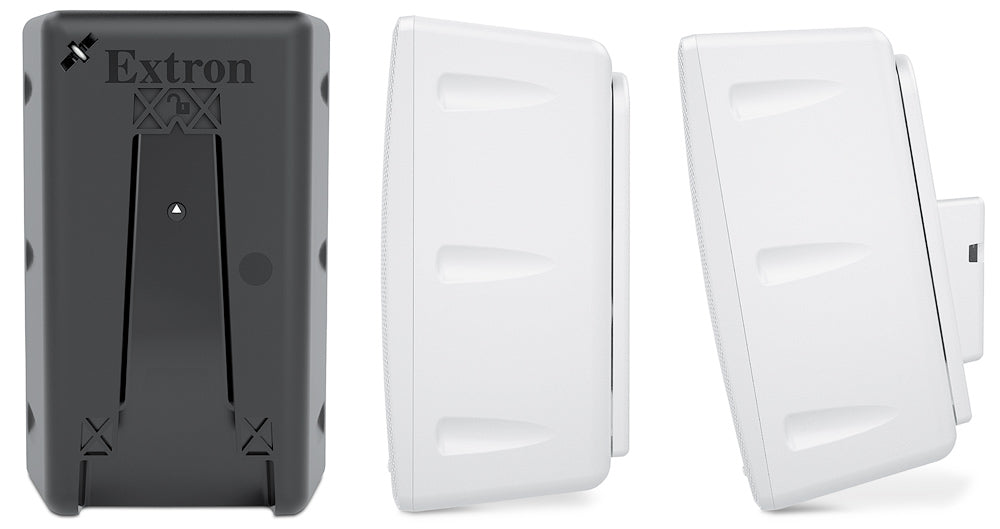

- Patented SpeedMount slide-on mounting separates rough-in from final install.
- Optional yoke or pivot mount for wider aiming angles.
Where It Is Used
Classrooms, conference rooms, exercise facilities and retail spaces already running a 70V/100V distributed audio loop that need a clean surface speaker and a division-of-labor install.
Specifications at a Glance
- Enclosure (speaker only): 12.98 in H x 8.45 in W x 6.45 in D
- Weight: 8.8 lbs each (9.7 lbs with 0° mounting plate)
- Nominal impedance: 8 ohms; sensitivity 87 dB SPL, 1 W / 1 m
- Taps: 70V (2-32 W), 100V (4-32 W), or direct 8 ohm
- Warranty: 5 years parts and labor
Frequently asked questions about the Extron SM 26T 6.5 in Surface Mount Speaker Pair - White
Does Ampronix sell the Extron SM 26T 6.5 in Surface Mount Speaker Pair - White?
Yes. Ampronix is an authorized Extron distributor and sells the Extron SM 26T 6.5 in Surface Mount Speaker Pair - White (60-1308-13). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron SM 26T 6.5 in Surface Mount Speaker Pair - White?
Yes. Ampronix provides sales, replacement and exchange for the Extron SM 26T 6.5 in Surface Mount Speaker Pair - White. Call Ampronix for a quote.
Is the Extron SM 26T 6.5 in Surface Mount Speaker Pair - White listed under other names?
Yes. The Extron SM 26T 6.5 in Surface Mount Speaker Pair - White is also referenced as Extron SM26T, SM-26T, part number 60130813.
What are the key features of the Extron SM 26T 6.5 in Surface Mount Speaker Pair - White?
Key points: 65 Hz to 19.2 kHz frequency range (-10 dB, full space); 60 W rms pink noise / 120 W rms continuous program per pair; Six-position 70V/100V tap selector or direct 8 ohm, adjustable through the grille; 115° horizontal / 55° vertical coverage from the 6.5 in woofer and 1.0 in tweeter. Call Ampronix to confirm details for your application.
Also referenced as Extron SM26T, SM-26T, part number 60130813.
