Extron SM 26T 6.5 in Surface Mount Speaker Pair - Black 60-1308-12

Details

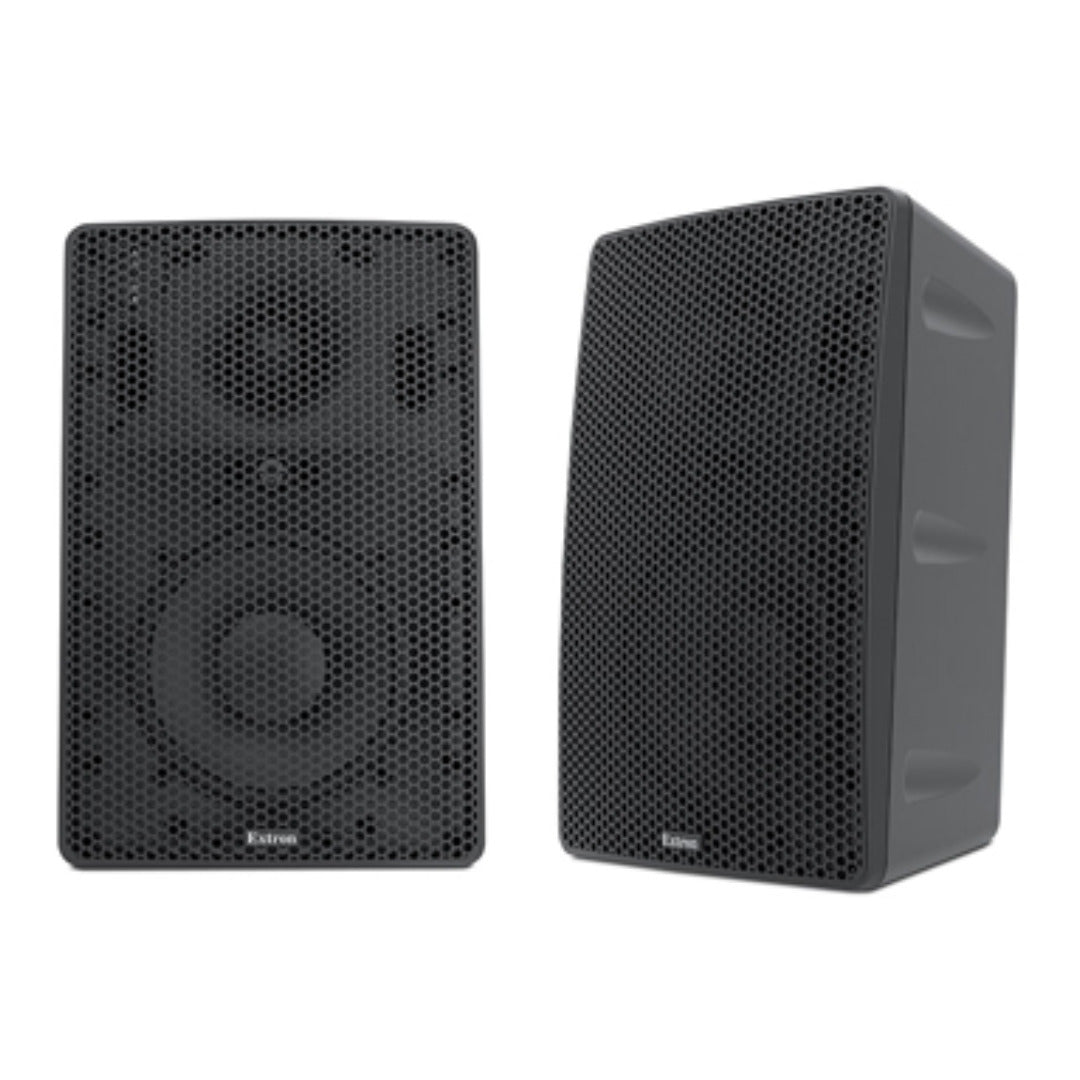

Extron SM 26T (part number 60-1308-12, black) — a 6.5 in two-way surface mount speaker pair with 70V/100V transformer taps, built on Extron's patented SpeedMount mounting system.

The SM 26T is the transformer-equipped sibling of the SM 26, adding a six-position power tap selector that stays reachable through the grille after the speaker is installed, so a technician can set 70V, 100V, or straight 8 ohm operation without pulling the enclosure off the wall. The same SpeedMount system splits installation into two steps: a low-voltage contractor wires the mounting plate during rough-in, then the AV contractor slides the speaker into place later.

Key Capabilities

65 Hz to 19.2 kHz frequency range (-10 dB, full space).
60 W rms pink noise / 120 W rms continuous program per pair.
Six-position 70V/100V tap selector or direct 8 ohm, adjustable through the grille.
115° horizontal / 55° vertical coverage from the 6.5 in woofer and 1.0 in tweeter.

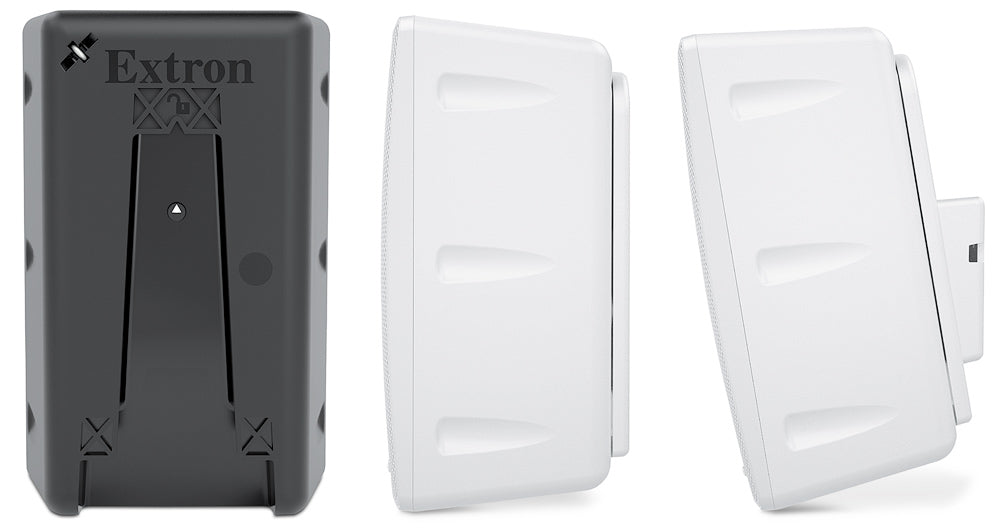

Patented SpeedMount slide-on mounting separates rough-in from final install.
Optional yoke or pivot mount for wider aiming angles.

Where It Is Used

Classrooms, conference rooms, exercise facilities and retail spaces already running a 70V/100V distributed audio loop that need a clean surface speaker and a division-of-labor install.

Specifications at a Glance

Enclosure (speaker only): 12.98 in H x 8.45 in W x 6.45 in D
Weight: 8.8 lbs each (9.7 lbs with 0° mounting plate)
Nominal impedance: 8 ohms; sensitivity 87 dB SPL, 1 W / 1 m
Taps: 70V (2-32 W), 100V (4-32 W), or direct 8 ohm
Warranty: 5 years parts and labor

Also referenced as Extron SM26T, SM-26T, part number 60130812.

Specifications

Part Number: 60-1308-12

Manufacturer: Extron

Model: SM 26T

Condition: New

Finish: Black

Speaker Type: 2-way, indoor surface mount speaker

Package: 2 speakers (1 pair) with mounting kit

Woofer: (1) 6.5" (165 mm) long-throw polypropylene cone with dual tuned bass reflex ports

Tweeter: (1) 1.0" (25 mm) silk dome

Frequency Range: 65 Hz to 19.2 kHz, -10 dB, full space

Power Capacity: 60 W (rms) continuous pink noise (per IEC 60268-5); 120 W (rms) continuous program

Nominal Sensitivity: 87 dB SPL, 1 W, 1 m, full space

Nominal Coverage Angles: Horizontal: 115° (1 kHz - 4 kHz, weighted 2 kHz - 4 kHz); Vertical: 55° (1 kHz - 4 kHz, weighted 2 kHz - 4 kHz)

Nominal Impedance: 8 ohms

Crossover Frequency: 2.7 kHz

Rotary Switch Taps (SM 26T only): 70 V: 32 W, 16 W, 8 W, 4 W, 2 W, 8 ohms direct; 100 V: null, 32 W, 16 W, 8 W, 4 W, 8 ohms direct

Overload Protection: Full range power limiter protecting the tweeter, woofer, and crossover

Input Connectors: Speaker: 2 recessed pins; Mounting plate: (1) 10 mm Euro-style captive screw terminal block, 4 pole

Mounting: Wall mountable with included mounting hardware or optional yoke or pivot mount. 0° mounting plate: fixed 0°. 10° mounting adapter: fixed 10° up, down, left, or right. Yoke mount (optional): up to 90°. Pivot mount (optional): up to 30°, 360° rotation

Enclosure Type: Plastic, trapezoidal, with molded grille and bass reflex ports

Enclosure Outer Dimensions, Speaker Only: 12.98" H x 8.45" W x 6.45" D (32.97 cm H x 21.46 cm W x 16.38 cm D)

Enclosure Outer Dimensions, With 0° Mounting Plate: 12.98" H x 8.45" W x 6.96" D (32.97 cm H x 21.46 cm W x 17.68 cm D)

Product Weight, Speaker Only: 8.8 lbs (4.0 kg) each

Product Weight, With 0° Mounting Plate: 9.7 lbs (4.4 kg) each

Ambient Temperature/Humidity: Storage: -40 to +158 °F / 10% to 90%, noncondensing. Operating: +32 to +122 °F / 10% to 90%, noncondensing

Regulatory Compliance, Safety: CE

Regulatory Compliance, Environmental: RoHS, WEEE

Warranty: 5 years parts and labor

Diagram

Resources

Brochure | SM 26T 60-1308-12 | SM 26 (sm_26_a3.pdf)

Brochure | SM 26T 60-1308-12 | SM 26 (SM-26_BR_A4_FR_RevA1.pdf)

Brochure | SM 26T 60-1308-12 | SM 26 (SM-26_BR_A4_SP_RevA1.pdf)

Brochure | SM 26T 60-1308-12 | SM 26 (SM-26_BR_A4_IT_RevA1.pdf)

Brochure | SM 26T 60-1308-12 | SM 26 (SM26_BR_A4_GE_RevA_LR.pdf)

Brochure | SM 26T 60-1308-12 | SM 26 (sm_26_REV_A_ch_ONLINE.pdf)

Brochure | SM 26T 60-1308-12 | SM 26 (SM-26_BR_A4_RU_RevA2.pdf)

Manual | SM 26T 60-1308-12 | Cleaning Instruction Card

Manual | SM 26T 60-1308-12 | SM 26 Setup Guide

Manual | SM 26T 60-1308-12 | SM 26 User Guide

Manual | SM 26T 60-1308-12 | SM 26 Yoke Mount Kit Setup Guide

Manual | SM 26T 60-1308-12 | SMK P SM 26/28 Pivot Mount Kit Setup Guide

Specifications | SM 26T 60-1308-12 | SM 26, SM 26T

Panel Drawing | SM 26T 60-1308-12 | SM 26
