Extron ShareLink Pro 1100 Wired & Wireless Presentation System
- • Extron ShareLink Pro 1100 wired and wireless system
- • 4K HDMI output (4096x2160), HDCP 2.4
- • 2 NICs, 10/100/1000Base-T Ethernet
- • Sales, replacement and exchange
- • Part# 60-1943-01 / 60194301
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

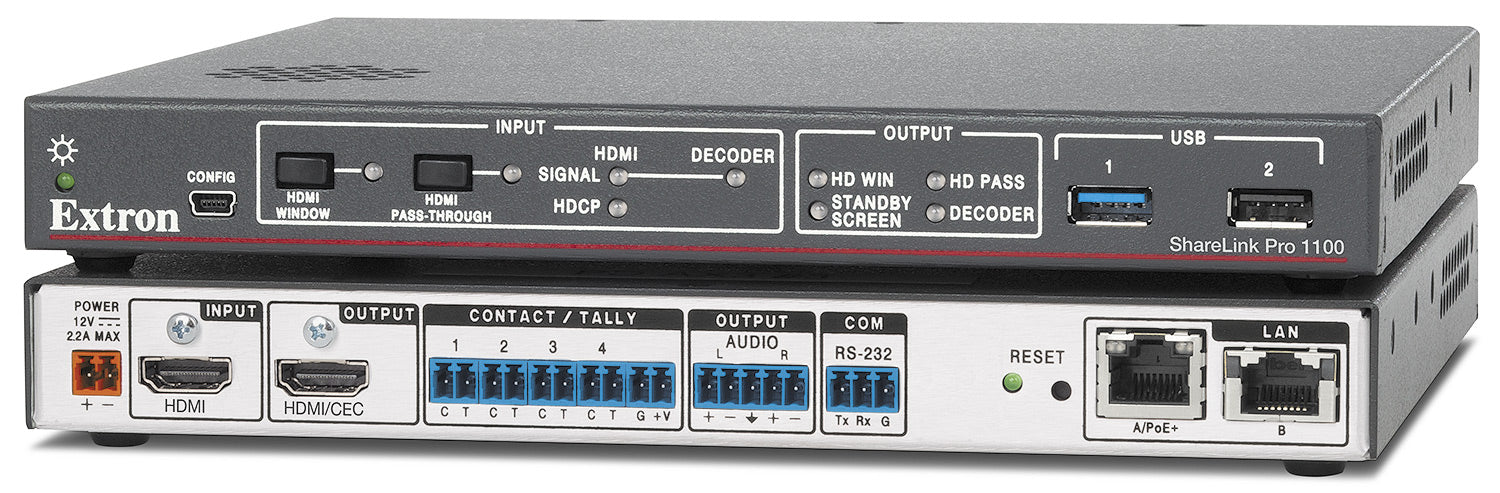

Extron ShareLink Pro 1100 (part number 60-1943-01) - a 4K wired and wireless presentation gateway for huddle rooms, boardrooms, and meeting spaces.
ShareLink Pro 1100 lets up to four sources display at once, mixing a wired HDMI input with wireless connections from Mac, Windows, iOS, and Android devices. The HDMI input doubles as a backup path when the wireless network is down and supports Show Me cables for one-touch source selection. Dual Gigabit Ethernet ports let integrators keep a private control network separate from guest Wi-Fi, and the unit runs on PoE+ so a local power supply is optional. Optional Extron LinkLicense upgrades (sold separately) add ConferenceShare, Digital Signage, and multi-unit streaming features to this same hardware.
Key Capabilities
- Displays up to four wired and wireless sources on screen at the same time
- HDMI output handles resolutions up to 4096x2160 for 4K displays
- Dual Gigabit Ethernet ports separate private and guest network traffic
- PoE+ powered (IEEE 802.3at), removing the need for a local power brick
- Collaboration and Moderator modes support both open and controlled sessions
- Compact 1.0" H x 8.75" W x 8.0" D half-rack metal enclosure weighing 1.8 lbs
Where It Is Used
Fits huddle spaces, boardrooms, and classroom collaboration areas that need wired and wireless users sharing the same display without swapping cables. Dual Ethernet and 128-bit content encryption make it a fit for organizations that keep guest device traffic off the internal network.
Specifications at a Glance
- 4K HDMI output (4096x2160), HDCP 2.4
- 2 NICs, 10/100/1000Base-T Ethernet
- Power: 12 VDC external supply or PoE+, 26.2 W device power draw over PoE+
- 3-year parts and labor warranty
Also referenced as Extron ShareLinkPro1100, ShareLink-Pro-1100, part number 60194301.
Frequently asked questions about the Extron ShareLink Pro 1100 Wired & Wireless Presentation System
Does Ampronix sell the Extron ShareLink Pro 1100 Wired & Wireless Presentation System?
Yes. Ampronix is an authorized Extron distributor and sells the Extron ShareLink Pro 1100 Wired & Wireless Presentation System (60-1943-01). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron ShareLink Pro 1100 Wired & Wireless Presentation System?
Yes. Ampronix provides sales, replacement and exchange for the Extron ShareLink Pro 1100 Wired & Wireless Presentation System. Call Ampronix for a quote.
What are the key features of the Extron ShareLink Pro 1100 Wired & Wireless Presentation System?
Key points: Displays up to four wired and wireless sources on screen at the same time; HDMI output handles resolutions up to 4096x2160 for 4K displays; Dual Gigabit Ethernet ports separate private and guest network traffic; PoE+ powered (IEEE 802.3at), removing the need for a local power brick. Call Ampronix to confirm details for your application.
Related: Extron products, Video Solutions.
